AL-KO T13-93 HDS-A Comfort - 127471 - Deck

Name: AL-KO T13-93 HDS-A Comfort - 127471 - Deck
SKU: AK127471_6-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-93 HDS-A Comfort - 127471 - Deck

Description

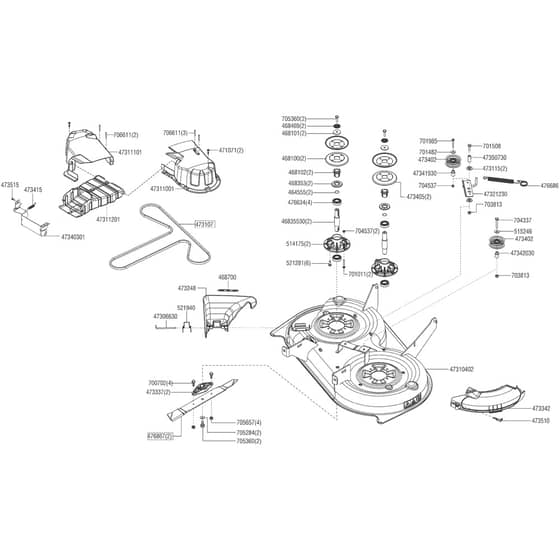

AL-KO T13-93 HDS-A Comfort - 127471 - Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
464555	AK464555 Available to backorder	Ak464555	£1.04 £0.87
468100	AK468100 Available to backorder	Pulley Half (140mm Dia)	£5.78 £4.82
468101	AK468101 Available to backorder	Ak468101	£2.02 £1.68
468102	AK468102 Available to backorder	Ak468102	£5.78 £4.82
468353	AK468353 Available to backorder	Ak468353	£1.70 £1.42
468469	AK468469 Available to backorder	Washer	£2.56 £2.13
468700	AK468700 Available to backorder	Decal - Deck Safety	£0.74 £0.62
471071	AK471071 Available to backorder	Screw M6x25	£0.84 £0.70
473107	AK473107 Available to backorder	Belt	£61.12 £50.93
473115	AK473115 Available to backorder	Ak473115	£2.54 £2.12

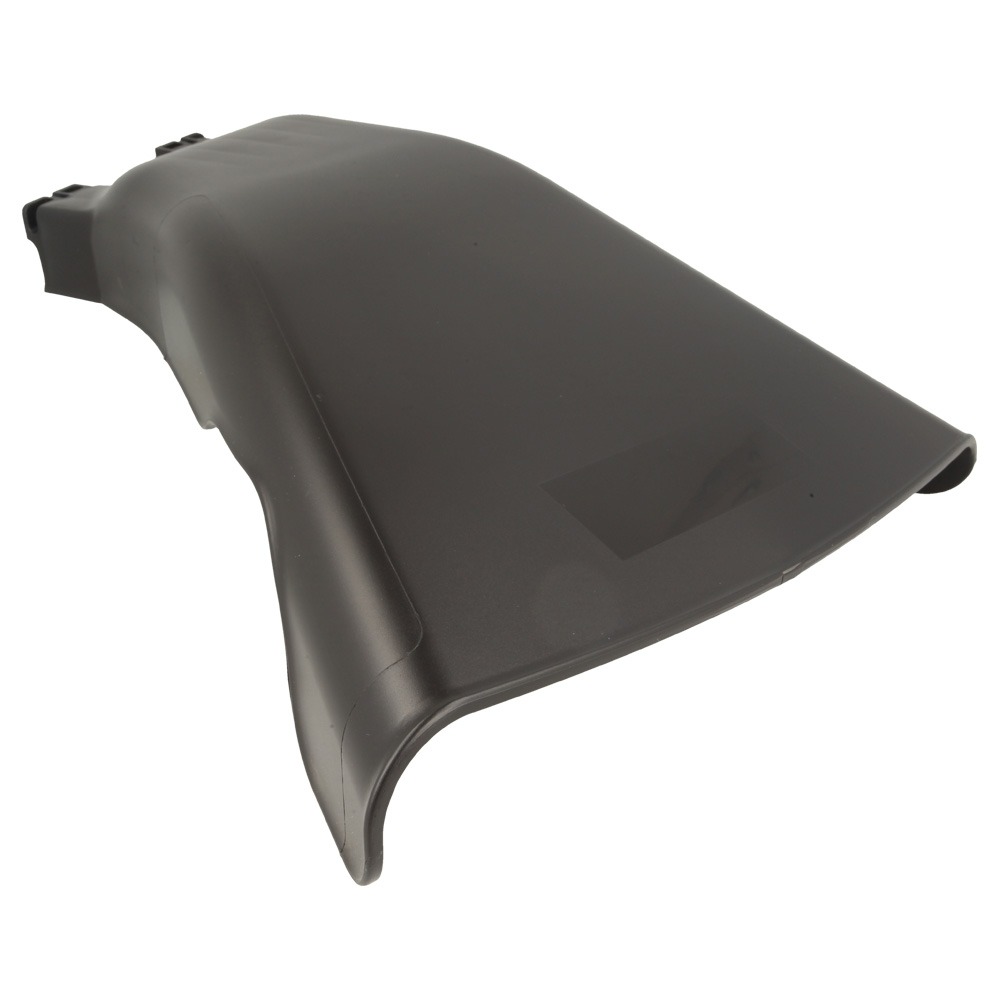

473248	AK473248 Available to backorder	Collector	£13.16 £10.97
473337	AK473337 In stock	Ak473337	£24.53 £20.44

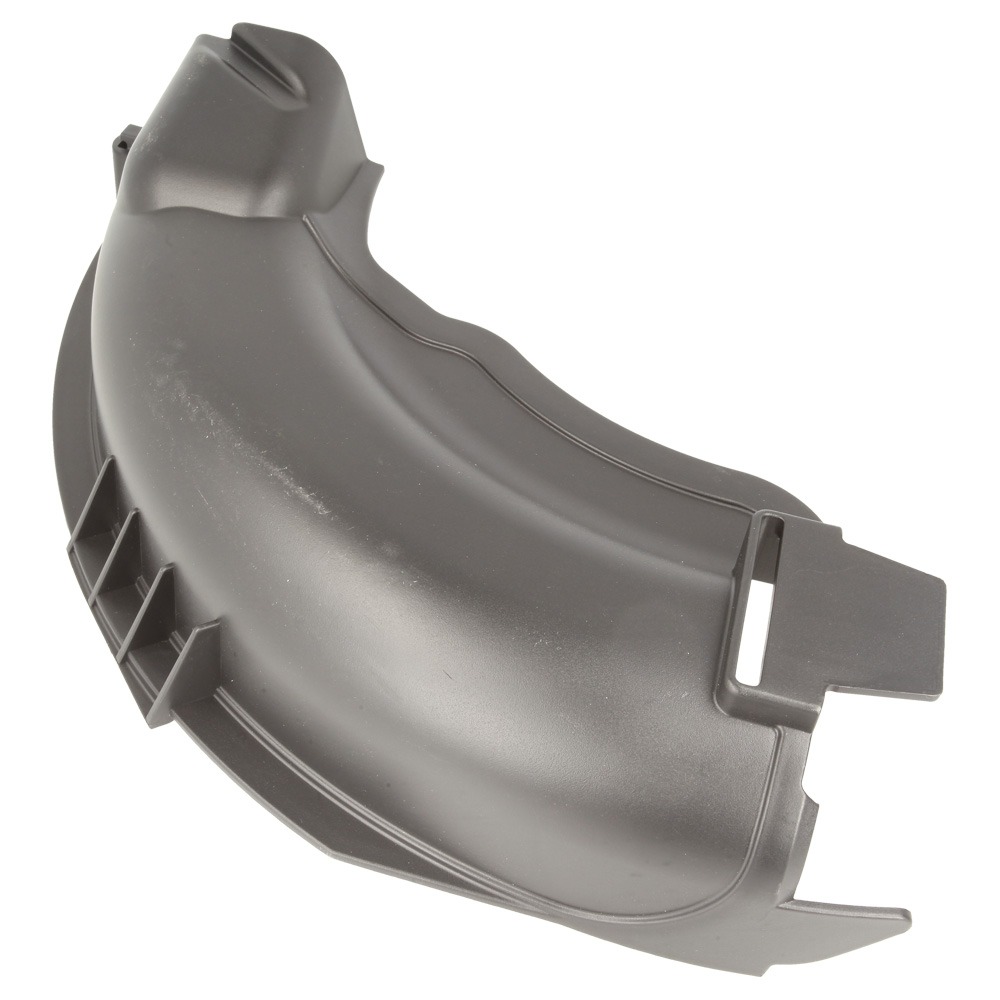

473342	AK473342 Available to backorder	Mulch Plug	£16.30 £13.58
473402	AK473402 Available to backorder	Pulley	£21.92 £18.27
473405	AK473405 Available to backorder	Pulley Half (148mm Dia)	£7.01 £5.84
473415	AK473415 Available to backorder	Ak473415	£3.04 £2.53
473510	AK473510 Available to backorder	Cotton Pin Mulch Kit	£9.36 £7.80
473515	AK473515 Available to backorder	Sholuder Bolt	£3.14 £2.62
476634	AK476634 Available to backorder	Ak476634	£9.89 £8.24
476686	AK476686 Available to backorder	Spring - Tensioner Pulley - L x 191 Rubber Cover	£9.64 £8.03
476867	AK476867 Available to backorder	Blade 95cm Sa	£31.14 £25.95
514175	AK514175 Available to backorder	Ak514175	£29.08 £24.23
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
521281	AK458568 In stock	Screw - Self Tapping	£2.03 £1.69
521940	AK521940 Available to backorder	Spring	£6.92 £5.77
700702	AK700702 In stock	Ak700702	£0.91 £0.76
701011	AK701011 Available to backorder	Ak701011	£1.46 £1.22
701482	AK543019 Available to backorder	Use Ak543019	£1.18 £0.98
701508	AK9331070 In stock	Ak701508	£2.04 £1.70
701985	AK703550 Available to backorder	Ak701985	£2.06 £1.72
703813	AK703813 Available to backorder	Ak703813	£0.68 £0.57
704337	AK704337 Available to backorder	Ak704337	£0.84 £0.70
704537	AK704537 In stock	Ak704537	£1.04 £0.87
705284	AK705284 Available to backorder	Ak705284	£3.34 £2.78
705360	AK705360 In stock	Ak705360	£2.64 £2.20
705657	AK705657 Available to backorder	Ak705657	£1.12 £0.93
706611	AK706611 Available to backorder	Ak706611	£0.84 £0.70
46835530	AK46835530 Available to backorder	Ak46835530	£35.76 £29.80
47306630	AK47306630 Available to backorder	Pin	£3.88 £3.23
47310402	AK47310402 Available to backorder	Side Discharge Deck 93cm	£364.80 £304.00
47311001	AK47311001 Available to backorder	Belt	£18.66 £15.55
47311101	AK47311101 Available to backorder	Belt	£19.32 £16.10
47311201	AK47311201 Available to backorder	Belt Cover	£16.10 £13.42
47321230	AK47321230 Available to backorder	Rocker	£14.24 £11.87
47340301	AK47340301 Available to backorder	Ak47340301	£19.86 £16.55
47341930	AK47341930 Available to backorder	Clamp	£17.10 £14.25
47342030	AK47342030 Available to backorder	Ak47342030	£23.72 £19.77
47350730	AK47350730 Available to backorder	Spacer	£4.42 £3.68
