AL-KO T13-92 HD Edition - 119283 - Cutter Deck

Name: AL-KO T13-92 HD Edition - 119283 - Cutter Deck
SKU: AK119283_5-group
Price: 0.6 GBP
Availability: InStock

Part No. AK119283_5-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-92 HD Edition - 119283 - Cutter Deck

Description

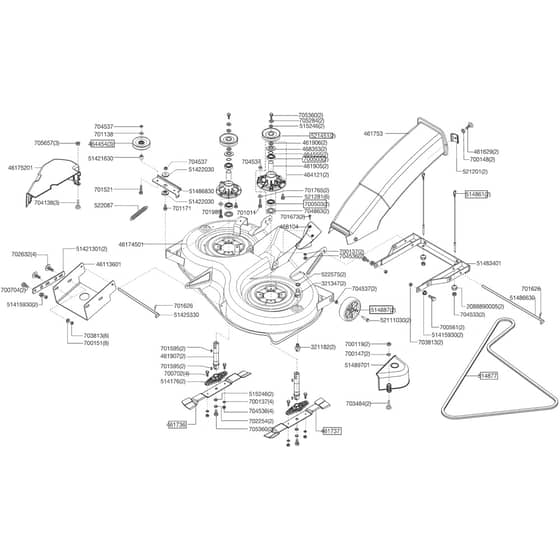

AL-KO T13-92 HD Edition - 119283 - Cutter Deck - Parts Diagram

	Part No.	Details
321182	AK321182 Available to backorder	Jet	£3.72 £3.10
321347	AK321347 Available to backorder	Hose Connector	£8.16 £6.80
461629	AK461629 Available to backorder	Screw	£1.22 £1.02
461736	AK461743 In stock	Use Ak461743	£46.12 £38.43
461737	AK461742 In stock	Use Ak461742	£46.12 £38.43
461753	AK461753 Available to backorder	Rear Chute	£73.68 £61.40
461905	AK461905 Available to backorder	Bush	£3.36 £2.80
461906	AK461906 Available to backorder	Washer	£3.12 £2.60

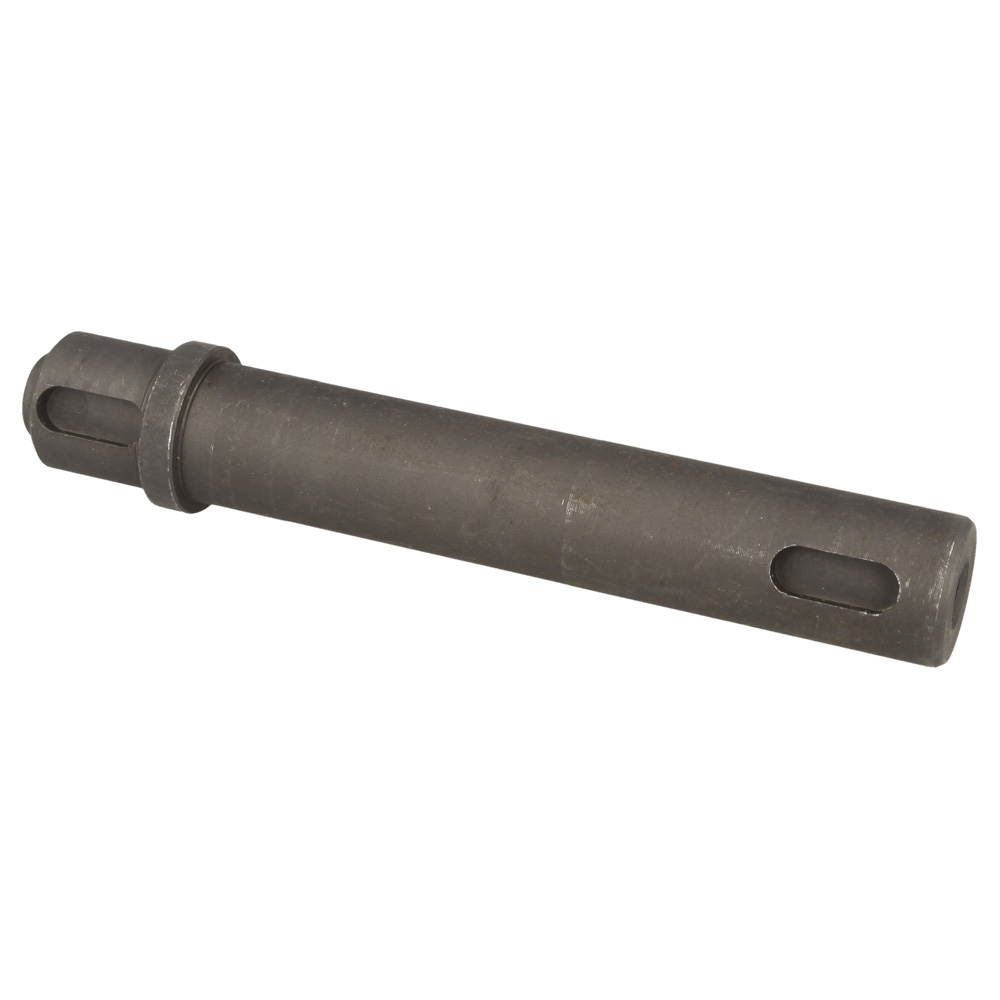

461907	AK46190730 In stock	Shaft	£39.53 £32.94
464121	AK464121 In stock	Support	£50.34 £41.95
464454	AK464454 In stock	Ak464454	£28.84 £24.03
464555	AK464555 In stock	Ak464555	£1.19 £0.99
468104	AK468104 In stock	Ak468104	£12.68 £10.57
468353	AK468353 Available to backorder	Ak468353	£1.86 £1.55
514176	AK514176 In stock	Blade Boss	£25.12 £20.93
514861	AK514861 Available to backorder	Lift Cable	£9.84 £8.20
514877	AK514877 In stock	Deck Belt - (Twin Blade)	£88.00 £73.33
514887	AK514887 Available to backorder	Ak514887	£16.20 £13.50
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
521201	AK521201 Available to backorder	Disc	£1.73 £1.44
521281	AK458568 In stock	Screw - Self Tapping	£2.10 £1.75
521451	AK521451 In stock	Pulley	£44.12 £36.77
522087	AK522087 In stock	Spring	£8.21 £6.84
522575	AK522575 Available to backorder	O-Ring	£1.49 £1.24
700119	AK700119 Available to backorder	Ak700119	£1.85 £1.54
700137	AK700137 Available to backorder	Ak700137	£1.08 £0.90
700147	AK703451 In stock	Ak700147	£1.03 £0.86
700148	AK700148 In stock	Ak700148	£0.86 £0.72
700151	AK700151 Available to backorder	Washer M10	£0.84 £0.70
700503	AK476634 In stock	Use Ak476634	£9.32 £7.77
700561	AK700561 Available to backorder	Ak700561	£1.42 £1.18
700702	AK700702 In stock	Ak700702	£0.72 £0.60
700704	AK700704 Available to backorder	Screw M10x30	£1.63 £1.36
701011	AK701011 Available to backorder	Ak701011	£1.46 £1.22
701138	AK706592 In stock	Use Ak706592	£0.96 £0.80
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701521	AK701521 Available to backorder	Screw M8x40	£1.46 £1.22
701595	AK701595 In stock	Key	£1.44 £1.20
701626	AK701626 In stock	R Clip	£1.18 £0.98
701673	AK701673 Available to backorder	Ak701673	£1.03 £0.86
701765	AK700201 Available to backorder	Ak701765	£0.88 £0.73
701985	AK703550 Available to backorder	Ak701985	£1.03 £0.86
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£1.04 £0.87
702632	AK702632 Available to backorder	Screw	£1.86 £1.55
703484	AK703484 Available to backorder	Screw M5x16	£0.84 £0.70
703813	AK703813 Available to backorder	Ak703813	£0.84 £0.70
704138	AK705968 Available to backorder	Use Ak705968	£0.83 £0.69
704533	AK704533 Available to backorder	Ak704533	£0.82 £0.68
704536	AK704536 Out of stock	Ak704536	£1.13 £0.94
704537	AK704537 In stock	Ak704537	£1.15 £0.96
704863	AK704863 Available to backorder	Seal	£3.49 £2.91
705284	AK705284 In stock	Ak705284	£3.88 £3.23
705360	AK705360 In stock	Ak705360	£2.69 £2.24
705657	AK705657 In stock	Ak705657	£1.37 £1.14
46113601	AK46113601 Available to backorder	Front Height Adjuster	£34.20 £28.50
46174501	AK46174501 In stock	Cutter Deck 92cm Black	£351.56 £292.97
46175201	AK46175201 Available to backorder	Cover	£23.40 £19.50
51415930	AK51415930 Available to backorder	Spacer	£2.69 £2.24
51421301	AK51421301 Available to backorder	Height Adjuster	£12.60 £10.50
51421630	AK514216 In stock	Use Ak514216	£2.96 £2.47
51422030	AK514220 Available to backorder	Use Ak514220	£4.68 £3.90
51425330	AK51425330 Available to backorder	Bar/Rod	£16.68 £13.90
51483401	AK51483401 Available to backorder	Suspension Device - Rear Deck	£54.36 £45.30
51486630	AK51486630 Available to backorder	Rod	£18.96 £15.80
51486830	AK514868 Available to backorder	Use Ak514868	£7.44 £6.20
51489701	AK51489701 Available to backorder	Cover	£7.44 £6.20
52111030	AK521110 In stock	Wheel Bolt	£7.72 £6.43
