AL-KO T13-92 Edition - 119263 - Cutter Deck

Name: AL-KO T13-92 Edition - 119263 - Cutter Deck
SKU: AK119263_5-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-92 Edition - 119263 - Cutter Deck

Description

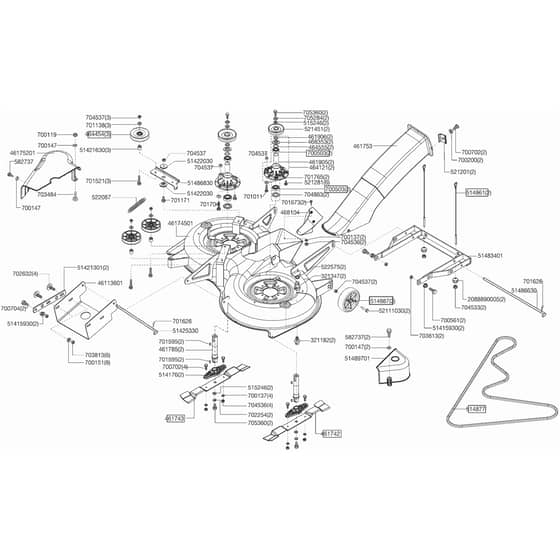

AL-KO T13-92 Edition - 119263 - Cutter Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Available to backorder	Jet	£3.55 £2.96
321347	AK321347 Available to backorder	Hose Connector	£7.70 £6.42
461742	AK461742 In stock	Ak461742	£45.52 £37.93
461743	AK461743 In stock	Ak461743	£45.54 £37.95
461753	AK461753 Available to backorder	Rear Chute	£71.24 £59.37
461785	AK452585 In stock	Use Ak452585	£102.60 £85.50
461905	AK461905 Available to backorder	Bush	£3.22 £2.68
461906	AK461906 Available to backorder	Washer	£3.06 £2.55
464121	AK464121 Available to backorder	Support	£52.10 £43.42
464454	AK464454 Available to backorder	Ak464454	£30.43 £25.36
464555	AK464555 Available to backorder	Ak464555	£1.04 £0.87
468104	AK468104 In stock	Ak468104	£13.39 £11.16
468353	AK468353 Available to backorder	Ak468353	£1.70 £1.42
514176	AK514176 In stock	Blade Boss	£24.16 £20.13
514861	AK514861 Available to backorder	Lift Cable	£8.38 £6.98
514877	AK514877 Available to backorder	Deck Belt - (Twin Blade)	£92.42 £77.02
514887	AK514887 Available to backorder	Ak514887	£17.52 £14.60
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
521201	AK521201 Available to backorder	Disc	£1.44 £1.20
521281	AK458568 In stock	Screw - Self Tapping	£2.03 £1.69
521451	AK521451 In stock	Pulley	£46.61 £38.84
522087	AK522087 In stock	Spring	£8.69 £7.24
522575	AK522575 Available to backorder	O-Ring	£1.46 £1.22
700119	AK700119 Available to backorder	Ak700119	£1.86 £1.55
700137	AK700137 In stock	Ak700137	£0.97 £0.81
700147	AK703451 Available to backorder	Ak700147	£3.26 £2.72
700151	AK700151 Available to backorder	Washer M10	£0.70 £0.58
700200	AK700200 Available to backorder	Ak700200	£0.68 £0.57
700503	AK476634 Available to backorder	Use Ak476634	£9.89 £8.24
700561	AK700561 Available to backorder	Ak700561	£1.18 £0.98
700702	AK700702 In stock	Ak700702	£0.91 £0.76
700704	AK700704 Available to backorder	Screw M10x30	£1.50 £1.25
701011	AK701011 Available to backorder	Ak701011	£1.46 £1.22
701138	AK706592 Available to backorder	Use Ak706592	£12.78 £10.65
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701521	AK701521 Available to backorder	Screw M8x40	£1.24 £1.03
701595	AK701595 In stock	Key	£1.28 £1.07
701626	AK701626 Available to backorder	R Clip	£1.04 £0.87
701673	AK701673 Available to backorder	Ak701673	£0.94 £0.78
701704	AK701704 In stock	Ak701704	£1.44 £1.20
701765	AK700201 Available to backorder	Ak701765	£0.77 £0.64
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£0.98 £0.82
702632	AK702632 Available to backorder	Screw	£1.70 £1.42
703484	AK703484 Available to backorder	Screw M5x16	£0.79 £0.66
703813	AK703813 Available to backorder	Ak703813	£0.68 £0.57
704533	AK704533 Available to backorder	Ak704533	£0.68 £0.57
704536	AK704536 Out of stock	Ak704536	£0.97 £0.81
704537	AK704537 In stock	Ak704537	£1.04 £0.87
704863	AK704863 Available to backorder	Seal	£3.64 £3.03
705284	AK705284 Available to backorder	Ak705284	£3.34 £2.78
705360	AK705360 In stock	Ak705360	£2.64 £2.20
46113601	AK46113601 Available to backorder	Front Height Adjuster	£33.08 £27.57

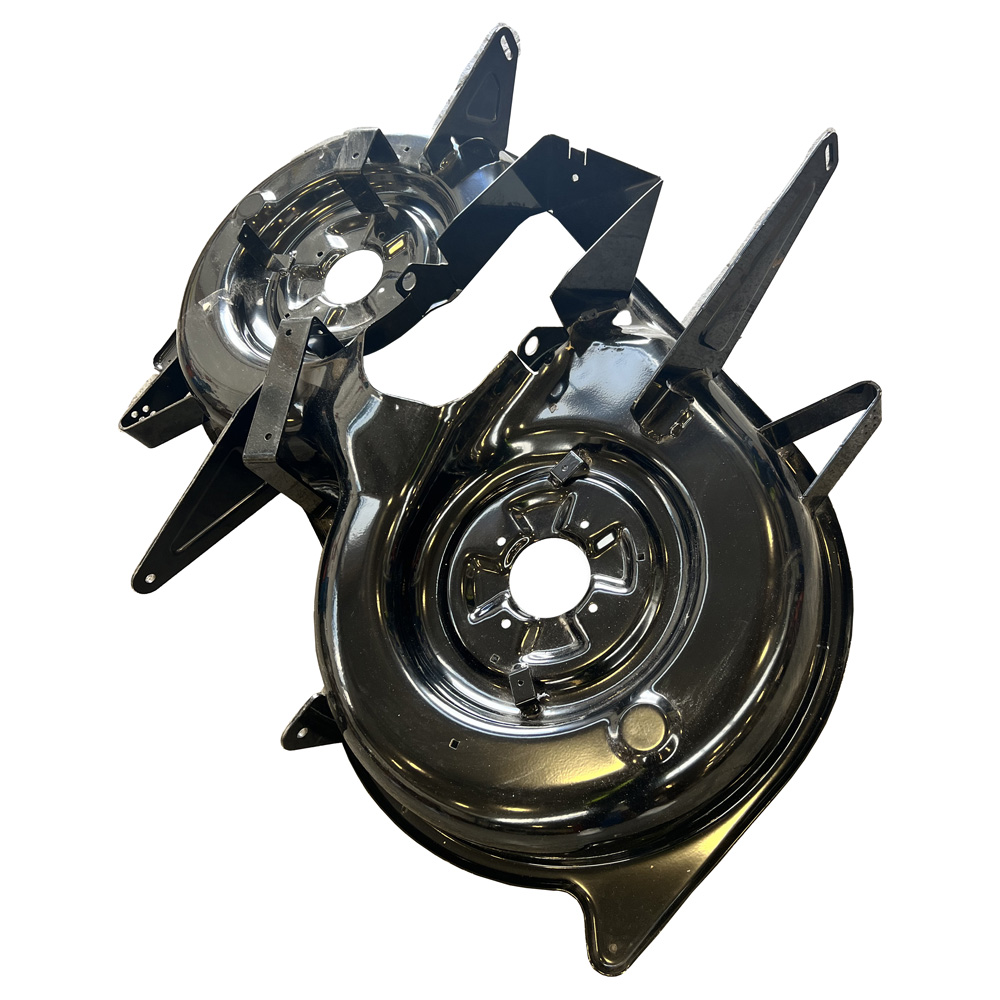

46174501	AK46174501 Available to backorder	Cutter Deck 92cm Black	£285.60 £238.00

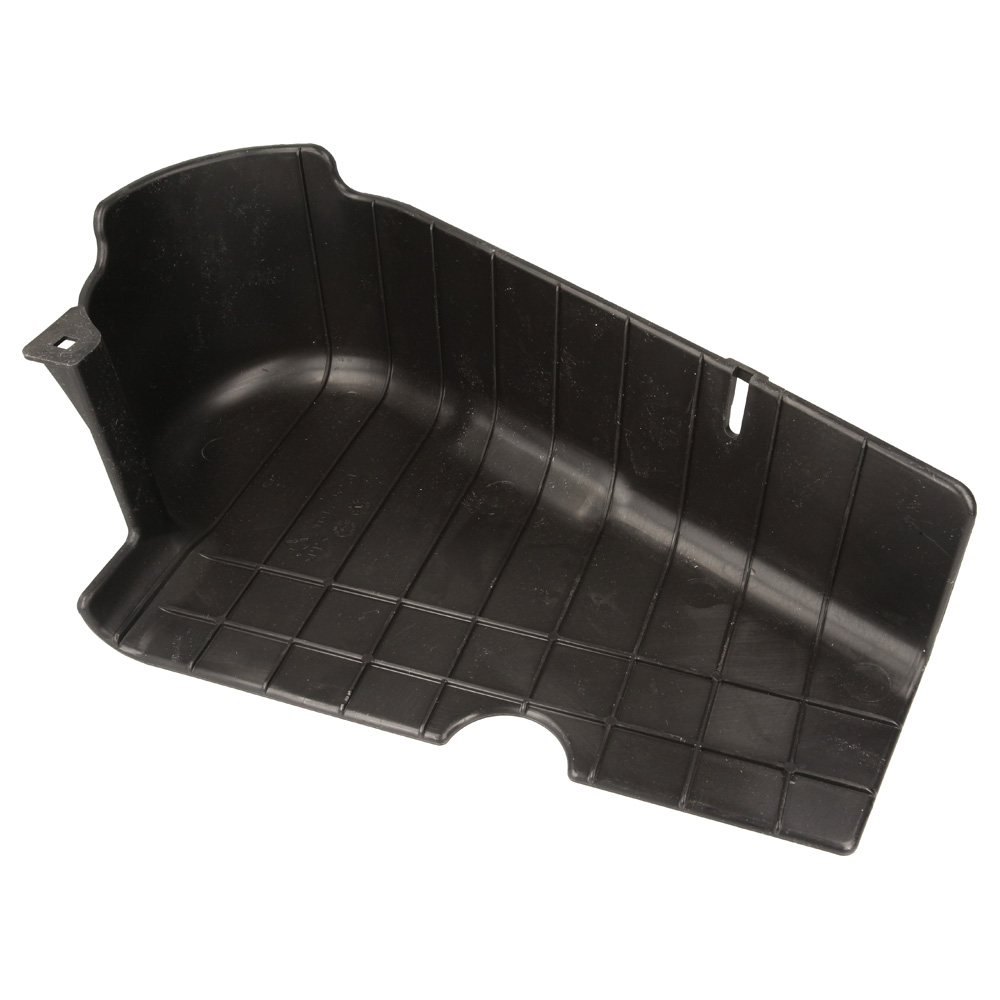

46175201	AK46175201 Available to backorder	Cover	£39.00 £32.50
51415930	AK51415930 Available to backorder	Spacer	£2.46 £2.05
51421301	AK51421301 Available to backorder	Height Adjuster	£12.20 £10.17
51421630	AK514216 Available to backorder	Use Ak514216	£2.72 £2.27
51422030	AK514220 Available to backorder	Use Ak514220	£4.58 £3.82
51425330	AK51425330 Available to backorder	Bar/Rod	£16.18 £13.48
51483401	AK51483401 Available to backorder	Suspension Device - Rear Deck	£52.56 £43.80
51486630	AK51486630 Available to backorder	Rod	£18.42 £15.35
51486830	AK514868 Available to backorder	Use Ak514868	£6.86 £5.72
51489701	AK51489701 Available to backorder	Cover	£7.84 £6.53
52111030	AK521110 In stock	Wheel Bolt	£7.87 £6.56
2088890005	AK468923 Available to backorder	Use Ak468923	£5.00 £4.17
