AL-KO T13-85 LUX HVC - 118217 - Fuel Tank And Battery

Name: AL-KO T13-85 LUX HVC - 118217 - Fuel Tank And Battery
SKU: AK118217_6-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-85 LUX HVC - 118217 - Fuel Tank And Battery

Description

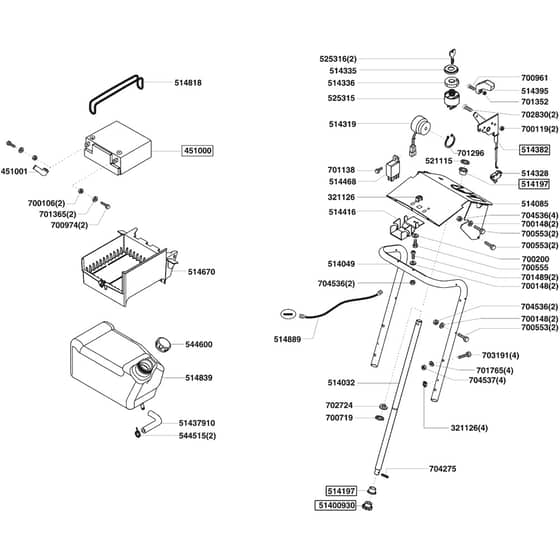

AL-KO T13-85 LUX HVC - 118217 - Fuel Tank And Battery - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321126	AK321126 Available to backorder	Ak321126	£0.91 £0.76
451000	AK494458VA Available to backorder	Battery - 12V/17Ah	£131.74 £109.78
451001	AK451001 Available to backorder	Ak451001	£3.56 £2.97
514032	AK51403230 Available to backorder	Use Ak51403230	£32.22 £26.85
514049	AK514049 Available to backorder	Support Rod	£33.40 £27.83
514197	AK514197 In stock	Ak514197	£4.56 £3.80
514319	AK458562 Available to backorder	Buzzer	£17.86 £14.88
514328	AK514328 Available to backorder	Light Switch	£14.04 £11.70
514335	AK514335 Available to backorder	Ignition Lock Nut	£2.84 £2.37
514336	AK514336 Available to backorder	Spacer	£5.06 £4.22
514382	AK514382 Available to backorder	Ak514382	£23.30 £19.42
514395	AK473491 Available to backorder	Use Ak473491	£5.33 £4.44
514416	AK514416 Available to backorder	Plate	£6.12 £5.10
514468	AK514468 Available to backorder	Starter	£29.06 £24.22
514670	AK514670 Available to backorder	Battery Box	£16.14 £13.45
514818	AK514818 Available to backorder	Ak514818	£5.47 £4.56
514839	AK457706 Available to backorder	Ak514839	£68.40 £57.00
514889	AK514889 Available to backorder	Earth Cable	£9.34 £7.78
521115	AK521115 Available to backorder	Quick Fastening 20mm	£2.16 £1.80
525315	AK525315 Available to backorder	Ignition Switch	£31.12 £25.93
525316	AK525316 Available to backorder	Ignition Key - Delta Type	£5.47 £4.56
544515	AK544515 Available to backorder	Ak544515	£0.70 £0.58
544600	AK544600 Available to backorder	Tank Cap	£10.45 £8.71
700106	AK700106 Available to backorder	Ak700106	£0.84 £0.70
700119	AK700119 Available to backorder	Ak700119	£1.86 £1.55
700148	AK700148 In stock	Ak700148	£0.79 £0.66
700200	AK700200 Available to backorder	Ak700200	£0.68 £0.57
700553	AK700553 In stock	Ak700553	£0.72 £0.60
700555	AK700555 Available to backorder	Ak700555	£0.68 £0.57
700719	AK700719 Available to backorder	Ak700719	£1.52 £1.27
700961	AK700961 Available to backorder	Screw	£0.70 £0.58
700974	AK700974 Available to backorder	Screw	£0.68 £0.57
701138	AK706592 Available to backorder	Use Ak706592	£12.78 £10.65
701296	AK701296 Available to backorder	Circlip	£0.84 £0.70
701352	AK701352 Available to backorder	Ak701352	£0.84 £0.70
701365	AK701365 Available to backorder	Washer	£0.48 £0.40
701489	AK703363 Available to backorder	Ak701489	£0.68 £0.57
701765	AK700201 Available to backorder	Ak701765	£0.77 £0.64
702724	AK702724 In stock	Ak702724	£0.37 £0.31
702830	AK702830 Available to backorder	Screws	£0.70 £0.58
703191	AK705614 Available to backorder	Use Ak705614	£0.84 £0.70
704275	AK704275 In stock	Ak704275	£0.96 £0.80
704536	AK704536 Out of stock	Ak704536	£0.97 £0.81
704537	AK704537 In stock	Ak704537	£1.04 £0.87
51400930	AK51400930 In stock	Ak51400930	£24.85 £20.71
51437910	AK51437910 Available to backorder	Ak51437910	£9.34 £7.78
