AL-KO T13-102 HVC - 118121 - Grass Box: before 2.2000

Name: AL-KO T13-102 HVC - 118121 - Grass Box: before 2.2000
SKU: AK118121_7_before_2_2000-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-102 HVC - 118121 - Grass Box: before 2.2000

Description

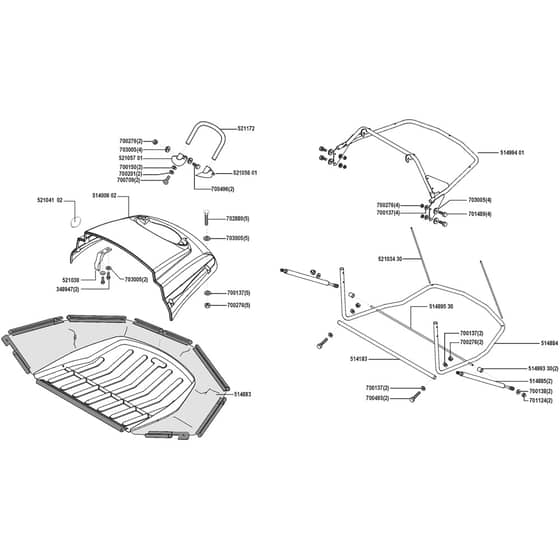

AL-KO T13-102 HVC - 118121 - Grass Box - Parts Diagram

before 2.2000

Be the first to review this product

0 product questions

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.70 £0.58
514183	AK514183 Available to backorder	Bar	£15.14 £12.62
514883	AK476627 Available to backorder	Use Ak476627	£102.02 £85.02
514884	AK514884 Available to backorder	Lower Box Pipe	£38.80 £32.33
514885	AK514885 In stock	Gas Strut Assy	£54.08 £45.07
521172	AK521172 In stock	Supporting Handle T102 - Nut Ak514320	£38.08 £31.73
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700201	AK700201 Available to backorder	Washer M8	£0.77 £0.64
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700493	AK700493 Available to backorder	Bolt	£1.18 £0.98
700496	AK700496 In stock	Screw	£0.78 £0.65
700709	AK700709 Available to backorder	Screw	£1.18 £0.98
701124	AK701124 Available to backorder	Dome Nut M8	£0.66 £0.55
701489	AK703363 Available to backorder	Use Ak703363	£0.68 £0.57
702880	AK700866 Available to backorder	Use Ak700866	£0.74 £0.62
703005	AK700148 In stock	Washer M6	£0.79 £0.66
51400602	AK51400602 Available to backorder	Red Box Cover	£84.70 £70.58
51489530	AK51489530 Available to backorder	Box Strut T102	£8.64 £7.20
51499330	AK51499330 Available to backorder	Sleeve	£6.78 £5.65
51499401	AK49308301 Available to backorder	Upper Frame T102	£94.22 £78.52
52103430	AK52103430 Available to backorder	Spacer	£7.64 £6.37
52104102	AK52104102 Available to backorder	Plug	£2.70 £2.25
52105601	AK52105601 In stock	Holder	£13.09 £10.91
52105701	AK52105701 In stock	Cap Kit	£13.09 £10.91
