AL-KO T13-102 HVC - 118121 - Body Work And Seat: 2.2000 - 2.2001

Description

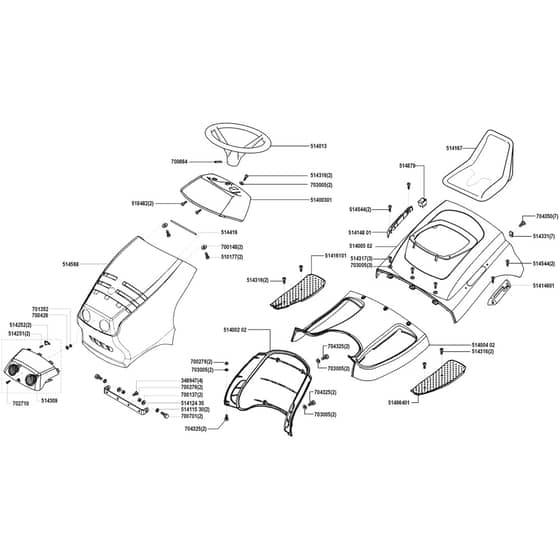

AL-KO T13-102 HVC - 118121 - Body Work And Seat - Parts Diagram

2.2000 - 2.2001

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514013	AK514013 Available to backorder	Steering Wheel	£59.04 £49.20
514167	AK514166 Available to backorder	Use Ak514166	£119.16 £99.30
514251	AK521528 Available to backorder	Use Ak521528	£12.12 £10.10
514252	AK514252 Available to backorder	Bulb Holder	£9.12 £7.60
514309	AK52152601 Available to backorder	Use Ak52152601	£62.28 £51.90
514316	AK514316 Available to backorder	Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514568	AK514568 Available to backorder	Bonnet	£312.00 £260.00
514879	AK514879 In stock	Switch - Latching	£43.63 £36.36
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700426	AK700426 Available to backorder	Washer M4	£1.01 £0.84
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
700701	AK700701 Available to backorder	Screw M6x25	£0.77 £0.64
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
702710	AK702710 Available to backorder	Screw	£0.84 £0.70
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704350	AK468569 Available to backorder	Use Ak468569	£1.48 £1.23
51400202	AK51400202 Available to backorder	Lower Section	£67.80 £56.50
51400301	AK521084 Available to backorder	Use Ak521084	£40.44 £33.70
51400402	AK51400402 Available to backorder	Panel	£79.80 £66.50
51400502	AK52142502 Available to backorder	Use Ak52142502	£95.64 £79.70
51411530	AK51411530 Available to backorder	Spacer	£1.76 £1.47
51412430	AK51412430 Available to backorder	Bearing Cap	£10.20 £8.50
51414601	AK521086 Available to backorder	Use Ak521086	£16.44 £13.70
51414801	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51496401	AK51496401 Available to backorder	Foot Matt L/H	£19.08 £15.90
