AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Cutter Deck

Description

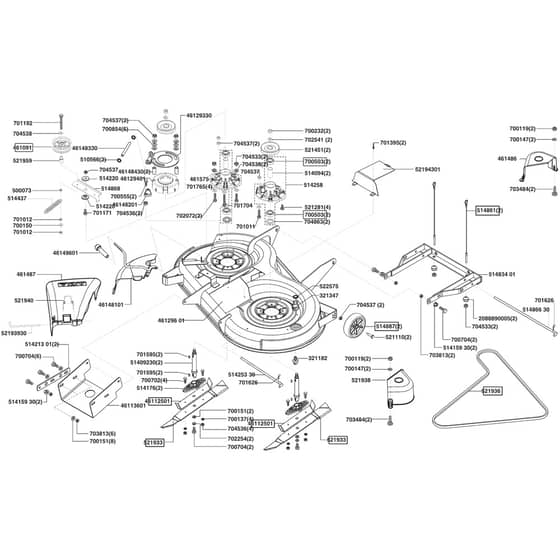

AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Cutter Deck - Parts Diagram

	Part No.	Details
321182	AK321182 Available to backorder	Jet	£3.72 £3.10
321347	AK321347 Available to backorder	Hose Connector	£8.16 £6.80
461091	AK461091 Available to backorder	Pulley	£25.32 £21.10
461486	AK461486 Available to backorder	Belt Cover	£18.12 £15.10
461487	AK461487 Available to backorder	Deflector	£55.20 £46.00
461575	AK452585 In stock	Use Ak452585	£98.57 £82.14
500073	AK500073 In stock	Nut	£1.48 £1.23
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
514094	AK514094 Available to backorder	Spacer	£5.88 £4.90
514176	AK514176 In stock	Blade Boss	£25.12 £20.93
514220	AK514220 Available to backorder	Spacer	£4.68 £3.90
514861	AK514861 Available to backorder	Lift Cable	£9.84 £8.20
514868	AK514868 Available to backorder	Tensioner	£7.44 £6.20
514887	AK514887 Available to backorder	Deck Wheel	£16.20 £13.50
521110	AK521110 In stock	Wheel Bolt	£7.72 £6.43
521281	AK458568 In stock	Screw - Self Tapping	£2.10 £1.75
521451	AK521451 In stock	Pulley	£44.12 £36.77
521933	AK521933 Available to backorder	Blade	£40.08 £33.40
521936	AK521936 In stock	Drive Belt	£54.56 £45.47
521938	AK521938 Available to backorder	Cover	£15.12 £12.60
521940	AK521940 Available to backorder	Spring	£7.20 £6.00
521959	AK521959 Available to backorder	Case	£3.12 £2.60
522575	AK522575 Available to backorder	O-Ring	£1.49 £1.24
700119	AK700119 Available to backorder	Nut M5	£1.85 £1.54
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700147	AK703451 In stock	Washer	£1.03 £0.86
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700151	AK700151 Available to backorder	Washer M10	£0.84 £0.70
700232	AK702801 Available to backorder	Nut When Nil Use Ak702801	£3.36 £2.80
700503	AK476634 In stock	Use Ak476634	£9.32 £7.77
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700702	AK700702 In stock	Screw M6x25	£0.72 £0.60
700704	AK700704 Available to backorder	Screw M10x30	£1.63 £1.36
700854	AK700854 Available to backorder	Spring	£1.15 £0.96
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701012	AK701012 Available to backorder	Nut	£1.32 £1.10
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701192	AK701192 Available to backorder	Screw	£2.22 £1.85
701395	AK701395 Available to backorder	Rivet	£0.86 £0.72
701595	AK701595 In stock	Key	£1.44 £1.20
701626	AK701626 In stock	R Clip	£1.18 £0.98
701704	AK701704 In stock	Screw M8x60	£1.58 £1.32
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
702072	AK703926 Available to backorder	Use Ak703926	£1.76 £1.47
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£1.04 £0.87
702541	AK702541 Available to backorder	Washer M16	£0.82 £0.68
703484	AK703484 Available to backorder	Screw M5x16	£0.84 £0.70
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704533	AK704533 Available to backorder	Nut	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704863	AK704863 Available to backorder	Seal	£3.49 £2.91
46112501	AK46112501 Available to backorder	Stiffener	£36.48 £30.40
46113601	AK46113601 Available to backorder	Front Height Adjuster	£34.20 £28.50
46129330	AK46129330 Available to backorder	Segment	£39.36 £32.80
46129401	AK46129401 Available to backorder	Ring	£58.08 £48.40
46129601	AK46129601 Available to backorder	Cutter Deck 102 cm - Side Discharge	£390.83 £325.69
46148201	AK46148201 Available to backorder	Stop	£7.68 £6.40
46148330	AK46148330 Available to backorder	Bolt - Pin	£6.24 £5.20
46148430	AK46148430 Available to backorder	Sleeve	£3.24 £2.70
51415930	AK51415930 Available to backorder	Spacer	£2.69 £2.24
51421301	AK51421301 Available to backorder	Height Adjuster	£12.60 £10.50
51425330	AK51425330 Available to backorder	Bar/Rod	£16.68 £13.90
51483401	AK51483401 Available to backorder	Suspension Device - Rear Deck	£54.36 £45.30
51486630	AK51486630 Available to backorder	Rod	£18.96 £15.80
52193930	AK52193930 Available to backorder	Plug	£8.88 £7.40
