AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Chassis

Name: AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Chassis
SKU: AK118645_2-group
Price: 0.4 GBP
Availability: InStock

Part No. AK118645_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Chassis

Description

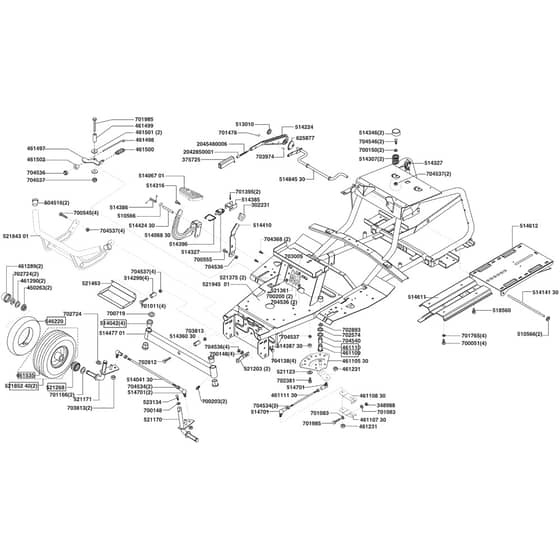

AL-KO T13-102 HDS Bio-Combi HVC - 118645 - Chassis - Parts Diagram

	Part No.	Details
302231	AK302231 Available to backorder	Grip	£6.48 £5.40
348988	AK692795 Available to backorder	Nut	£1.42 £1.18
375725	AK375725 Available to backorder	Handle	£9.84 £8.20
450263	AK450263 In stock	Bush	£2.86 £2.38
461109	AK461109 Available to backorder	Bush	£9.24 £7.70
461110	AK461110 Available to backorder	Bush	£3.72 £3.10
461231	AK461231 Available to backorder	Nut	£0.82 £0.68
461289	AK461289 In stock	Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
461497	AK461497 Available to backorder	Arm	£10.92 £9.10
461498	AK46149830 Available to backorder	Use Ak46149830	£5.64 £4.70
461499	AK46149930 In stock	Use Ak46149930	£3.24 £2.70
461500	AK461500 Available to backorder	Spring	£4.32 £3.60
461501	AK468023 Available to backorder	Use Ak46802330	£2.95 £2.46
461535	AK461535 Available to backorder	Tyre	£63.12 £52.60
504516	AK519076 Available to backorder	Plug - 2.5cm	£1.30 £1.08
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
513010	AK513010 Available to backorder	Fastener	£5.04 £4.20
514042	AK514042 Available to backorder	Bush	£9.12 £7.60
514224	AK514224 Available to backorder	Lever	£59.88 £49.90
514299	AK514299 Available to backorder	Spacer	£3.12 £2.60
514307	AK514307 Available to backorder	Seat Spring	£4.56 £3.80
514316	AK514316 Available to backorder	Screw	£1.42 £1.18
514346	AK514346 In stock	Cap	£1.69 £1.41
514385	AK514385 Available to backorder	Holder	£2.42 £2.02
514386	AK514386 Available to backorder	Spring Rh	£4.08 £3.40
514396	AK51439630 Available to backorder	Use Ak51439630	£2.22 £1.85
514410	AK514410 Available to backorder	Arm Rh	£12.96 £10.80
514611	AK514611 Available to backorder	Centre Plate	£40.92 £34.10
514612	AK514612 Available to backorder	Rear Plate	£48.60 £40.50
514701	AK514701 In stock	Ball Joint - Alt Nut Lower Migb/T6171 M10x1	£18.78 £15.65
518560	AK518560 Available to backorder	Screw M4x16	£0.84 £0.70
521123	AK521123 Available to backorder	Washer	£5.04 £4.20
521170	AK51403730 Available to backorder	Use Ak51403730	£35.40 £29.50
521171	AK51403830 In stock	Use Ak51403830	£35.40 £29.50
521268	AK521268 In stock	Bearing - 20x30x55	£10.08 £8.40
521361	AK521361 In stock	Tractor Solenoid	£31.69 £26.41
521375	AK521375 Available to backorder	Nut	£0.82 £0.68
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
546220	AK546220 Available to backorder	Tube	£41.88 £34.90
625877	AK625877 Available to backorder	Gear Segment	£6.96 £5.80
700051	AK700051 Available to backorder	Screw M8x20	£0.82 £0.68
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700200	AK700200 Available to backorder	Washer	£0.82 £0.68
700203	AK700203 Available to backorder	Grease Nipple	£1.01 £0.84
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701083	AK701083 Available to backorder	Washer	£0.82 £0.68
701166	AK701166 Available to backorder	Washer	£0.79 £0.66
701395	AK701395 Available to backorder	Rivet	£0.86 £0.72
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
701985	AK703550 Available to backorder	Wheel Bolt	£1.03 £0.86
702381	AK702381 Available to backorder	Screw	£1.03 £0.86
702574	AK702574 Available to backorder	Washer	£1.81 £1.51
702724	AK702724 In stock	E-Clip	£0.48 £0.40
702812	AK705433 Available to backorder	Use Ak705433	£2.28 £1.90
702893	AK702893 Available to backorder	Clip	£0.84 £0.70
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
703974	AK703974 Available to backorder	Screw	£0.82 £0.68
704138	AK705968 Available to backorder	Use Ak705968	£0.83 £0.69
704368	AK704368 Available to backorder	Screw	£0.84 £0.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
46110530	AK46110530 In stock	Quadrant	£50.46 £42.05
46110730	AK46110730 Available to backorder	Link	£7.56 £6.30
46110830	AK46110830 Available to backorder	Lever	£7.32 £6.10
46111130	AK46111130 Available to backorder	Height Adj Bar	£7.20 £6.00
51404130	AK51404130 In stock	Tie Rod	£9.83 £8.19
51406830	AK51406830 Available to backorder	Throttle Arm	£21.12 £17.60
51436030	AK51436030 Available to backorder	Bush	£4.56 £3.80
51438730	AK51438730 Available to backorder	Spacer	£3.14 £2.62
51442430	AK51442430 Available to backorder	Shaft	£5.76 £4.80
51447701	AK521078 Available to backorder	Use Ak521078	£76.32 £63.60
51484530	AK51484530 Available to backorder	Shaft	£30.00 £25.00
52184301	AK52184501 Available to backorder	Use Ak52184501	£70.20 £58.50
52185240	AK493536 Available to backorder	Use Ak46483440	£107.04 £89.20
52194501	AK52194501 Available to backorder	Frame	£361.63 £301.36
2042850001	AK2042850001 Available to backorder	Button	£4.44 £3.70
2045480006	AK2045480006 Available to backorder	Spring	£11.64 £9.70
