AL-KO T12-74H Edition - 119276 - Transmission

Name: AL-KO T12-74H Edition - 119276 - Transmission
SKU: AK119276_3-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T12-74H Edition - 119276 - Transmission

Description

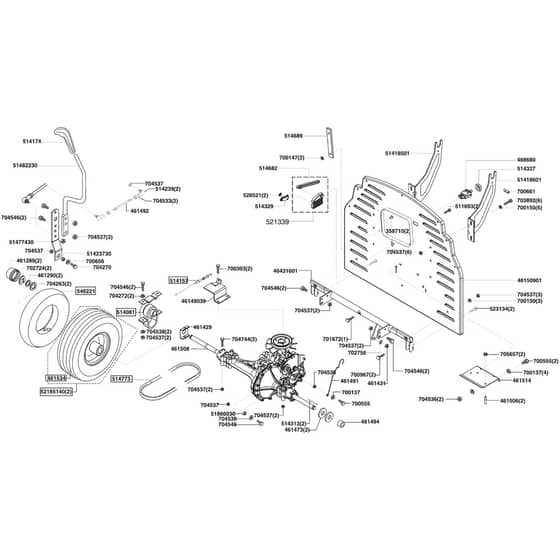

AL-KO T12-74H Edition - 119276 - Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
358710	AK358710 Available to backorder	Rivet	£0.80 £0.67
461289	AK461289 Available to backorder	Cap	£4.60 £3.83
461290	AK461290 Available to backorder	Washer	£2.08 £1.73
461429	AK461429 Available to backorder	Plate	£5.94 £4.95
461431	AK461431 Available to backorder	Nut	£0.70 £0.58
461473	AK461473 Available to backorder	Disc	£9.82 £8.18
461491	AK461491 Available to backorder	Rod	£7.80 £6.50
461492	AK46149230 Available to backorder	Use Ak46149230	£6.78 £5.65
461494	AK46149430 Available to backorder	Use Ak46149430	£4.90 £4.08
461506	AK461506 Available to backorder	Bolt	£1.86 £1.55
461534	AK461534 Available to backorder	Tyre	£71.26 £59.38
468680	AK493565 Available to backorder	Switch - Black	£15.64 £13.03
511693	AK468878 Available to backorder	Use Ak468878	£0.78 £0.65
514081	AK514081 Available to backorder	Bearing Assembly	£31.88 £26.57
514157	AK514157 Available to backorder	Trans Brake Cable	£32.28 £26.90
514174	AK514174 Available to backorder	Knob	£8.84 £7.37
514239	AK514239 Available to backorder	Ball Joint	£8.74 £7.28
514313	AK514313 In stock	Key	£1.49 £1.24
514329	AK514329 Available to backorder	Switch	£17.27 £14.39
514337	AK514337 Available to backorder	Cap	£4.60 £3.83
514682	AK493511 Available to backorder	Use Ak493511	£6.20 £5.17
514689	AK514689 Available to backorder	Flap	£2.88 £2.40
514773	AK514773 Available to backorder	Drive Belt (13 x 2830 Ld)	£47.60 £39.67
521339	AK521339 Available to backorder	Arm And Case Assy	£15.50 £12.92
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
546221	AK468870 Available to backorder	Use Ak546222	£33.02 £27.52
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700303	AK703926 Available to backorder	Use Ak703926	£1.62 £1.35
700555	AK700555 Available to backorder	Bolt	£0.68 £0.57
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
700661	AK700661 Available to backorder	Sleeve	£0.68 £0.57
700967	AK700967 Available to backorder	Screw	£1.18 £0.98
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
702724	AK702724 In stock	E-Clip	£0.37 £0.31
702756	AK702756 Available to backorder	Tooth Lock Washer	£0.70 £0.58
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
704263	AK705617 Available to backorder	Use Ak705617	£0.86 £0.72
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704533	AK704533 Available to backorder	Nut	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
704744	AK704744 Available to backorder	Screw	£1.36 £1.13
705657	AK705657 Available to backorder	Nut M6	£1.12 £0.93
46149030	AK461490 Available to backorder	Use Ak461490	£8.32 £6.93
46150901	AK46150901 Available to backorder	Flap	£63.62 £53.02
46431601	AK46431601 Available to backorder	Support Bracket	£47.82 £39.85
51418501	AK514185 Available to backorder	Use Ak514185	£25.22 £21.02
51418601	AK514186 Available to backorder	Use Ak514186	£25.22 £21.02
51423730	AK514237 Available to backorder	Use Ak514237	£1.62 £1.35
51477430	AK51477430 Available to backorder	Plate	£8.50 £7.08
51482230	AK51482230 Available to backorder	Gear-Shift Lever	£196.00 £163.33
51866030	AK51866030 Available to backorder	Sleeve	£1.36 £1.13
52185140	AK46483340 Available to backorder	Use Ak46483340	£144.22 £120.18
