AL-KO Sunline 460 Bio Lux - 118559 - Main Assembly: 11.2003 - 4.2004

Name: AL-KO Sunline 460 Bio Lux - 118559 - Main Assembly: 11.2003 - 4.2004
SKU: AK118559_1_11_2003_4_2004-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Sunline 460 Bio Lux - 118559 - Main Assembly: 11.2003 - 4.2004

Description

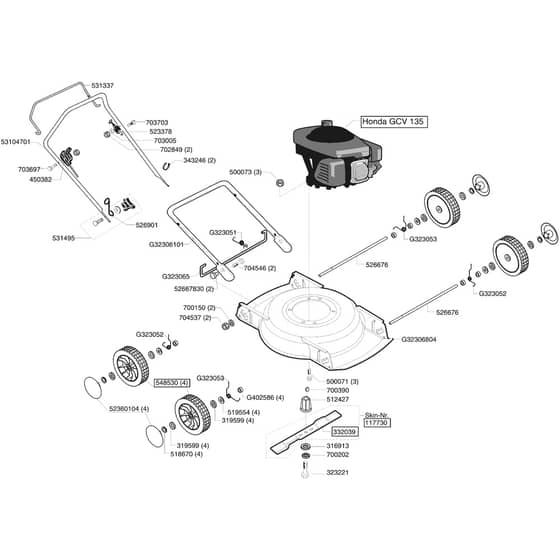

AL-KO Sunline 460 Bio Lux - 118559 - Main Assembly - Parts Diagram

11.2003 - 4.2004

Be the first to review this product

0 product questions

	Part No.	Details
117730	AK440125 In stock	Use Ak440125	£39.98 £33.32
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
319599	AK319599 Available to backorder	Washer	£1.10 £0.92
323051	AKG323051 Available to backorder	Torsion Spring	£4.42 £3.68
323065	AKG323065 Available to backorder	Bar	£11.02 £9.18
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
402586	AKG532141 Available to backorder	Use Akg532141	£1.12 £0.93
450382	AK546493 Available to backorder	Use Ak450553	£19.02 £15.85
500071	AK456208 Available to backorder	Ak500071	£1.02 £0.85
500073	AK500073 In stock	Nut	£1.28 £1.07
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
518670	AK518670 Available to backorder	Washer 12mm	£1.50 £1.25
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523378	AK523378 Available to backorder	Opc Cable - Dog End	£21.32 £17.77
526676	AK52667610 Available to backorder	Use Ak52667610	£9.00 £7.50
526901	AK526901 Available to backorder	Guide	£2.84 £2.37
531337	AK53133702 Available to backorder	Use Ak53133702	£20.52 £17.10
531495	AK527748 Available to backorder	Use Ak527748	£5.94 £4.95
548530	AK548530 Available to backorder	Front Wheel	£20.16 £16.80
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703005	AK700148 In stock	Ak703005	£0.79 £0.66
703697	AK703697 Available to backorder	Screw M6x55	£0.96 £0.80
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.22 £1.85
