AL-KO Sunline 46 - 118558 - Main Body - Controls - Tine Sets: 10.2003 - 4.2004

Name: AL-KO Sunline 46 - 118558 - Main Body - Controls - Tine Sets: 10.2003 - 4.2004
SKU: AK118558_1_10_2003_4_2004-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Sunline 46 - 118558 - Main Body - Controls - Tine Sets: 10.2003 - 4.2004

Description

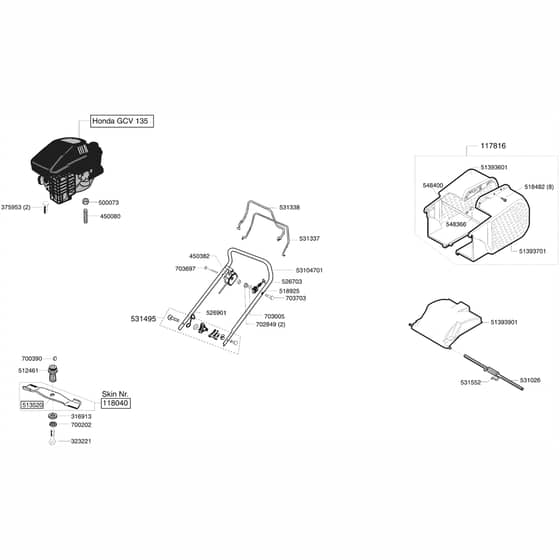

AL-KO Sunline 46 - 118558 - Main Body - Controls - Tine Sets - Parts Diagram

10.2003 - 4.2004

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450080	AK450080 Available to backorder	Grubscrew	£1.60 £1.33
450382	AK546493 Available to backorder	Use Ak450553	£19.02 £15.85
500073	AK500073 In stock	Nut	£1.28 £1.07
512461	AK463962 In stock	Use Ak463962	£20.78 £17.32
513520	AK470836 Available to backorder	Use Ak470836	£33.68 £28.07
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
526703	AK525769 In stock	Use Ak525769	£22.72 £18.93
526901	AK526901 Available to backorder	Guide	£2.84 £2.37
531026	AK531026 Available to backorder	Rod	£5.28 £4.40
531337	AK53133702 Available to backorder	Use Ak53133702	£20.52 £17.10
531338	AK53133840 Available to backorder	Use Ak53133840	£15.92 £13.27
531495	AK527748 Available to backorder	Use Ak527748	£5.94 £4.95
531552	AK531552 Available to backorder	Spring	£4.24 £3.53
548366	AK548366 Available to backorder	Hanger	£1.52 £1.27
548400	AK548400 Available to backorder	Rod	£2.36 £1.97
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703005	AK700148 In stock	Ak703005	£0.79 £0.66
703697	AK703697 Available to backorder	Screw M6x55	£0.96 £0.80
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
51393901	AK51393901 Available to backorder	Flap	£25.44 £21.20
