AL-KO SOLO 5375 - 127126 - Main Assembly

Name: AL-KO SOLO 5375 - 127126 - Main Assembly
SKU: AK127126_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO SOLO 5375 - 127126 - Main Assembly

Description

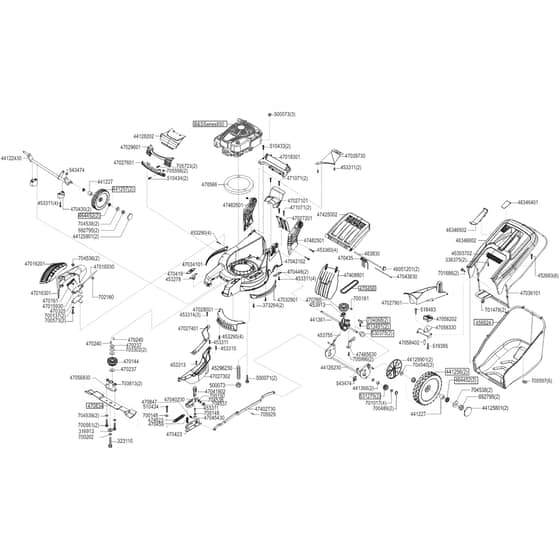

AL-KO SOLO 5375 - 127126 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323110	AK457347 Available to backorder	Use Ak457347	£2.94 £2.45
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
373264	AK373264 Available to backorder	Screw 16mm	£0.70 £0.58
441227	AK441227 Available to backorder	Spacer	£15.20 £12.67
441256	AK457689 Available to backorder	Use Ak457689	£56.54 £47.12
441257	AK457698 Available to backorder	Front Wheel	£49.08 £40.90
441361	AK441361 Available to backorder	Transmission	£118.96 £99.13
441368	AK441368 Available to backorder	Spacer	£2.04 £1.70
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
453278	AK453278 Available to backorder	Cover	£14.02 £11.68
453290	AK453290 Available to backorder	Screw M5x10	£0.84 £0.70
453311	AK453311 Available to backorder	Bolt	£0.96 £0.80
453313	AK49411802 Available to backorder	No Longer Available	£41.16 £34.30
453314	AK453314 Available to backorder	Screw	£0.91 £0.76
453315	AK453315 Available to backorder	Bolt	£2.04 £1.70
453360	AK453360 Available to backorder	Screw	£3.42 £2.85
453755	AK453755 Available to backorder	Bowden Drive Cable	£21.06 £17.55
453913	AK453913 Available to backorder	Ramp + Bearing	£15.10 £12.58
456024	AK456024 Available to backorder	Grass Box Bottom	£44.12 £36.77
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
464452	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£31.20 £26.00
470161	AK470161 Available to backorder	Spring - Side Door	£5.28 £4.40
470237	AK470237 Available to backorder	Spacer 22mm	£0.98 £0.82
470240	AK470240 Available to backorder	Key	£3.84 £3.20
470325	AK470325 Available to backorder	Distance Plate	£1.86 £1.55
470419	AK470419 Available to backorder	Hv Lens / Cover	£5.02 £4.18
470423	AK470423 Available to backorder	Bearing Plate	£10.10 £8.42
470430	AK470430 Available to backorder	Front Axle Clamp	£1.52 £1.27
470435	AK470435 Available to backorder	Grass Flap Spring	£3.86 £3.22
470456	AK470456 Available to backorder	Belt	£18.24 £15.20
470459	AK470459 Available to backorder	Spring	£1.36 £1.13
470566	AK470566 Available to backorder	Cover	£5.60 £4.67
470765	AK470765 Available to backorder	Pulley	£24.58 £20.48
470834	AK470834 Available to backorder	Blade	£46.58 £38.82
470847	AK47084730 Available to backorder	Use Ak47084730	£6.26 £5.22
471071	AK471071 Available to backorder	Screw M6x25	£0.84 £0.70
474023	AK474023 Available to backorder	Spring	£6.26 £5.22
500071	AK456208 Available to backorder	Ak500071	£1.02 £0.85
500073	AK500073 In stock	Nut	£1.28 £1.07
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.66 £1.38
510434	AK525779 Available to backorder	Use Ak525779	£1.18 £0.98
513491	AK513491 In stock	Spring	£0.78 £0.65
518483	AK518483 Available to backorder	Screw St4 x 35mm	£0.84 £0.70
519385	AK519385 Available to backorder	Screw	£1.18 £0.98
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
692795	AK692795 Available to backorder	Nut	£1.18 £0.98
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700489	AK700489 In stock	Circlip	£0.78 £0.65
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
703302	AK703302 Available to backorder	Spacer 22mm	£4.58 £3.82
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704539	AK704539 Available to backorder	Washer	£0.70 £0.58
704540	AK704540 Available to backorder	Washer M12	£0.68 £0.57
705597	AK705597 Available to backorder	Clip	£0.84 £0.70
705598	AK705598VA Available to backorder	Nut	£0.91 £0.76
705723	AK705723 Available to backorder	Screw M6x10	£0.91 £0.76
705929	AK705929 Available to backorder	Roll Pin	£0.70 £0.58
705996	AK705996 Available to backorder	Screw	£0.70 £0.58
44122430	AK44122430 Available to backorder	Front Axle	£37.48 £31.23
44125801	AK44125801 Available to backorder	Cover Cap	£18.46 £15.38
44125901	AK441291 Available to backorder	Use Ak441291	£7.82 £6.52
44126230	AK44126230 Available to backorder	Rear Axle	£50.38 £41.98
44128202	AK44128202 Available to backorder	Cover	£15.28 £12.73
45296230	AK45296230 Available to backorder	Screw	£6.12 £5.10
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346502	AK46346502 Available to backorder	Box Cover	£4.90 £4.08
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£27.94 £23.28
46393702	AK46393702 Available to backorder	Cover	£3.62 £3.02
47015930	AK47015930 Available to backorder	Side Flap Bracket	£6.42 £5.35
47016030	AK47016030 Available to backorder	Bearing Rod Side Door	£5.42 £4.52
47016201	AK47016201 Available to backorder	Mulch Cover	£11.36 £9.47
47016301	AK47016301 Available to backorder	Side Discharge Chute	£14.74 £12.28
47018301	AK47018301 In stock	Cover - Black	£16.88 £14.07
47027101	AK47027101 Available to backorder	Transmission Cover	£12.58 £10.48
47027201	AK47027201 Available to backorder	Panel	£7.40 £6.17
47027302	AK47027302 Available to backorder	Grasp	£20.36 £16.97
47027401	AK47027401 Available to backorder	Cover	£8.58 £7.15
47027601	AK47027601 Available to backorder	Bumper	£8.32 £6.93
47027901	AK47027901 Available to backorder	Mulch Cover	£15.44 £12.87
47028001	AK47028001 Available to backorder	Bumper	£19.50 £16.25
47029601	AK47029601 Available to backorder	Cover Black	£30.04 £25.03
47032901	AK47032901 Available to backorder	Lh Bumper Cover	£10.18 £8.48
47034101	AK47034101 Available to backorder	R/H Bumper Cover	£7.12 £5.93
47036101	AK47036101 Available to backorder	Grass Box Frame	£52.06 £43.38
47040230	AK4704023010 Available to backorder	Use Ak4704023010	£10.46 £8.72
47041802	AK47041802 Available to backorder	Lever - Red Button	£1.60 £1.33
47042102	AK454961 Available to backorder	Use Ak47043802	£307.32 £256.10
47043630	AK47043630 Available to backorder	Bar	£2.04 £1.70
47045430	AK47045430 In stock	Sleeve	£3.08 £2.57
47056830	AK47056830 Available to backorder	Blade Boss 22mm	£61.46 £51.22
47058202	AK47058202 Available to backorder	Switch	£5.20 £4.33
47058330	AK47058330 Available to backorder	Plate	£13.50 £11.25
47058402	AK47058402 Available to backorder	Spacer	£2.88 £2.40
47402730	AK47402730 Available to backorder	Connecting Rod	£66.00 £55.00
47408801	AK47408801 Available to backorder	Rm 52 Alu	£14.08 £11.73
47425002	AK47425002 Available to backorder	Rear Discharge Flap	£18.92 £15.77
47465630	AK47465630 Available to backorder	Gear Bracket	£7.76 £6.47
47482501	AK47482501 Available to backorder	Housing	£49.56 £41.30
47482601	AK47482601 Available to backorder	Housing	£81.08 £67.57
