AL-KO SOLO 5275 - 127124 - Main Assembly: 2.2015 - 3.2015

Name: AL-KO SOLO 5275 - 127124 - Main Assembly: 2.2015 - 3.2015
SKU: AK127124_1_2_2015_3_2015-group
Price: 0.63 GBP
Availability: InStock

Part No. AK127124_1_2_2015_3_2015-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO SOLO 5275 - 127124 - Main Assembly: 2.2015 - 3.2015

Description

AL-KO SOLO 5275 - 127124 - Main Assembly - Parts Diagram

2.2015 - 3.2015

	Part No.	Details
118995	AK440126 In stock	Use Ak440126	£44.50 £37.08
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
336375	AK336375 Available to backorder	Screw 14mm	£0.82 £0.68
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
441227	AK441227 Available to backorder	Spacer	£15.72 £13.10
441256	AK457689 Available to backorder	Use Ak457689	£58.44 £48.70
441257	AK457698 Available to backorder	Front Wheel	£50.76 £42.30
441368	AK441368 Available to backorder	Spacer	£2.22 £1.85
441419	AK441419 Available to backorder	Gearbox	£114.24 £95.20
441448	AK441448 Available to backorder	Discharges Chute	£18.72 £15.60
452683	AK336003 Available to backorder	Screw	£1.04 £0.87
452693	AK452693 Available to backorder	Plate	£22.44 £18.70
453108	AK453108 Available to backorder	Screw 3/8 Unf - 50 (Wnu)	£3.48 £2.90
453749	AK453749 In stock	Bowden Cable Drive 1250mm Nhc	£23.00 £19.17
453913	AK453913 Available to backorder	Ramp + Bearing	£15.60 £13.00
455530	AK455530 Available to backorder	Handle	£6.48 £5.40
456010	AK456010 Available to backorder	Grassbox Lower	£37.08 £30.90
460312	AK460312 In stock	Spring	£6.84 £5.70
460361	AK460361 In stock	Spring	£2.04 £1.70
462701	AK462701 Available to backorder	Axle	£5.04 £4.20
462704	AK462704 Available to backorder	Spring	£9.12 £7.60
463015	AK463015 Available to backorder	Pin 18.6mm x 7.9mm	£1.79 £1.49
463830	AK463830 Available to backorder	Bar	£2.03 £1.69
464452	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
470143	AK470143 Available to backorder	Blade Boss 22mm	£16.80 £14.00
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£29.64 £24.70
470147	AK470147 Available to backorder	Bracket	£2.03 £1.69
470237	AK470237 Available to backorder	Spacer 22mm	£1.18 £0.98
470240	AK470240 Available to backorder	Key	£1.08 £0.90
470375	AK470375 Available to backorder	Screw 20mm	£0.86 £0.72
470765	AK470765 Available to backorder	Pulley	£25.44 £21.20
500073	AK500073 In stock	Nut	£1.48 £1.23
505075	AK505075 Available to backorder	Screw 15mm	£1.34 £1.12
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
513491	AK513491 In stock	Spring	£0.88 £0.73
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
548166	AK548166 Available to backorder	Belt	£20.16 £16.80
692795	AK692795 Available to backorder	Nut	£1.42 £1.18
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700489	AK700489 In stock	Circlip	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701686	AK701686 Available to backorder	Screw M5x16	£1.01 £0.84
701889	AK701889 In stock	Washer 8mm	£1.38 £1.15
703146	AK703146 Available to backorder	Clip	£0.82 £0.68
703302	AK703302 Available to backorder	Spacer 22mm	£4.68 £3.90
704068	AK704068 In stock	Pawl	£0.88 £0.73
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
705077	AK705077 Available to backorder	Screw M6x60	£1.22 £1.02
705596	AK705596 Available to backorder	Bolt	£0.76 £0.63
705597	AK705597 Available to backorder	Clip	£1.06 £0.88
705598	AK705598VA Available to backorder	Nut	£0.86 £0.72
705634	AK706562 Available to backorder	Screw	£0.84 £0.70
705968	AK705968 Available to backorder	Screw M6x15	£0.83 £0.69
44125801	AK44125801 Available to backorder	Cover Cap	£19.08 £15.90
44125901	AK441291 Available to backorder	Use Ak441291	£8.04 £6.70
44127902	AK44127902 Available to backorder	Front Panel	£31.44 £26.20
44128330	AK44128330 Available to backorder	Front Axle 46-52 Steel	£41.28 £34.40
44128430	AK44128430 Available to backorder	Ak44128430	£48.60 £40.50

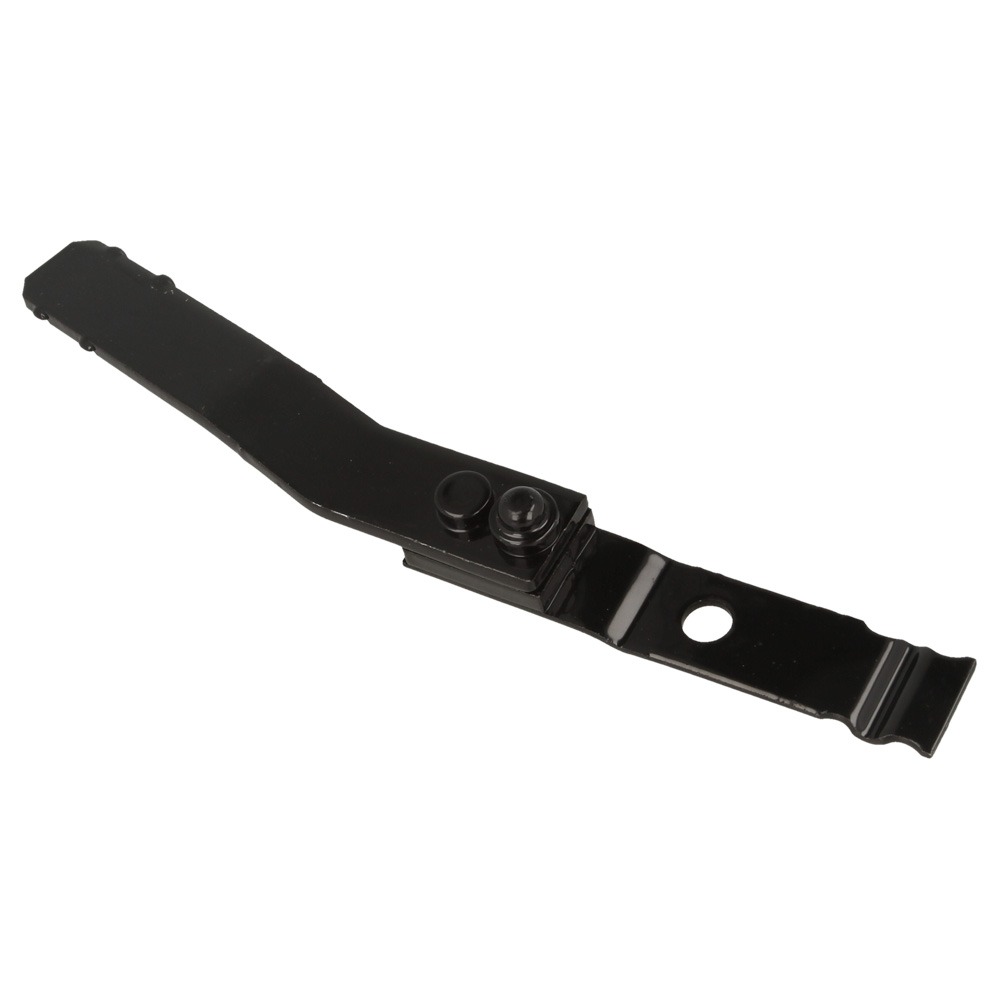

44143530	AK44143530 Available to backorder	Height Adjuster Lever	£27.36 £22.80
46026701	AK46026701 In stock	Rear Frame	£28.72 £23.93
46027301	AK46027301 Available to backorder	Bearing	£2.58 £2.15
46031830	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
46036401	AK46036401 Available to backorder	Axle Block	£2.40 £2.00
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46051330	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
46266301	AK46266301 In stock	Mulch Plug	£18.36 £15.30
46266401	AK46266401 In stock	Belt Guard	£13.43 £11.19
46266601	AK44239401 Available to backorder	Flap	£10.68 £8.90
46308501	AK46308530 Available to backorder	Use Ak46308530	£7.68 £6.40
46346401	AK46346401 Available to backorder	Cover	£1.32 £1.10
46346502	AK46346502 Available to backorder	Box Cover	£5.04 £4.20
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£28.92 £24.10
46346702	AK46346702 Available to backorder	Flap	£14.64 £12.20
46366701	AK46366701 Available to backorder	Bag Frame	£41.88 £34.90
46367201	AK46367201 Available to backorder	Bumper	£33.72 £28.10
46369501	AK46369501 Available to backorder	Cover	£6.12 £5.10
46393702	AK46393702 Available to backorder	Cover	£3.72 £3.10
46398701	AK46398701 Available to backorder	Connecting Rod	£37.20 £31.00
47014102	AK47014102 Available to backorder	Deck - Red	£89.76 £74.80
47023601	AK47023601 Available to backorder	Distance Ring	£16.68 £13.90
52753730	AK527537 In stock	Use Ak527537	£2.95 £2.46
