AL-KO SOLO 4238 - 127454 - Main Assembly: 11.2017 - 3.2019

Name: AL-KO SOLO 4238 - 127454 - Main Assembly: 11.2017 - 3.2019
SKU: AK127454_1_11_2017_3_2019-group
Price: 0.34 GBP
Availability: InStock

Part No. AK127454_1_11_2017_3_2019-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO SOLO 4238 - 127454 - Main Assembly: 11.2017 - 3.2019

Description

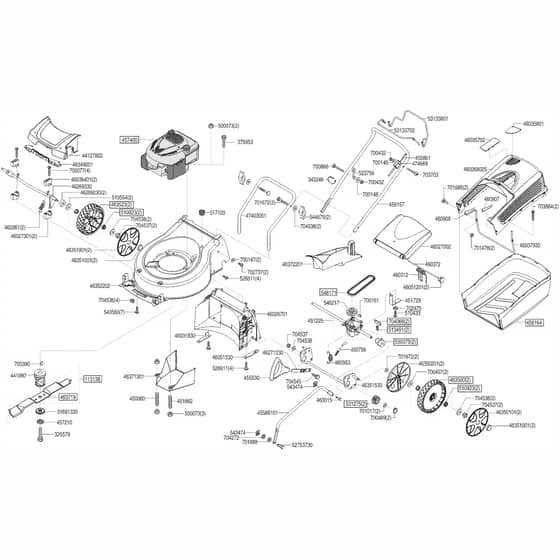

AL-KO SOLO 4238 - 127454 - Main Assembly - Parts Diagram

11.2017 - 3.2019

	Part No.	Details
113138	AK463719 In stock	Spare Blade -463719- Rm 42 cm	£33.56 £27.97
325579	AK457346 In stock	Use Ak457346	£2.50 £2.08
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
441980	AK441980 Available to backorder	Blade Boss 22.2mm	£20.16 £16.80
450080	AK450080 Available to backorder	Grubscrew	£1.74 £1.45
450756	AK450756 In stock	Gearbox Cable	£21.64 £18.03
451662	AK451662 Available to backorder	Bar Stud M8x55	£1.66 £1.38
451729	AK451729 Available to backorder	Plate	£6.96 £5.80
455530	AK455530 Available to backorder	Handle	£6.48 £5.40
455861	AK455861 In stock	Cable	£21.64 £18.03
456164	AK456164 Available to backorder	Fabric Grass Box Lower	£31.92 £26.60
457210	AK457210 Available to backorder	Nla - Washer	£1.01 £0.84
460312	AK460312 In stock	Spring	£6.84 £5.70
460361	AK460361 In stock	Spring	£2.04 £1.70
460372	AK460372 In stock	Rod	£1.88 £1.57
460907	AK460907 Available to backorder	Plate Lh	£2.96 £2.47
460908	AK460908 Available to backorder	Plate Rh	£2.96 £2.47
460953	AK460953 Available to backorder	Spring	£4.92 £4.10
463015	AK463015 Available to backorder	Pin 18.6mm x 7.9mm	£1.79 £1.49
463500	AK463500 Available to backorder	Rear Drive Wheel	£22.68 £18.90
463523	AK463523 In stock	Front Wheel - 180mm	£19.64 £16.37
474669	AK474669 In stock	Cable Holder	£4.36 £3.63
500073	AK500073 In stock	Nut	£1.48 £1.23
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
544675	AK544675 Available to backorder	Wingnut M8 - Black	£3.04 £2.53
546217	AK546217 Available to backorder	Pulley	£14.40 £12.00
548171	AK548171 In stock	Toothed Belt	£20.51 £17.09
700147	AK703451 In stock	Ak700147	£1.03 £0.86
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700489	AK700489 In stock	Circlip	£0.89 £0.74
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701686	AK701686 Available to backorder	Screw M5x16	£1.01 £0.84
701889	AK701889 In stock	Washer 8mm	£1.38 £1.15
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702475	AK702475 Available to backorder	Washer	£0.84 £0.70
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
703884	AK703884 Available to backorder	Screw	£1.01 £0.84
704068	AK704068 In stock	Pawl	£0.88 £0.73
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
705077	AK705077 Available to backorder	Screw M6x60	£1.22 £1.02
31691330	AK31691330 Available to backorder	Washer	£2.96 £2.47
46026701	AK46026701 In stock	Rear Frame	£28.72 £23.93
46027002	AK46027002 Available to backorder	Grass Flap	£14.64 £12.20
46027301	AK46027301 Available to backorder	Bearing	£2.58 £2.15
46031830	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
46035702	AK46035701 Available to backorder	Use Ak46035701	£1.42 £1.18
46035801	AK46035801 Available to backorder	Cover - Black	£1.39 £1.16
46036401	AK46036401 Available to backorder	Axle Block	£2.40 £2.00
46037930	AK46037930 Available to backorder	Grassbox Frame	£17.04 £14.20
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46051330	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£39.36 £32.80
46271330	AK46271330 Available to backorder	Lever	£12.12 £10.10
46349001	AK46349001 Available to backorder	Plate	£14.04 £11.70
46350101	AK46350101 Available to backorder	Wheel Cover D220 R9005	£7.44 £6.20
46350201	AK46350201 Available to backorder	Cover	£2.77 £2.31
46351001	AK46351040 Available to backorder	Use Ak46351040	£0.89 £0.74
46351530	AK46351530 Available to backorder	Axle	£44.76 £37.30
46351901	AK46351901 Available to backorder	Wheel Cover - Front	£5.40 £4.50
46352202	AK46352240 Available to backorder	Use Ak46352240	£74.40 £62.00
46371301	AK46371301 In stock	Belt Guard	£10.07 £8.39
46372201	AK46372201 Available to backorder	Mulch Plug	£17.16 £14.30
47403001	AK47403001 Available to backorder	Lower Handle	£35.04 £29.20
52753730	AK527537 In stock	Use Ak527537	£2.95 £2.46
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133801	AK5313381014 In stock	Drive Handle Use Ak53133840	£16.56 £13.80
