AL-KO Silver 520 - 119137 - Main Assembly: from 6.2012

Name: AL-KO Silver 520 - 119137 - Main Assembly: from 6.2012
SKU: AK119137_1_from_6_2012-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Silver 520 - 119137 - Main Assembly: from 6.2012

Description

AL-KO Silver 520 - 119137 - Main Assembly - Parts Diagram

from 6.2012

Be the first to review this product

0 product questions

	Part No.	Details
118701	AK118701 Available to backorder	Grass Box Complete Black	£76.52 £63.77
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
450757	AK450757 Available to backorder	Screw 20mm	£0.84 £0.70

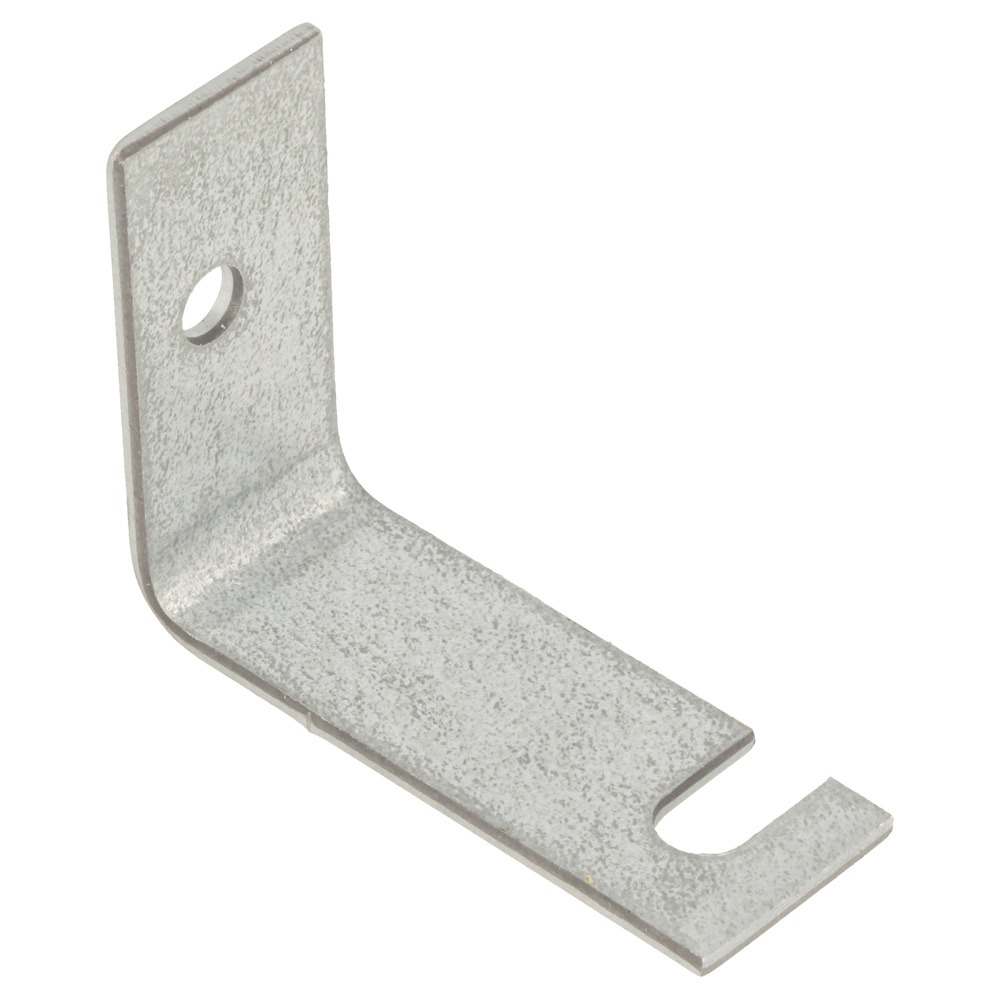

451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451796	AK451849 In stock	Use Ak451849	£21.92 £18.27
451994	AK451994 In stock	Spring	£2.47 £2.06
453808	AK453818 Available to backorder	Upper Handle	£50.36 £41.97
460312	AK460312 Available to backorder	Spring	£6.56 £5.47

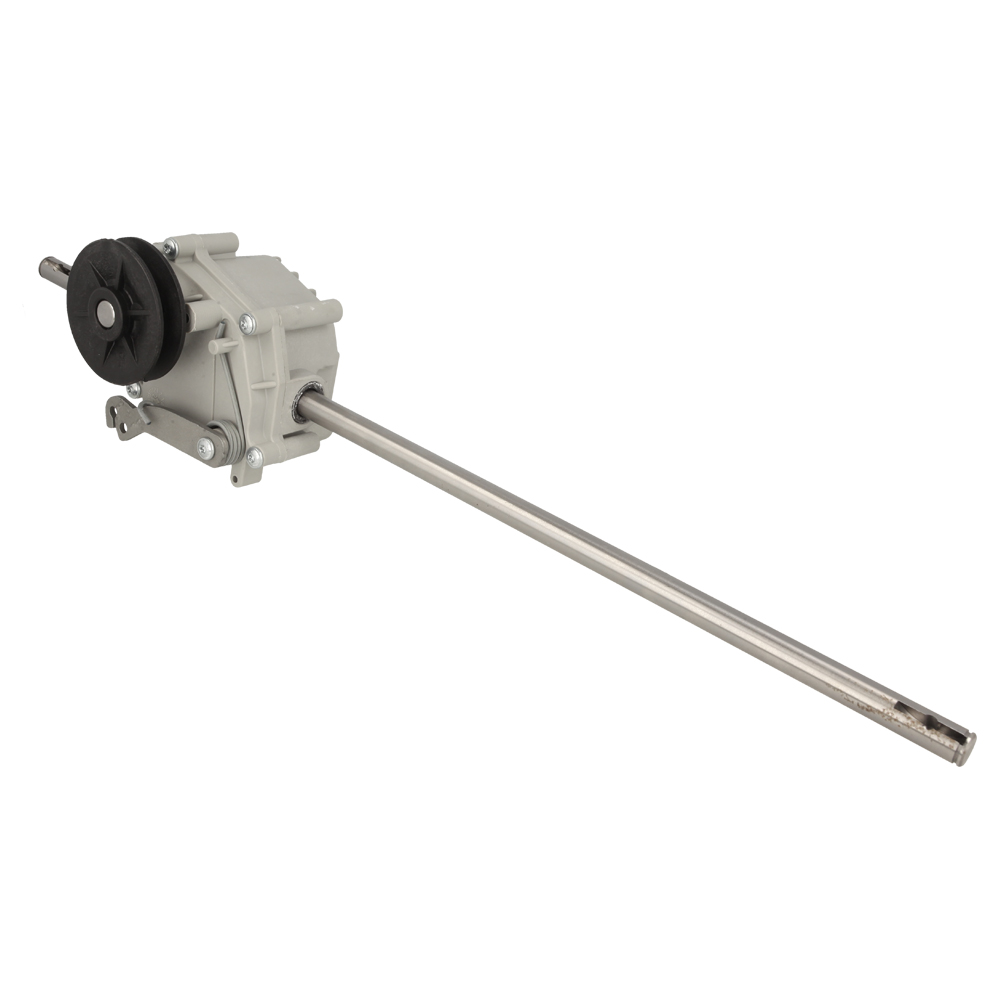

460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462675	AK46267501 Available to backorder	Use Ak46267501	£4.28 £3.57
462704	AK462704 Available to backorder	Spring	£8.80 £7.33
462705	AK440126 In stock	Use Ak440126	£46.27 £38.56

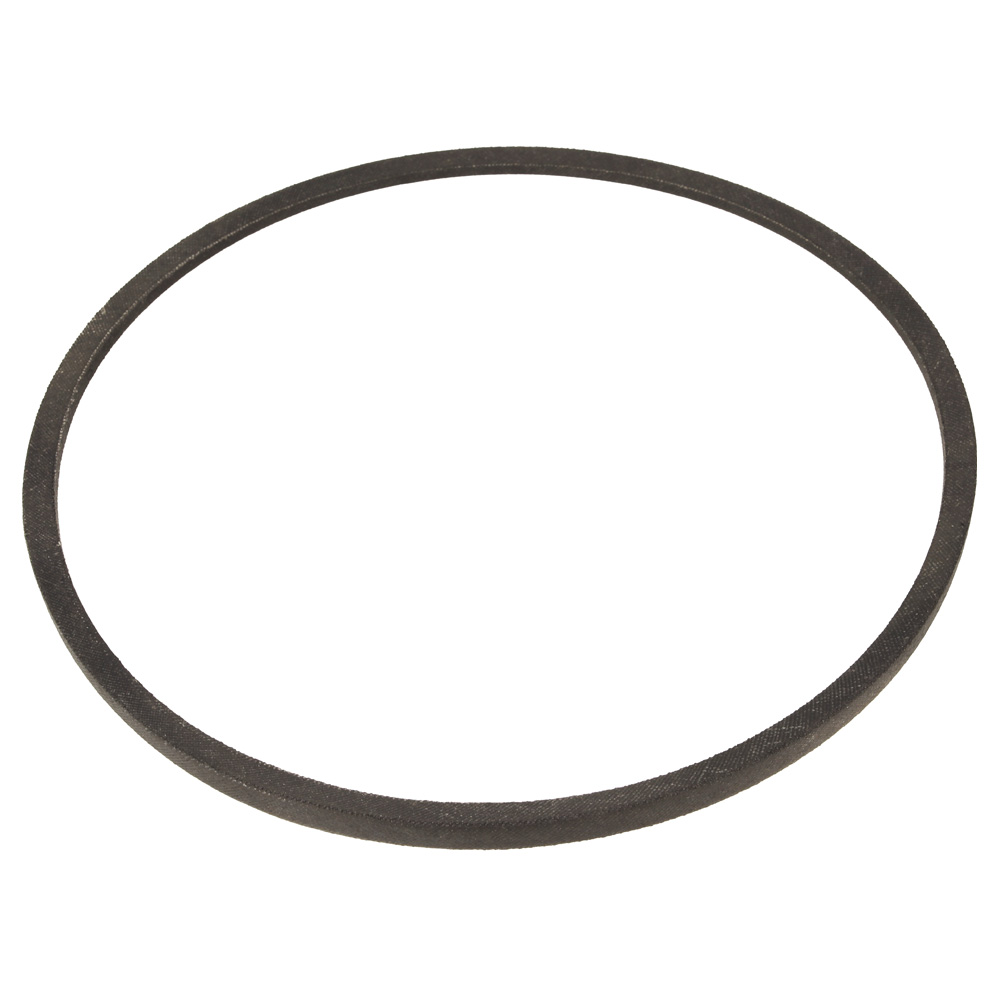

462714	AK462714 In stock	Belt	£19.21 £16.01
463015	AK463015 Available to backorder	Pin 18.6mm x 7.9mm	£1.86 £1.55
463962	AK463962 In stock	Blade Holder - 22mm	£20.78 £17.32
474783	AK474783 Available to backorder	Rear Wheel	£24.32 £20.27
500073	AK500073 In stock	Nut	£1.28 £1.07
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40

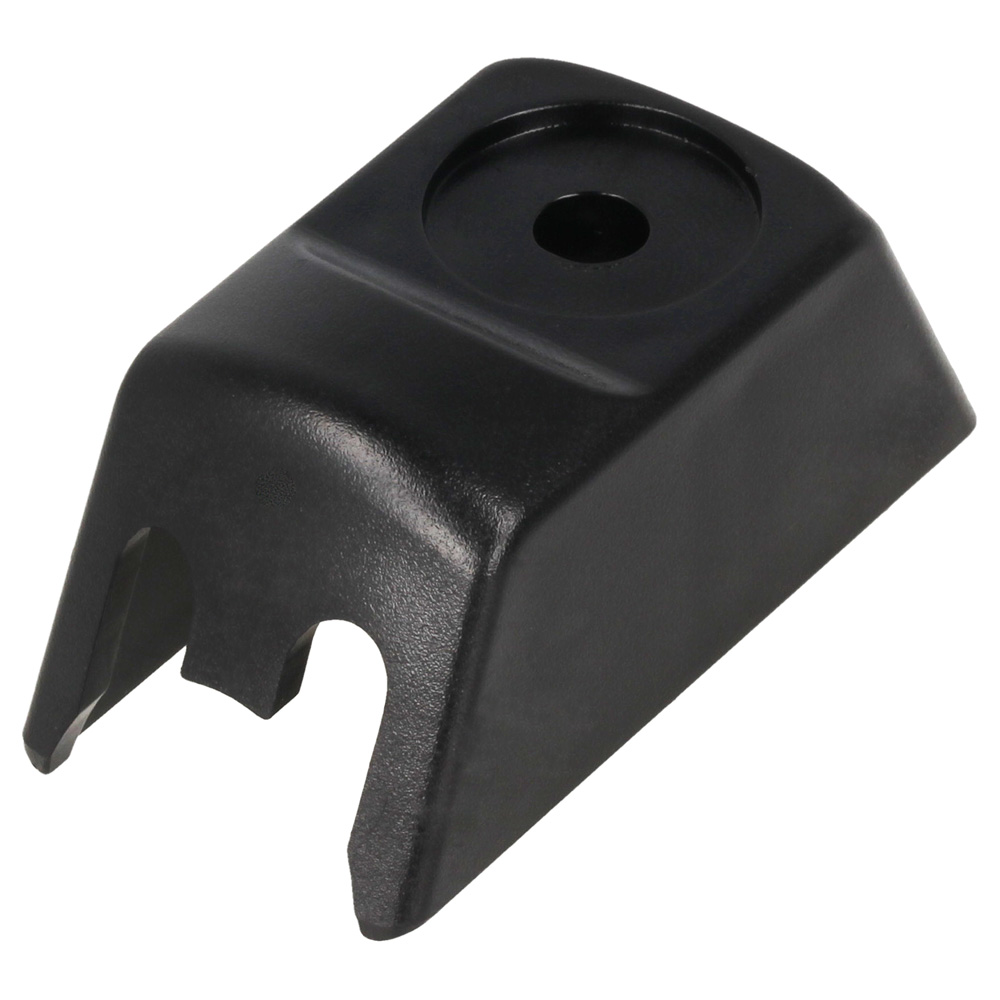

518925	AK474669 In stock	Cable Holder	£4.61 £3.84
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523378	AK523378 Available to backorder	Opc Cable - Dog End	£21.32 £17.77
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
530773	AK530773 Available to backorder	Screw 80mm	£1.86 £1.55
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80

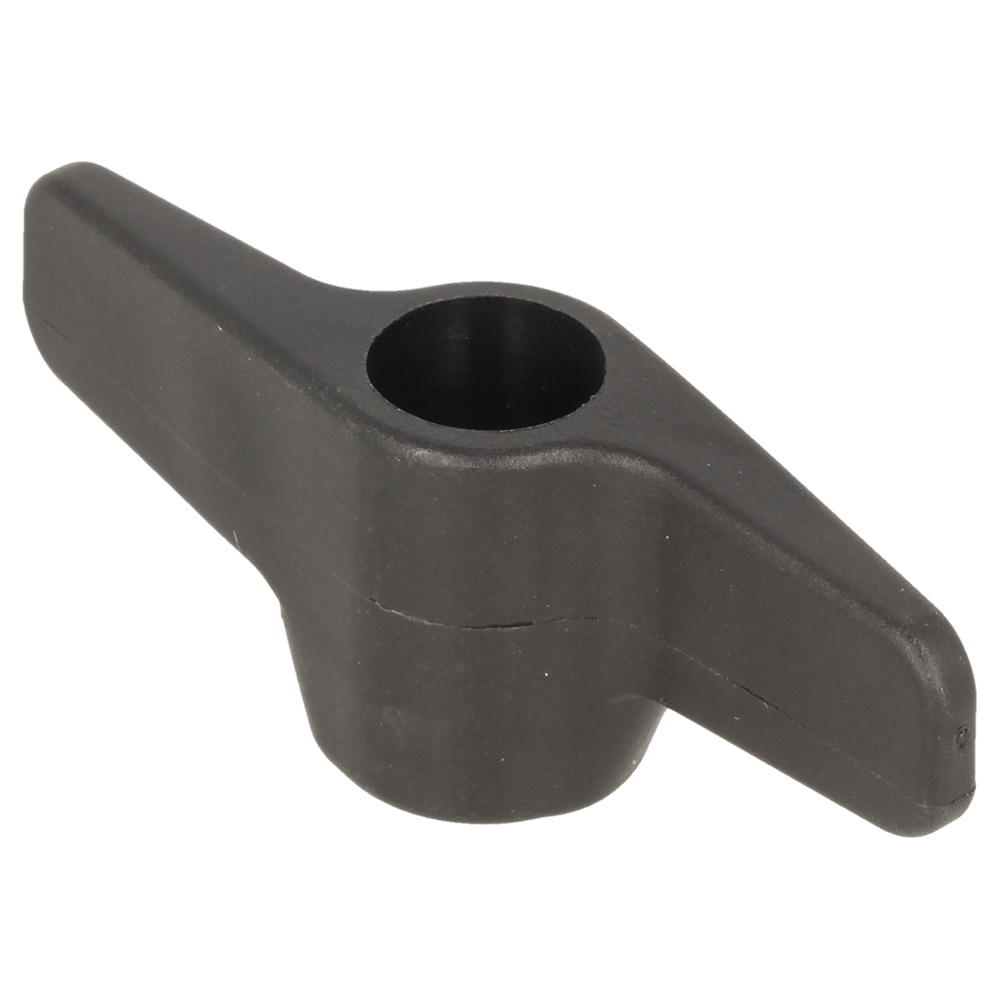

544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700147	AK703451 Available to backorder	Ak700147	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700682	AK700682 Available to backorder	Bolt	£0.70 £0.58
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
703146	AK703146 Available to backorder	Clip	£0.68 £0.57
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704138	AK705968 Available to backorder	Use Ak705968	£0.72 £0.60
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
46026601	AK46026601 Available to backorder	Front Cover	£12.04 £10.03
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46026940	AK46026940 Available to backorder	Lower Box (Grey)	£25.64 £21.37
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46031830	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
46035701	AK46035701 Available to backorder	Cover	£1.18 £0.98
46035840	AK46035801 Available to backorder	Use Ak46035801	£1.25 £1.04
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46051330	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
46266301	AK46266301 In stock	Mulch Plug	£19.39 £16.16
46266401	AK46266401 In stock	Belt Guard	£14.16 £11.80
46266601	AK44239401 Available to backorder	Flap	£10.36 £8.63
46266701	AK46266701 Available to backorder	Side Discharge Chute	£12.44 £10.37
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46269901	AK46269901 Available to backorder	Connecting Rod	£33.28 £27.73
46270130	AK462701 Available to backorder	Use Ak462701	£4.84 £4.03
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46308501	AK46308530 Available to backorder	Use Ak46308530	£7.40 £6.17

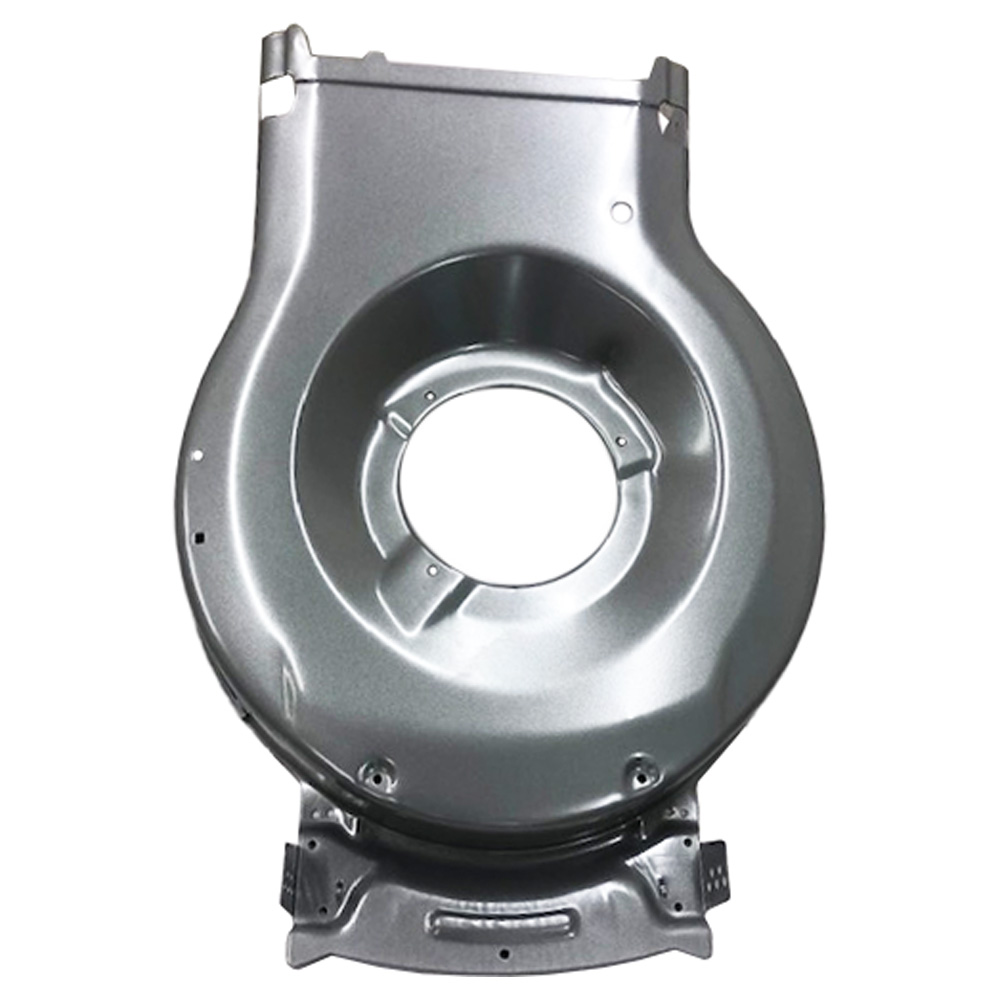

46310340	AK46310340 Available to backorder	Housing	£101.63 £84.69
47403040	AK47403040 Available to backorder	Lower Handle	£23.42 £19.52
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133840	AK53133840 Available to backorder	Drive Handle - Silver	£15.92 £13.27
