AL-KO R85.1 Li Battery Rider - 127617 - Body Panels

Description

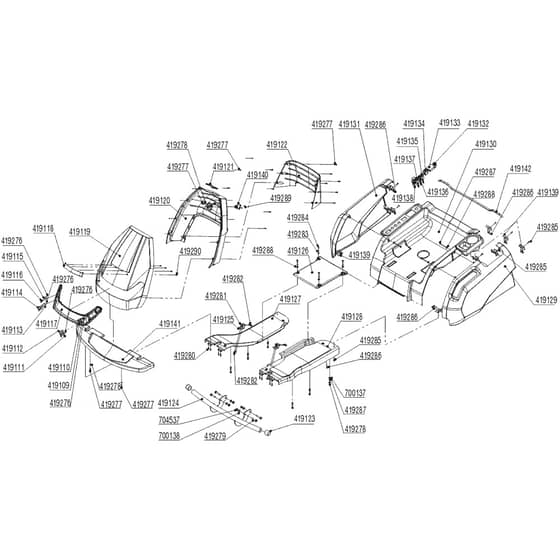

AL-KO R85.1 Li Battery Rider - 127617 - Body Panels - Parts Diagram

	Part No.	Details
419109	AK419109 Available to backorder	Light Plate Left A	£8.04 £6.70
419110	AK419110 Available to backorder	Light Cover Left A	£2.94 £2.45
419111	AK419111 Available to backorder	Light Plate Left B	£8.04 £6.70
419112	AK419112 Available to backorder	Light Cover Left B	£2.94 £2.45
419113	AK419113 Available to backorder	Light Plate Right B	£8.04 £6.70
419114	AK419114 Available to backorder	Light Cover Right B	£2.94 £2.45
419115	AK419115 Available to backorder	Light Plate Right A	£8.04 £6.70
419116	AK419116 Available to backorder	Light Cover Right A	£2.94 £2.45
419117	AK419117 Available to backorder	Light Base	£20.88 £17.40
419118	AK419118 Available to backorder	Cover	£4.68 £3.90
419119	AK419119 Available to backorder	Pedestal Cover Front	£63.36 £52.80
419120	AK419120 Available to backorder	Pedestal Cover Centre	£47.52 £39.60
419121	AK419121 Available to backorder	Cover	£3.72 £3.10
419122	AK419122 Available to backorder	Pedestal Cover Rear	£18.96 £15.80
419123	AK419123 Available to backorder	Cap	£498.26 £415.22
419124	AK419124 Available to backorder	Bumper	£63.36 £52.80
419125	AK419125 Available to backorder	Bracket B	£3.72 £3.10
419126	AK419126 Available to backorder	Centre Cover	£29.76 £24.80
419127	AK419127 Available to backorder	Footplate Rh	£95.04 £79.20
419128	AK419128 Available to backorder	Footplate Lh	£95.04 £79.20
419129	AK419129 Available to backorder	Fender Lh	£63.36 £52.80
419130	AK419130 Available to backorder	Body Panel	£87.12 £72.60
419131	AK419131 Available to backorder	Fender Rh	£63.36 £52.80
419132	AK419132 Available to backorder	Start Switch	£42.00 £35.00
419133	AK419133 Available to backorder	Display	£87.12 £72.60
419134	AK419134 Available to backorder	Forward/Reverse Switch	£35.16 £29.30
419135	AK419135 Available to backorder	Cruise Control	£28.44 £23.70
419136	AK419136 Available to backorder	Light Switch	£28.44 £23.70
419137	AK419137 Available to backorder	Reverse Cut Switch	£28.44 £23.70
419138	AK419138 Available to backorder	Cutter Switch	£58.68 £48.90
419139	AK419139 Available to backorder	Bracket A	£8.88 £7.40
419140	AK419140 Available to backorder	Charging Connector	£36.48 £30.40
419141	AK419141 Available to backorder	Front Fender	£34.92 £29.10
419142	AK419142 Available to backorder	Sealing Strip	£2.53 £2.11
419276	AK419276 Available to backorder	Screw M2x5	£0.96 £0.80
419277	AK419277 Available to backorder	Screw M4x16	£0.96 £0.80
419278	AK419278 Available to backorder	Washer	£2.11 £1.76
419279	AK419279 Available to backorder	Bolt	£1.25 £1.04
419280	AK419280 Available to backorder	Screw	£1.25 £1.04
419281	AK419281 Available to backorder	Nut M4	£0.96 £0.80
419282	AK419282 Available to backorder	Screw M4x12	£0.96 £0.80
419283	AK419283 Available to backorder	Spring Washer - M6	£0.96 £0.80
419284	AK419284 Available to backorder	Screw - M6x16	£0.96 £0.80
419285	AK419285 Available to backorder	Screw St4.2x16	£0.96 £0.80
419286	AK419286 Available to backorder	Screw M5x16	£0.96 £0.80
419287	AK419287 Available to backorder	Screw M5x50	£1.22 £1.02
419288	AK419288 Available to backorder	Washer - M5	£18.96 £15.80
419289	AK419289 Available to backorder	Screw 3x16	£0.96 £0.80
419290	AK419290 Available to backorder	Screw 3.5x10	£0.96 £0.80
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700138	AK704538 In stock	Washer M8	£1.09 £0.91
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
