AL-KO R7-65 HD Hydrostatic Rider - 127487 - Bodywork: before 12.2018

Description

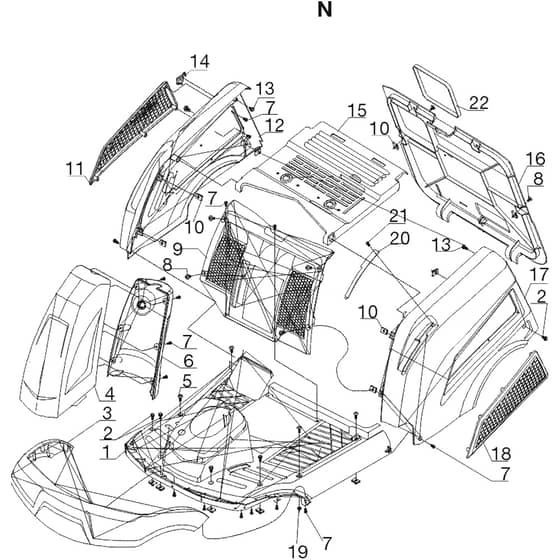

AL-KO R7-65 HD Hydrostatic Rider - 127487 - Bodywork - Parts Diagram

before 12.2018

	Part No.	Details

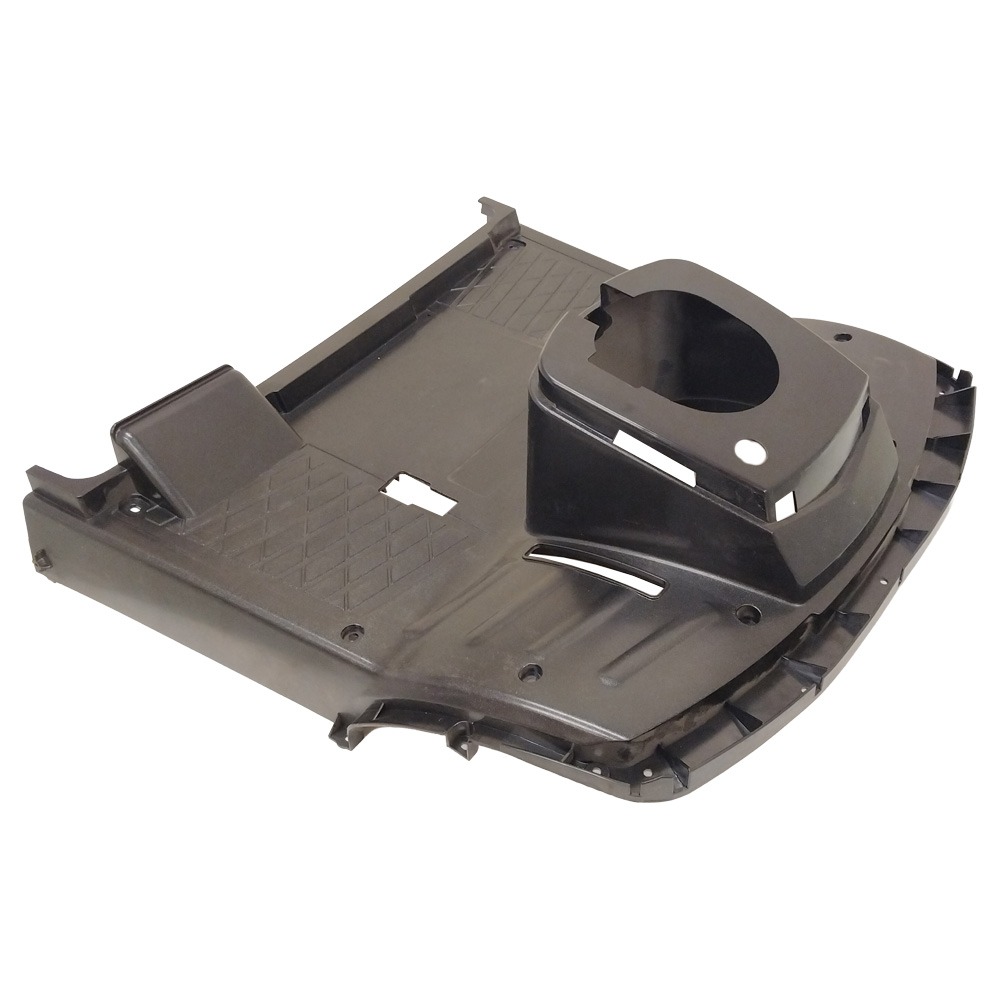

1	AK418761 Available to backorder	Foot Plate	£121.20 £101.00
2	AK417498 Available to backorder	Screw	£0.84 £0.70
3	AK416199 Available to backorder	Cover Bumper	£33.00 £27.50
4	AK418762 Available to backorder	Steering Shroud - Front	£37.56 £31.30
5	AK416082 Available to backorder	Bolt M6x20	£3.96 £3.30
6	AK416201 Available to backorder	Steering Shroud - Rear	£12.96 £10.80
7	AK416202 Available to backorder	Screw	£1.86 £1.55
8	AK416050 Available to backorder	Screw M6x16	£3.96 £3.30
9	AK416203 Available to backorder	Panel	£23.88 £19.90
10	AK416161 Available to backorder	Captive Nut	£2.42 £2.02
11	AK416204 Available to backorder	Grille Rh	£19.08 £15.90
12	AK416205 In stock	Side Panel - R/H (Eyelet - Ak41620-1)	£52.44 £43.70
13	AK417475 Available to backorder	Cutting Screw St6x16	£0.84 £0.70
14	AK417499 Available to backorder	Cap	£1.42 £1.18
15	AK416207 Available to backorder	Engine Cover	£19.68 £16.40
16	AK493327 Available to backorder	Back Plate	£62.88 £52.40
17	AK418764 Available to backorder	Side Panel - Lh	£55.68 £46.40
18	AK416210 Available to backorder	Grille - L/H	£19.08 £15.90
19	AK416110 Available to backorder	Nut	£2.42 £2.02
22	AK417500 Available to backorder	Seal	£2.42 £2.02
