AL-KO R7-62.5 - 127306 - Transmission Drive

AL-KO R7-62.5 - 127306 - Transmission Drive

Description

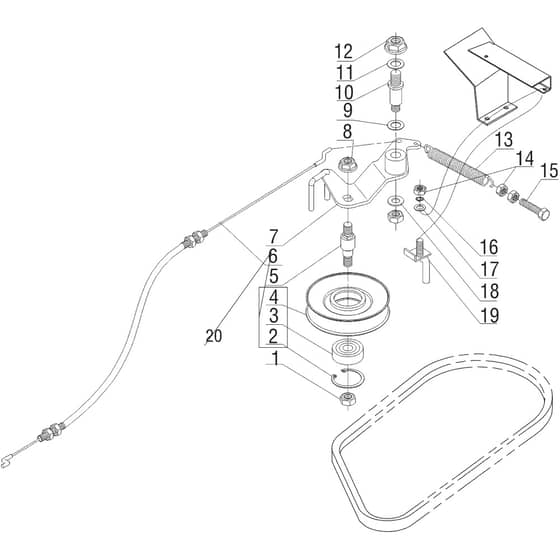

AL-KO R7-62.5 - 127306 - Transmission Drive - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		AK416069 Available to backorder	Locking Nut M10x1.25		£1.36 £1.13
	5		AK416071 Available to backorder	Tension Pulley Shaft		£23.14 £19.28
	6		AK417503 Available to backorder	Cable		£35.80 £29.83
	7		AK416097 Available to backorder	Idler Arm		£44.04 £36.70
	8		AK416072 Available to backorder	Hex Lock Nut M10x1.25		£8.64 £7.20
	9		AK416073 Available to backorder	Shim		£1.26 £1.05
	10		AK416098 Available to backorder	Pivot Bolt		£6.42 £5.35
	11		AK416075 Available to backorder	Washer		£1.26 £1.05
	12		AK416099 Available to backorder	Nut M12x1.25		£0.84 £0.70
	13		AK416083 Available to backorder	Spring 2x12		£12.64 £10.53
	14		AK416057 Available to backorder	Nut M8 Lh		£8.64 £7.20
	15		AK416100 Available to backorder	Bolt		£8.30 £6.92
	16		AK416101 Available to backorder	Spring Washer M8		£0.70 £0.58
	17		AK416085 Available to backorder	Washer		£3.82 £3.18
	18		AK416102 Available to backorder	Washer		£4.42 £3.68
	19		AK416103 Available to backorder	Bracket		£19.48 £16.23
	20		AK416070 Available to backorder	Pulley Complete		£35.80 £29.83

Description

AL-KO R7-62.5 - 127306 - Transmission Drive - Parts Diagram
