AL-KO R7-62.5 - 127306 - Ride On Mower Parts
AL-KO R7-62.5 - 127306 - Full

AL-KO R7-62.5 - 127306 - Full

Part No. AK127306_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO R7-62.5 - 127306 - Full

AL-KO R7-62.5 - 127306 - Full

Description

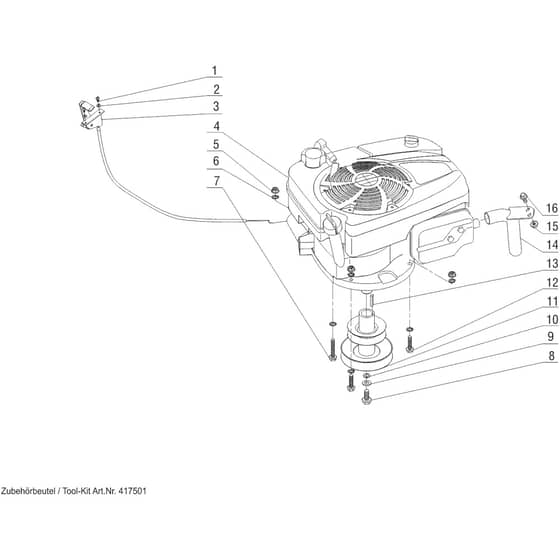

AL-KO R7-62.5 - 127306 - Full - Parts Diagram

Ref.		Img.	Part No.	Details
	1		AK416000 Available to backorder	Screw M4		£1.51 £1.26
	2		AK416001 Available to backorder	Washer M4		£1.51 £1.26
	3		AK416002 Available to backorder	Cable		£25.32 £21.10
	5		AK416005 Available to backorder	Nut M8		£2.42 £2.02
	6		AK417460 Available to backorder	Shakeproof Washer		£2.08 £1.73
	7		AK416006 Available to backorder	Bolt		£7.92 £6.60
	8		AK416007 Available to backorder	Centre Bolt		£8.88 £7.40
	9		AK416008 Available to backorder	Washer M10		£2.08 £1.73
	10		AK416009 Available to backorder	Spring Washer M10		£2.08 £1.73
	11		AK416010 Available to backorder	Engine Pulley		£59.88 £49.90
	12		AK416011 Available to backorder	Bolt M8x35		£3.96 £3.30
	13		AK416012 Available to backorder	Key		£2.42 £2.02
	14		AK416013 Available to backorder	Exhaust Manifold		£50.52 £42.10
	15		AK416014 Available to backorder	Nut M6		£8.88 £7.40
	16		AK416015 Available to backorder	Bolt M6x16		£1.51 £1.26
	417501		AK417501 Available to backorder	Tool Bag		£24.24 £20.20

Description

AL-KO R7-62.5 - 127306 - Full - Parts Diagram
