AL-KO R7-62.5 - 127306 - Ride On Mower Parts
AL-KO R7-62.5 - 127306 - Chassis

AL-KO R7-62.5 - 127306 - Chassis

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO R7-62.5 - 127306 - Chassis

AL-KO R7-62.5 - 127306 - Chassis

Description

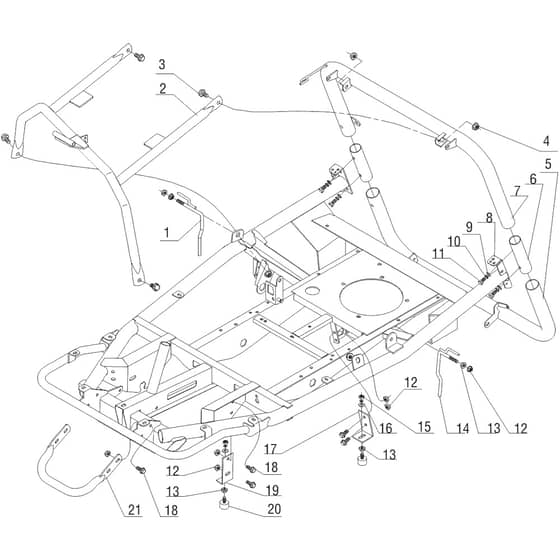

AL-KO R7-62.5 - 127306 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		AK416145 Available to backorder	Belt Guide Right		£5.74 £4.78

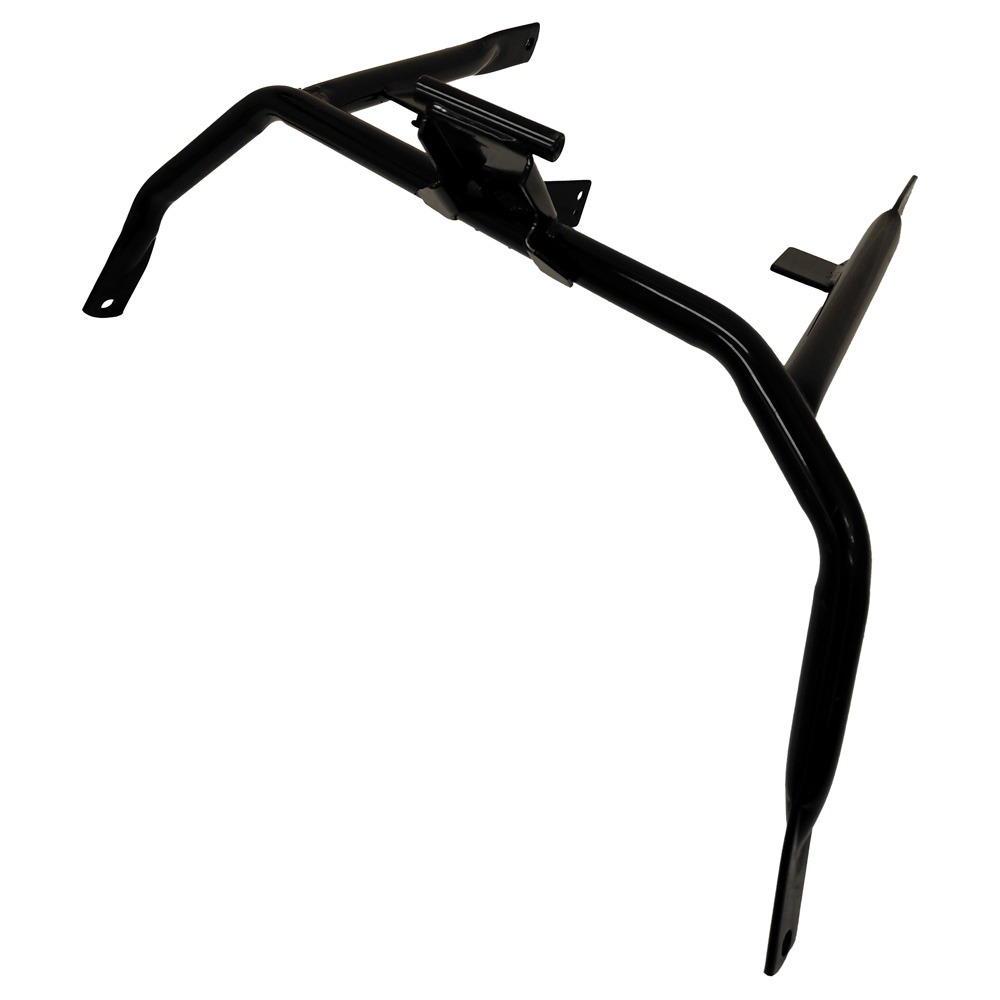

	2		AK416146 Available to backorder	Frame - Upper		£29.68 £24.73
	3		AK416147 Available to backorder	Bolt		£7.88 £6.57
	4		AK416148 Available to backorder	Nut		£8.64 £7.20
	5		AK416149 Available to backorder	Frame - Rear Lower		£52.28 £43.57
	6		AK416150 Available to backorder	Frame		£38.26 £31.88
	7		AK416151 Available to backorder	Frame - Rear/Upper		£57.54 £47.95
	8		AK416152 Available to backorder	Chassis		£298.20 £248.50
	9		AK417484 Available to backorder	Washer		£1.26 £1.05
	10		AK416101 Available to backorder	Spring Washer M8		£0.70 £0.58
	11		AK416153 Available to backorder	Bolt M8x25		£5.28 £4.40
	12		AK416005 Available to backorder	Nut M8		£2.22 £1.85
	13		AK416034 Available to backorder	Safety Fitting M8		£2.22 £1.85
	14		AK416154 Available to backorder	Rod		£20.72 £17.27
	15		AK416057 Available to backorder	Nut M8 Lh		£8.64 £7.20
	16		AK416085 Available to backorder	Washer		£3.82 £3.18
	17		AK416155 Available to backorder	Bracket		£8.48 £7.07
	18		AK416032 Available to backorder	Bolt M8x20		£5.28 £4.40
	19		AK416156 Available to backorder	Bracket		£27.70 £23.08
	20		AK416157 Available to backorder	Av Mount		£10.60 £8.83
	21		AK416158 Available to backorder	Bumper		£44.04 £36.70

Description

AL-KO R7-62.5 - 127306 - Chassis - Parts Diagram
