AL-KO R13-72.5 HD - 127311 - Ride On Mower Parts
AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel

AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel

Part No. AK127311_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel

AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel

Description

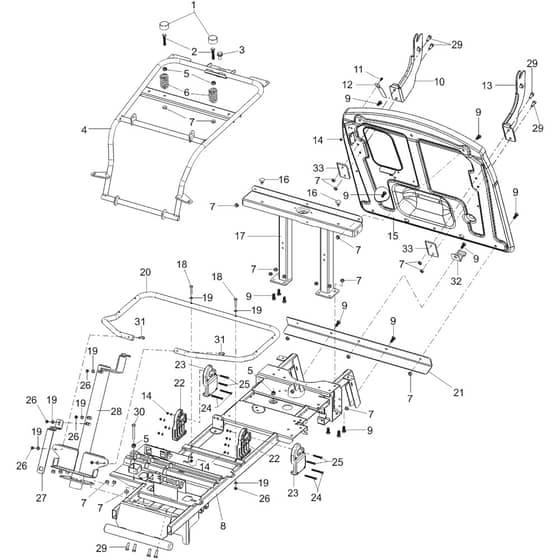

AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel - Parts Diagram

Ref.		Img.	Part No.	Details
	1		AK417037 Available to backorder	Catch		£5.28 £4.40
	2		AK700376 Available to backorder	Washer		£0.84 £0.70
	6		AK417040 Available to backorder	Seat Spring		£13.80 £11.50
	10		AK417043 Available to backorder	Box Holding Arm Right		£66.84 £55.70
	11		AK700370 Available to backorder	Shr 5x 10 Din933- 8.8 A3B		£0.58 £0.48
	12		AK417044 Available to backorder	Clip		£16.68 £13.90
	13		AK417045 Available to backorder	Box Holding Arm Left		£66.84 £55.70
	14		AK700119 Available to backorder	Mother		£1.85 £1.54
	19		AK706562 Available to backorder	Screw		£0.84 £0.70
	26		AK417057 Available to backorder	Mother		£1.51 £1.26
	30		AK700240 Available to backorder	Washer M5		£1.42 £1.18
	32		AK417062 Available to backorder	Box Lock		£14.40 £12.00

Description

AL-KO R13-72.5 HD - 127311 - Chassis - Rear Panel - Parts Diagram
