AL-KO Premium T23-125.6 HD V2 - 127384 - Transmission - Rear Wheels: 5.2018 - 2.2019

Name: AL-KO Premium T23-125.6 HD V2 - 127384 - Transmission - Rear Wheels: 5.2018 - 2.2019
SKU: AK127384_4_5_2018_2_2019-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T23-125.6 HD V2 - 127384 - Transmission - Rear Wheels: 5.2018 - 2.2019

Description

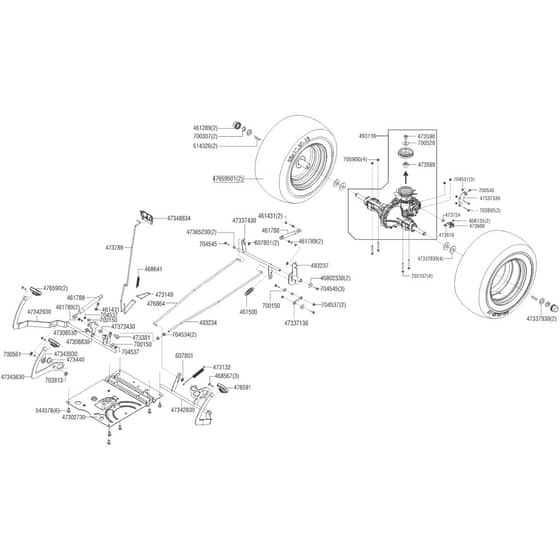

AL-KO Premium T23-125.6 HD V2 - 127384 - Transmission - Rear Wheels - Parts Diagram

5.2018 - 2.2019

Be the first to review this product

0 product questions

	Part No.	Details
461289	AK461289 Available to backorder	Cap	£4.60 £3.83
461431	AK461431 Available to backorder	Nut	£0.70 £0.58
461500	AK461500 Available to backorder	Spring	£4.02 £3.35
461788	AK461788 Available to backorder	Damper	£77.38 £64.48
461789	AK461789 Available to backorder	Joint	£4.58 £3.82
468567	AK468567 Available to backorder	Screw M6x22 Starhead	£1.18 £0.98
468641	AK468641 Available to backorder	Spring	£1.84 £1.53
473132	AK473132 Available to backorder	Return Spring	£3.56 £2.97
473149	AK473149 Available to backorder	Brake	£2.04 £1.70
473381	AK473381 Available to backorder	Trunnion	£7.60 £6.33
473440	AK473440 Available to backorder	Shoulder Spacer	£4.90 £4.08
473609	AK473609 Available to backorder	Case	£1.52 £1.27
473610	AK473610 Available to backorder	Clamp	£0.84 £0.70
473724	AK473724 Available to backorder	Buffer	£2.22 £1.85
473789	AK473789 Available to backorder	Brake Lock Rod	£5.42 £4.52
476590	AK476590 Available to backorder	Pedal Rubber	£3.20 £2.67
476591	AK476591 Available to backorder	Brake Pedal Rubber	£3.20 £2.67
493116	AK493116 Available to backorder	Gear Box	£1,378.00 £1,148.33
493234	AK493234 Available to backorder	Shift Rod Gas G700 A	£20.26 £16.88
493237	AK493237 Available to backorder	Transmission G700 Mt Ep Bushing A Cpl	£1.26 £1.05
514326	AK514326 Available to backorder	Key	£1.52 £1.27
544578	AK544578 Available to backorder	Screw	£1.62 £1.35
607801	AK607801 Available to backorder	Washer	£0.68 £0.57
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700307	AK700307 Available to backorder	Washer - E-Clip	£1.70 £1.42
700528	AK700528 Available to backorder	Washer	£0.98 £0.82
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
702107	AK702107 Available to backorder	Screw	£1.70 £1.42
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
704534	AK704534 Available to backorder	Nut M10	£0.68 £0.57
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705900	AK705900 Available to backorder	Nut	£0.70 £0.58
46802330	AK468023 Available to backorder	Shouldered Spacer	£3.22 £2.68
47302730	AK47302730 Available to backorder	Steering Plate	£48.34 £40.28
47308530	AK473085 Available to backorder	Bolt	£8.00 £6.67
47308830	AK47308830 Available to backorder	Bracket	£12.56 £10.47
47337130	AK47337130 Available to backorder	Connection Plate	£3.42 £2.85
47337330	AK47337330 Available to backorder	Gearbox Bracket	£8.64 £7.20
47337430	AK47337430 Available to backorder	Cross Shaft	£23.44 £19.53
47337830	AK47337830 Available to backorder	Washer	£6.76 £5.63
47337930	AK47337930 Available to backorder	Washer	£26.14 £21.78
47342830	AK47342830 Available to backorder	Brake Pedal Arm	£42.74 £35.62
47342930	AK47342930 Available to backorder	Forward Pedal Arm	£42.08 £35.07
47343630	AK47343630 Available to backorder	Reverse Pedal Arm	£20.02 £16.68
47343930	AK47343930 Available to backorder	Bush	£5.28 £4.40
47348834	AK47348834 Available to backorder	Panel	£4.30 £3.58
47365230	AK47365230 Available to backorder	Spacer	£2.56 £2.13
47373430	AK47373430 Available to backorder	Spacer	£5.78 £4.82
47659501	AK457679 Available to backorder	Rear Wheel Assy 23x10.5-12	£314.48 £262.07
