AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Wiring Loom

Name: AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Wiring Loom
SKU: AK127575_8-group
Price: 0.64 GBP
Availability: InStock

Part No. AK127575_8-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Wiring Loom

Description

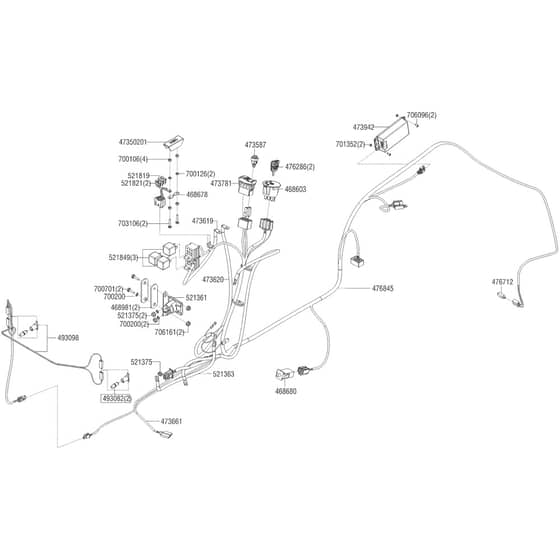

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Wiring Loom - Parts Diagram

	Part No.	Details
468603	AK468603 In stock	Ignition Switch	£34.44 £28.70
468678	AK468678 Available to backorder	Fuse 150A	£1.32 £1.10
468680	AK493565 In stock	Switch - Black	£18.50 £15.42
468981	AK468981 Available to backorder	Insulating Plate	£1.22 £1.02
473587	AK473587 Available to backorder	Switch - Reverse	£11.76 £9.80
473619	AK473619 Available to backorder	Wire	£13.56 £11.30
473620	AK473620 Available to backorder	Loom	£13.68 £11.40
473661	AK473661 Available to backorder	Adapter	£8.40 £7.00
473942	AK473942 In stock	Pcb	£80.42 £67.02
476286	AK476286 In stock	Ignition Key	£6.72 £5.60
476712	AK476712 Available to backorder	Switch. Alt - Ak514329 (Use Lower 2 Terminals)	£11.40 £9.50
476845	AK476845 Available to backorder	Main Harness Saw Premium	£159.84 £133.20
493082	AK493082 Available to backorder	Led Bulb	£4.92 £4.10
493098	AK493098 Available to backorder	Lighting Harness	£11.40 £9.50
521361	AK521361 In stock	Tractor Solenoid	£31.69 £26.41
521363	AK521363 Available to backorder	Cable	£10.68 £8.90
521375	AK521375 Available to backorder	Nut	£0.82 £0.68
521819	AK521819 Available to backorder	Fuse 15A	£3.00 £2.50
521821	AK521821 Available to backorder	Fuse 10A	£2.58 £2.15
521849	AK521849 Available to backorder	Relay	£34.32 £28.60
700106	AK700106 Available to backorder	Nut	£1.01 £0.84
700200	AK700200 Available to backorder	Washer	£0.82 £0.68
700701	AK700701 Available to backorder	Screw M6x25	£0.77 £0.64
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
703106	AK703106 Available to backorder	Screw	£0.84 £0.70
706096	AK706096 Available to backorder	Screw	£0.84 £0.70
706161	AK706161 Available to backorder	Nut	£0.84 £0.70
47350201	AK47350201 Available to backorder	Cover	£1.66 £1.38
