AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift

Part No. AK127575_5-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift

Description

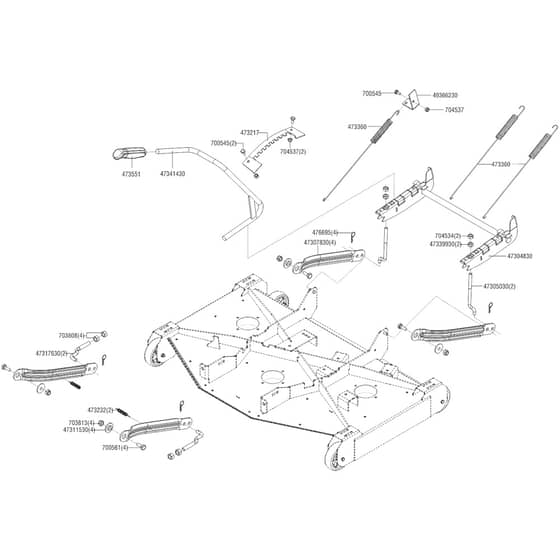

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift - Parts Diagram

Ref.		Img.	Part No.	Details
	473217		AK473217 Available to backorder	Screening Adj		£8.04 £6.70
	473232		AK473232 Available to backorder	Spring Front Black		£2.96 £2.47
	473360		AK473360 Available to backorder	Spring		£8.52 £7.10
	473551		AK473551 Available to backorder	Grip For Height Adjustment		£10.32 £8.60
	476695		AK476695 In stock	Connector R-Clip		£1.02 £0.85
	700545		AK700545 Available to backorder	Bolt M8x16		£0.82 £0.68
	700561		AK700561 Available to backorder	Screw M10x25		£1.42 £1.18
	703813		AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018		£0.84 £0.70
	704534		AK704534 Available to backorder	Nut M10		£0.82 £0.68
	704537		AK704537 In stock	Lock Nut M8		£1.15 £0.96
	47305030		AK47305030 Available to backorder	Deck Hanger		£8.76 £7.30
	47307830		AK47307830 Available to backorder	Swingarm		£14.52 £12.10
	47311530		AK473115 Available to backorder	Use Ak473115		£2.75 £2.29
	47317630		AK47317630 Available to backorder	Arm		£6.84 £5.70
	47339930		AK473399 Available to backorder	Use Ak473399		£2.21 £1.84
	47341430		AK47341430 Available to backorder	Height Adj		£29.64 £24.70

Description

AL-KO Premium T22-110.0 HDH-A V2 - 127575 - Deck Lift - Parts Diagram
