AL-KO Premium T22-105.1 HDA V2 - 127621 - Bodywork: from 9.2021

Description

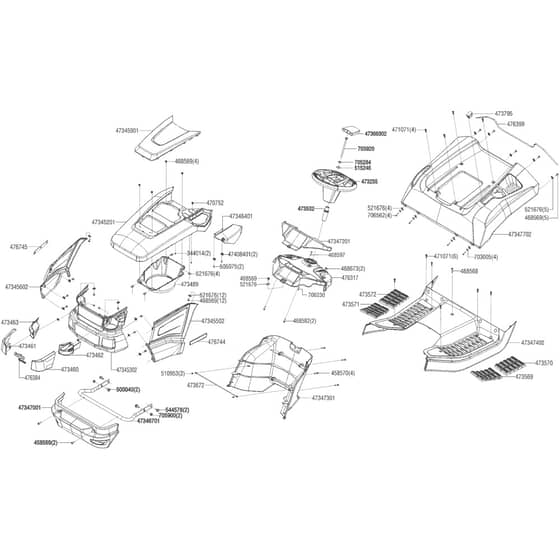

AL-KO Premium T22-105.1 HDA V2 - 127621 - Bodywork - Parts Diagram

from 9.2021

	Part No.	Details
344014	AK344014 Available to backorder	Screw	£0.82 £0.68
458569	AK458569 Available to backorder	Screw M6x22 Din 7500	£1.74 £1.45
458570	AK458570 Available to backorder	Screw M6x35 Din7500	£1.74 £1.45
468568	AK468568 Available to backorder	Screw	£1.42 £1.18
468569	AK468569 Available to backorder	Screw Torx 4.8x16	£1.48 £1.23
468582	AK468582 Available to backorder	Screw	£1.42 £1.18
468597	AK468597 Available to backorder	Screw	£1.42 £1.18
468673	AK468673 Available to backorder	Locking Plug	£0.84 £0.70
470752	AK470752 Available to backorder	Buffer	£8.04 £6.70
471071	AK471071 Available to backorder	Screw M6x25	£1.01 £0.84
473255	AK473255 Available to backorder	Steering Wheel	£90.84 £75.70
473460	AK473460 Available to backorder	Left Headlight	£7.68 £6.40
473461	AK473461 Available to backorder	Right Headlight	£7.68 £6.40
473462	AK473462 Available to backorder	Reflector	£19.68 £16.40
473463	AK473463 Available to backorder	Right Reflector	£22.44 £18.70
473489	AK473489 Available to backorder	Intake Hood	£17.52 £14.60
473532	AK473532 Available to backorder	Connector	£14.52 £12.10
473569	AK473569 Available to backorder	Floor Mat Top Left	£7.68 £6.40
473570	AK473570 Available to backorder	Floor Mat Bottom Left	£8.40 £7.00
473571	AK473571 Available to backorder	Floor Mat Top Right	£7.68 £6.40
473572	AK473572 Available to backorder	Floor Mat Bottom Right	£8.40 £7.00
473672	AK473672 Available to backorder	Dash Support Rod	£4.56 £3.80
473795	AK473795 Available to backorder	Blank Plate	£3.24 £2.70
476317	AK476317 Available to backorder	Control Console	£33.72 £28.10
476384	AK476384 Available to backorder	3D Logo	£5.64 £4.70
476399	AK476399 Available to backorder	Seal	£11.88 £9.90
476744	AK476744 Available to backorder	3D Logo	£9.84 £8.20
476745	AK476745 Available to backorder	3D Logo	£9.84 £8.20
500040	AK500040 Available to backorder	Screw	£1.66 £1.38
505075	AK505075 Available to backorder	Screw 15mm	£1.34 £1.12
510953	AK510953 Available to backorder	Fastener M6	£1.01 £0.84
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
521676	AK521676 Available to backorder	Nut	£1.81 £1.51
544578	AK544578 Available to backorder	Screw	£1.76 £1.47
703005	AK700148 In stock	Washer M6	£0.86 £0.72
703920	AK703920 Available to backorder	Bolt M10x140	£2.03 £1.69
705284	AK705284 In stock	Spring Washer M10	£3.88 £3.23
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
706230	AK706230 Available to backorder	Peg	£0.84 £0.70
706562	AK706562 Available to backorder	Shr St48x25 -C-Torx 7981A3R	£0.84 £0.70
47345302	AK47345302 Available to backorder	Front Grille	£43.56 £36.30
47345502	AK47345502 Available to backorder	Left Side Panel Red	£28.20 £23.50
47345602	AK47345602 Available to backorder	Right Side Panel Red	£28.20 £23.50
47345901	AK47345901 Available to backorder	Bonnet Hood	£24.60 £20.50
47346401	AK47346401 Available to backorder	Tank Filler Cover	£12.84 £10.70
47346701	AK473467 Available to backorder	Use Ak473467	£25.56 £21.30
47347001	AK47347001 Available to backorder	Cover	£21.96 £18.30
47347201	AK47347201 Available to backorder	Console	£49.80 £41.50
47347301	AK47347301 Available to backorder	Motor Console	£52.32 £43.60
47347402	AK47347402 Available to backorder	Rear Console	£86.52 £72.10
47347702	AK47347702 Available to backorder	Seat Console	£85.51 £71.26
47366302	AK47366302 Available to backorder	Cover	£8.76 £7.30
47408401	AK47408401 Available to backorder	Retaining Clip	£0.82 £0.68
