AL-KO Premium T20-105.6 HD V2 - 127371 - Transmission: 2.2019 - 4.2020

Name: AL-KO Premium T20-105.6 HD V2 - 127371 - Transmission: 2.2019 - 4.2020
SKU: AK127371_4_2_2019_4_2020-group
Price: 0.68 GBP
Availability: InStock

Part No. AK127371_4_2_2019_4_2020-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T20-105.6 HD V2 - 127371 - Transmission: 2.2019 - 4.2020

Description

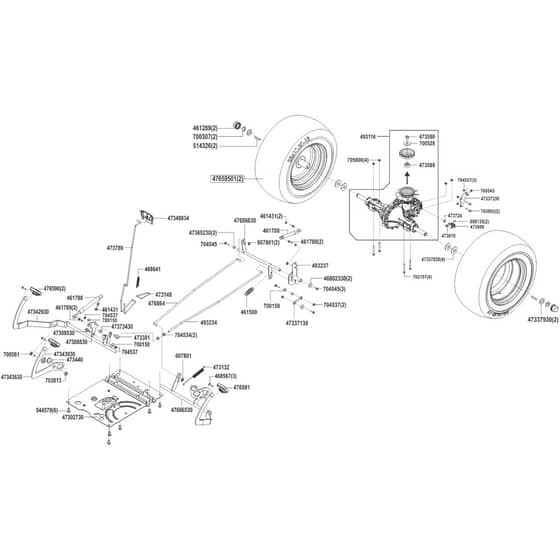

AL-KO Premium T20-105.6 HD V2 - 127371 - Transmission - Parts Diagram

2.2019 - 4.2020

	Part No.	Details
461289	AK461289 In stock	Cap	£5.39 £4.49
461431	AK461431 Available to backorder	Nut	£0.84 £0.70
461500	AK461500 Available to backorder	Spring	£4.32 £3.60
461788	AK461788 Available to backorder	Damper	£92.88 £77.40
461789	AK461789 Available to backorder	Joint	£4.68 £3.90
468567	AK468567 Available to backorder	Screw M6x22 Starhead	£1.32 £1.10
468641	AK468641 In stock	Spring	£1.97 £1.64
473132	AK473132 Available to backorder	Return Spring	£3.96 £3.30
473149	AK473149 Available to backorder	Brake	£2.22 £1.85
473381	AK473381 Available to backorder	Trunnion	£7.92 £6.60
473440	AK473440 Available to backorder	Shoulder Spacer	£5.04 £4.20
473609	AK473609 Available to backorder	Case	£1.66 £1.38
473610	AK473610 Available to backorder	Clamp	£1.01 £0.84
473724	AK473724 Available to backorder	Buffer	£2.42 £2.02
473789	AK473789 Available to backorder	Brake Lock Rod	£5.64 £4.70
476590	AK476590 Available to backorder	Pedal Rubber	£3.36 £2.80
493116	AK493116 Available to backorder	Gear Box	£1,378.00 £1,148.33
493234	AK493234 Available to backorder	Shift Rod Gas G700 A	£21.00 £17.50
493237	AK493237 Available to backorder	Transmission G700 Mt Ep Bushing A Cpl	£1.51 £1.26
514326	AK514326 Available to backorder	Key	£1.66 £1.38
544578	AK544578 Available to backorder	Screw	£1.76 £1.47
607801	AK607801 Available to backorder	Washer	£0.82 £0.68
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700307	AK700307 Available to backorder	Washer - E-Clip	£1.86 £1.55
700528	AK700528 Available to backorder	Washer	£1.18 £0.98
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
702107	AK702107 Available to backorder	Screw	£1.86 £1.55
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
46802330	AK468023 Available to backorder	Shouldered Spacer	£2.95 £2.46
47302730	AK47302730 Available to backorder	Steering Plate	£50.04 £41.70
47308530	AK473085 Available to backorder	Bolt	£5.28 £4.40
47308830	AK47308830 Available to backorder	Bracket	£12.96 £10.80
47337130	AK47337130 Available to backorder	Connection Plate	£3.48 £2.90
47337330	AK47337330 Available to backorder	Gearbox Bracket	£8.88 £7.40
47337830	AK47337830 Available to backorder	Washer	£6.96 £5.80
47337930	AK47337930 Available to backorder	Washer	£27.00 £22.50
47342930	AK47342930 Available to backorder	Forward Pedal Arm	£43.56 £36.30
47343630	AK47343630 Available to backorder	Reverse Pedal Arm	£20.76 £17.30
47343930	AK47343930 Available to backorder	Bush	£5.52 £4.60
47348834	AK47348834 Available to backorder	Panel	£4.44 £3.70
47365230	AK47365230 Available to backorder	Spacer	£2.80 £2.33
47373430	AK47373430 Available to backorder	Spacer	£6.00 £5.00
47659501	AK457679 Available to backorder	Rear Wheel Assy 23x10.5-12	£326.40 £272.00
