AL-KO Premium T20-105.6 HD V2 - 127371 - Bodywork: 12.2015 - 10.2016

Name: AL-KO Premium T20-105.6 HD V2 - 127371 - Bodywork: 12.2015 - 10.2016
SKU: AK127371_1_12_2015_10_2016-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T20-105.6 HD V2 - 127371 - Bodywork: 12.2015 - 10.2016

Description

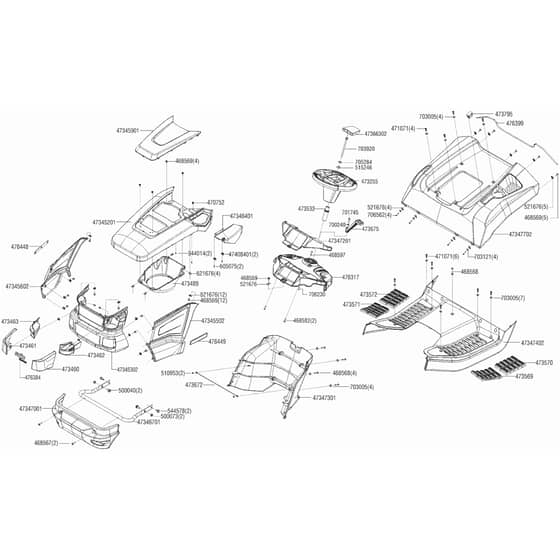

AL-KO Premium T20-105.6 HD V2 - 127371 - Bodywork - Parts Diagram

12.2015 - 10.2016

Be the first to review this product

0 product questions

	Part No.	Details
344014	AK344014 Available to backorder	Screw	£0.68 £0.57
468567	AK468567 Available to backorder	Screw M6x22 Starhead	£1.18 £0.98
468568	AK468568 Available to backorder	Screw	£1.18 £0.98
468569	AK468569 Available to backorder	Screw Torx 4.8x16	£1.25 £1.04
468582	AK468582 Available to backorder	Screw	£1.18 £0.98
468597	AK468597 Available to backorder	Screw	£1.18 £0.98
470752	AK470752 Available to backorder	Buffer	£7.74 £6.45
471071	AK471071 Available to backorder	Screw M6x25	£0.84 £0.70
473255	AK473255 Available to backorder	Steering Wheel	£95.78 £79.82
473460	AK473460 Available to backorder	Left Headlight	£7.46 £6.22
473461	AK473461 Available to backorder	Right Headlight	£7.46 £6.22
473462	AK473462 Available to backorder	Reflector	£18.84 £15.70
473463	AK473463 Available to backorder	Right Reflector	£21.38 £17.82
473489	AK473489 Available to backorder	Intake Hood	£16.94 £14.12
473532	AK473532 Available to backorder	Connector	£15.36 £12.80
473569	AK473569 Available to backorder	Floor Mat Top Left	£7.46 £6.22
473570	AK473570 Available to backorder	Floor Mat Bottom Left	£8.16 £6.80
473571	AK473571 Available to backorder	Floor Mat Top Right	£7.46 £6.22
473572	AK473572 Available to backorder	Floor Mat Bottom Right	£8.16 £6.80
473672	AK473672 Available to backorder	Dash Support Rod	£4.42 £3.68
473675	AK473740 Available to backorder	Use Ak473740	£9.84 £8.20
473795	AK473795 Available to backorder	Blank Plate	£3.08 £2.57
476317	AK476317 Available to backorder	Control Console	£32.58 £27.15
476384	AK476384 Available to backorder	3D Logo	£5.42 £4.52
476399	AK476399 Available to backorder	Seal	£10.18 £8.48
476448	AK476448 Available to backorder	3D Logo	£9.50 £7.92
476449	AK476449 Available to backorder	3D Logo	£9.50 £7.92
500040	AK500040 Available to backorder	Screw	£1.52 £1.27
500073	AK500073 In stock	Nut	£1.28 £1.07
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
510953	AK510953 Available to backorder	Fastener M6	£0.84 £0.70
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
521676	AK521676 Available to backorder	Nut	£1.86 £1.55
544578	AK544578 Available to backorder	Screw	£1.62 £1.35
700240	AK700240 Available to backorder	Washer M5	£1.18 £0.98
701745	AK701745 Available to backorder	Screw M5x20	£1.36 £1.13
703005	AK700148 In stock	Washer M6	£0.79 £0.66
703121	AK703451 Available to backorder	Use Ak700147	£3.26 £2.72
703920	AK703920 Available to backorder	Bolt M10x140	£1.86 £1.55
705284	AK705284 Available to backorder	Spring Washer M10	£3.34 £2.78
706230	AK706230 Available to backorder	Peg	£0.70 £0.58
706562	AK706562 Available to backorder	Shr St48x25 -C-Torx 7981A3R	£0.70 £0.58
47345201	AK47345201 Available to backorder	Hood	£48.60 £40.50
47345302	AK47345302 Available to backorder	Front Grille	£42.08 £35.07
47345502	AK47345502 Available to backorder	Left Side Panel Red	£27.30 £22.75
47345602	AK47345602 Available to backorder	Right Side Panel Red	£27.30 £22.75
47345901	AK47345901 Available to backorder	Bonnet Hood	£23.74 £19.78
47346401	AK47346401 Available to backorder	Tank Filler Cover	£10.86 £9.05
47346701	AK473467 Available to backorder	Use Ak473467	£24.76 £20.63
47347001	AK47347001 Available to backorder	Cover	£22.02 £18.35
47347201	AK47347201 Available to backorder	Console	£48.16 £40.13
47347301	AK47347301 Available to backorder	Motor Console	£50.60 £42.17
47347402	AK47347402 Available to backorder	Rear Console	£83.60 £69.67
47347702	AK47347702 Available to backorder	Seat Console	£79.92 £66.60
47366302	AK47366302 Available to backorder	Cover	£8.48 £7.07
47408401	AK47408401 Available to backorder	Retaining Clip	£0.68 £0.57
