AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Wiring Loom

Name: AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Wiring Loom
SKU: AK127683_9-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Wiring Loom

Description

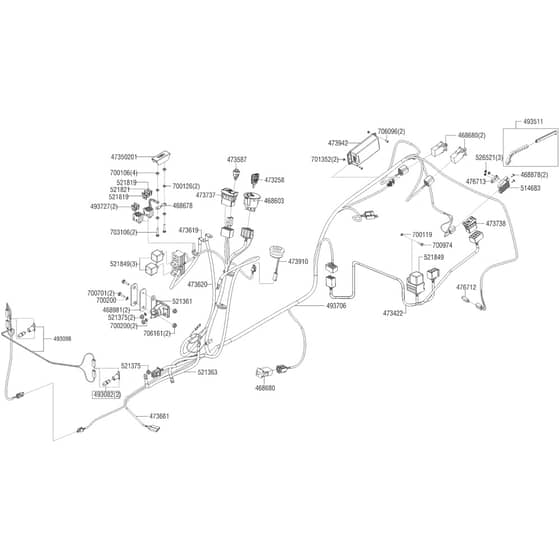

AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Wiring Loom - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

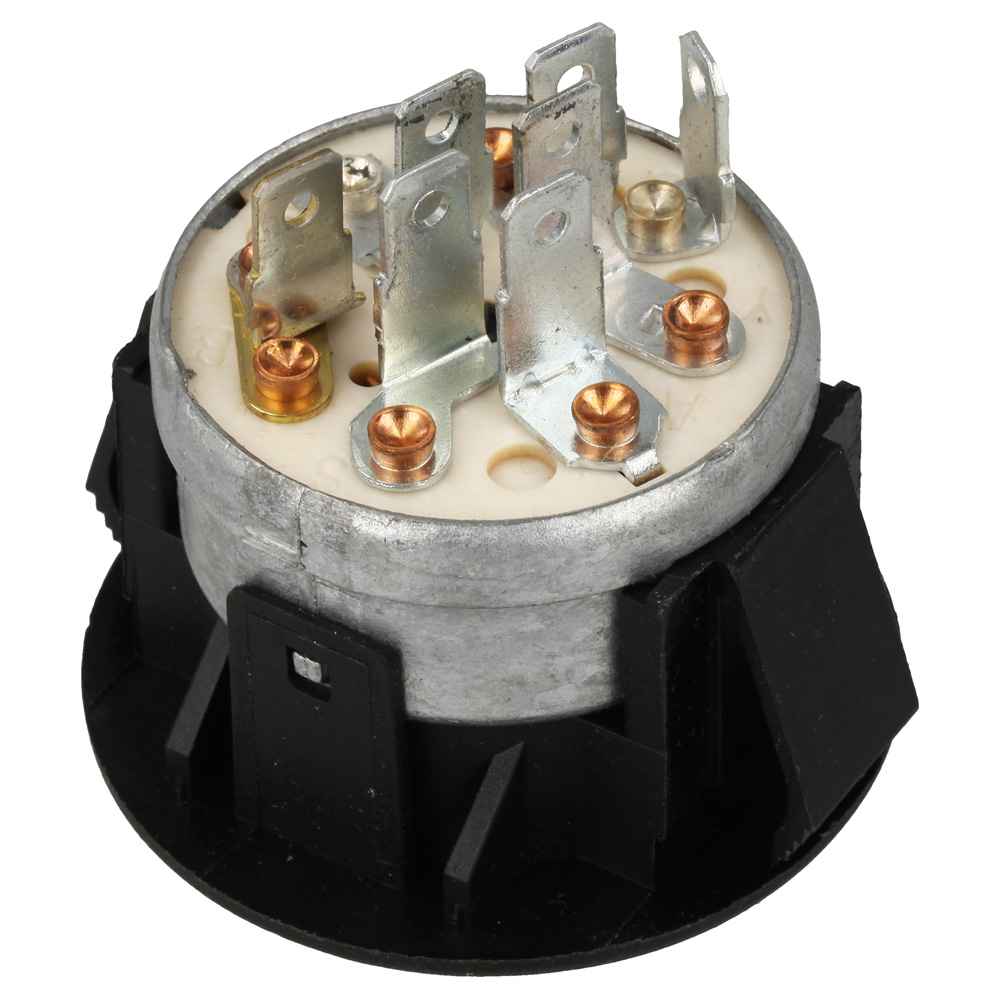

468603	AK468603 In stock	Ignition Switch	£35.81 £29.84
468678	AK468678 Available to backorder	Fuse 150A	£1.10 £0.92
468680	AK493565 Available to backorder	Switch - Black	£15.64 £13.03
468878	AK468878 Available to backorder	Screw	£0.78 £0.65
468981	AK468981 Available to backorder	Insulating Plate	£1.02 £0.85

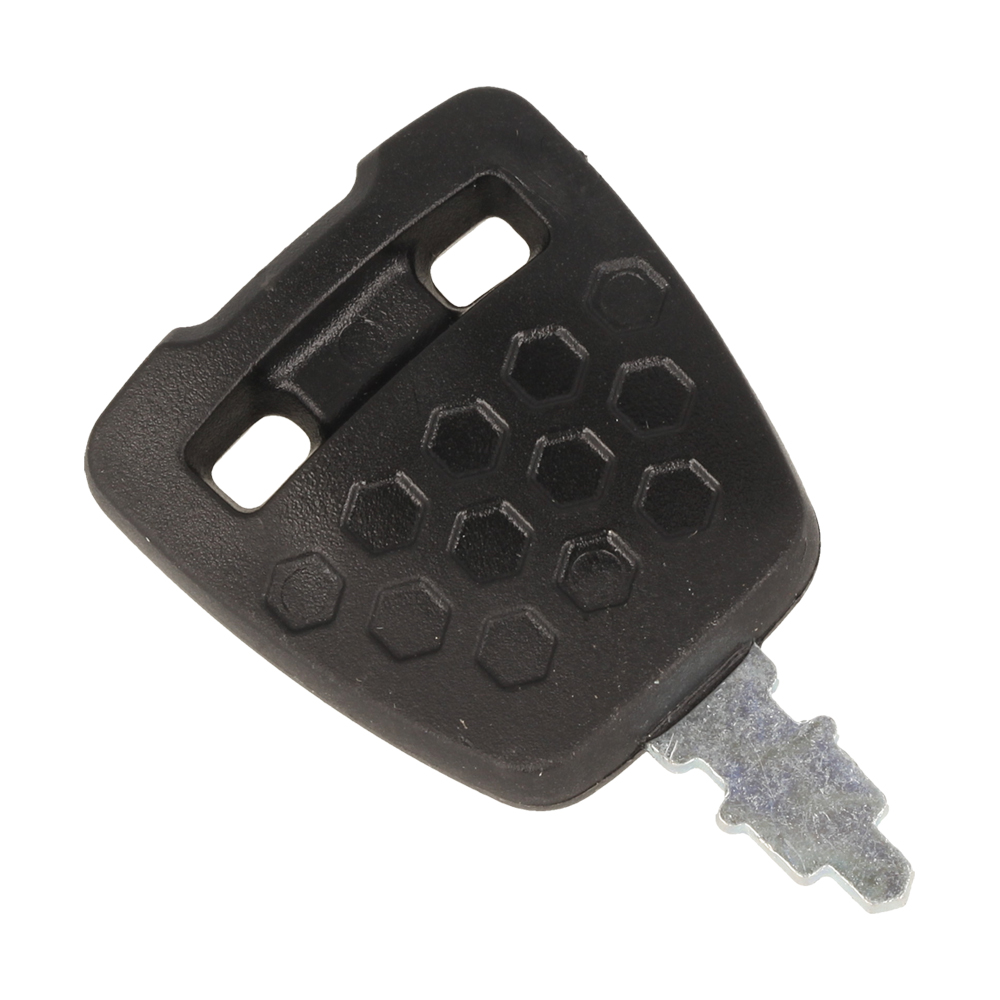

473258	AK476286 In stock	Use Ak476286	£7.01 £5.84
473422	AK473422 Available to backorder	Wiring Loom	£36.14 £30.12
473587	AK473587 Available to backorder	Switch - Reverse	£12.64 £10.53
473619	AK473619 Available to backorder	Wire	£13.08 £10.90
473620	AK473620 Available to backorder	Loom	£13.26 £11.05

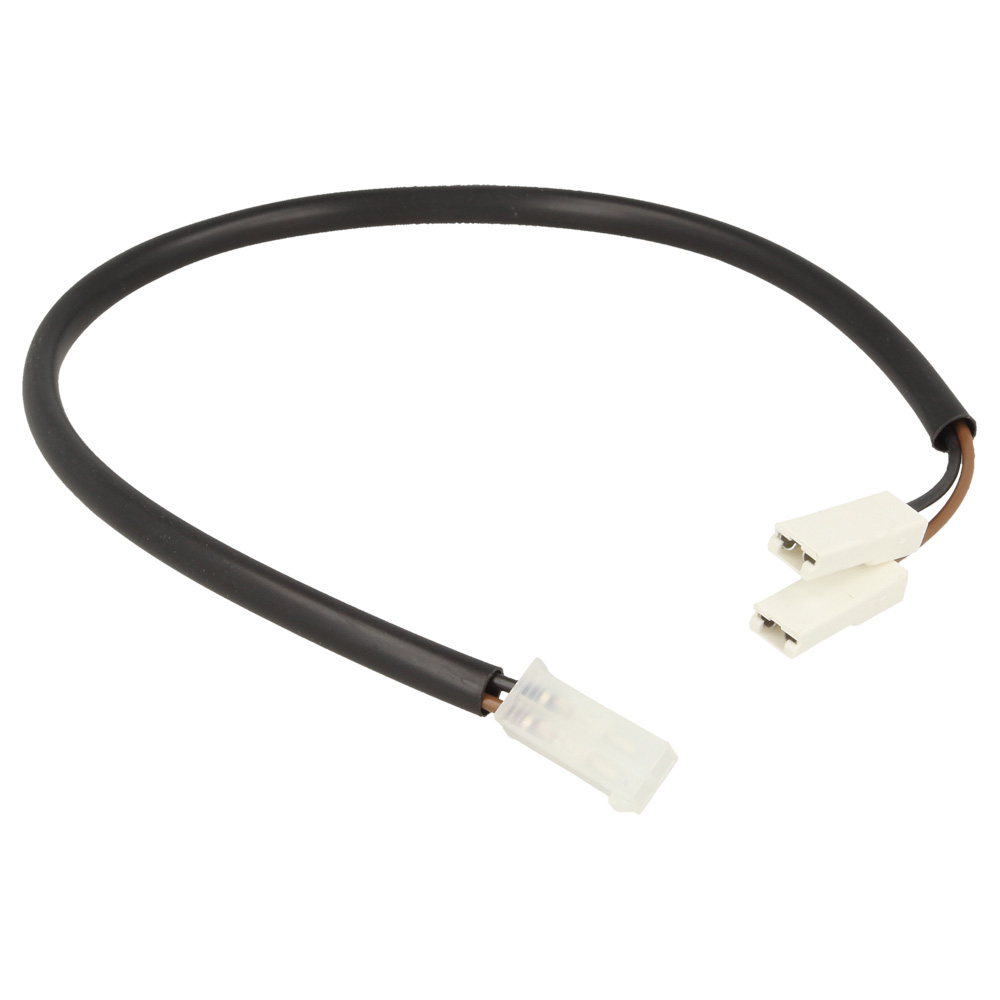

473661	AK473661 Available to backorder	Adapter	£8.10 £6.75
473738	AK473738 Available to backorder	Switch - Electric Tip	£27.64 £23.03
473910	AK473910 Available to backorder	Buzzer (New Style)	£11.42 £9.52
473942	AK473942 Available to backorder	Pcb	£83.76 £69.80
476712	AK476712 Available to backorder	Switch. Alt - Ak514329 (Use Lower 2 Terminals)	£12.42 £10.35
476713	AK476713 Available to backorder	Microswitch	£14.00 £11.67
493082	AK493082 Available to backorder	Led Bulb	£4.70 £3.92
493098	AK493098 Available to backorder	Lighting Harness	£11.00 £9.17
493511	AK493511 Available to backorder	Fill Level Indicator	£6.20 £5.17
493706	AK493706 Available to backorder	Main Harness Ha Smart Display	£225.60 £188.00
493727	AK493727 Available to backorder	Plug Fuse 3 A	£2.54 £2.12
514683	AK521339 Available to backorder	Use Ak521339	£15.50 £12.92
521361	AK521361 In stock	Tractor Solenoid	£33.52 £27.93
521363	AK521363 Available to backorder	Cable	£10.34 £8.62
521375	AK521375 Available to backorder	Nut	£0.68 £0.57
521819	AK521819 Available to backorder	Fuse 15A	£2.38 £1.98
521821	AK521821 Available to backorder	Fuse 10A	£2.36 £1.97
521849	AK521849 Available to backorder	Relay	£37.02 £30.85
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
700106	AK700106 Available to backorder	Nut	£0.84 £0.70
700119	AK700119 Available to backorder	Nut M5	£1.86 £1.55
700200	AK700200 Available to backorder	Washer	£0.68 £0.57
700701	AK700701 Available to backorder	Screw M6x25	£0.70 £0.58
700974	AK700974 Available to backorder	Screw	£0.68 £0.57
701352	AK701352 Available to backorder	Nut	£0.84 £0.70
703106	AK703106 Available to backorder	Screw	£0.70 £0.58
706096	AK706096 Available to backorder	Screw	£0.70 £0.58
706161	AK706161 Available to backorder	Nut	£0.70 £0.58
47350201	AK47350201 Available to backorder	Cover	£1.52 £1.27
