AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Chassis

Name: AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Chassis
SKU: AK127683_2-group
Price: 0.66 GBP
Availability: InStock

Part No. AK127683_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Chassis

Description

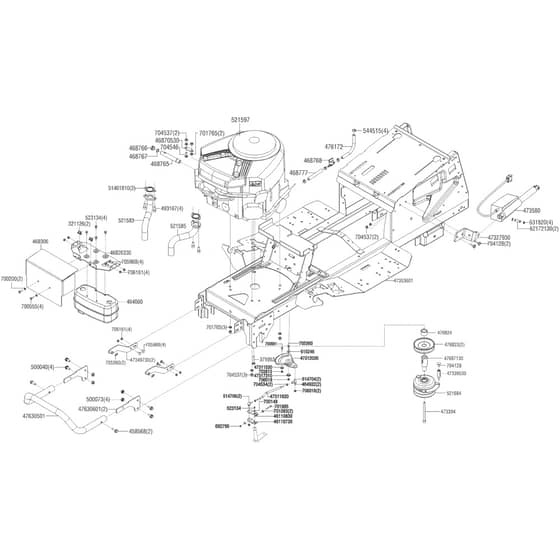

AL-KO Premium T20-105.2 HDE V2 SD - 127683 - Chassis - Parts Diagram

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
458568	AK458568 In stock	Screw - Self Tapping M8x25	£2.10 £1.75
464660	AK46444810 Available to backorder	Use Ak46444810	£49.68 £41.40
464932	AK464932 Available to backorder	Ball Joint	£8.64 £7.20
468306	AK468306 Available to backorder	Plate	£13.92 £11.60
468765	AK46876530 Available to backorder	6170-021-8200-A Oil Drain Screw B&S	£16.68 £13.90
468766	AK468766 Available to backorder	Oil Pipe Bung	£4.20 £3.50
468767	AK468767 Available to backorder	Seal	£0.84 £0.70
468768	AK468768 Available to backorder	Fuel Tap	£10.92 £9.10
473394	AK473394 Available to backorder	Screw	£8.16 £6.80
473580	AK473580 Available to backorder	Hydraulic Ram - Alt Use Ak119602	£312.00 £260.00
476172	AK476172 Available to backorder	Pipe	£4.44 £3.70
476823	AK476823 Available to backorder	Pulley	£5.64 £4.70
476824	AK47682430 Available to backorder	6170-708-2000-A Motor Shaft Thrust	£13.32 £11.10
493167	AK493167 Available to backorder	Screw	£39.36 £32.80
500040	AK500040 Available to backorder	Screw	£1.66 £1.38
500073	AK500073 In stock	Nut	£1.48 £1.23
514704	AK514704 Available to backorder	Spring	£0.84 £0.70
514706	AK514706 Available to backorder	Ball Joint	£9.12 £7.60
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
521583	AK521583 Available to backorder	Exhaust Elbow	£29.52 £24.60
521585	AK521585 Available to backorder	Exhaust Elbow	£29.52 £24.60
521684	AK521684 Available to backorder	Clutch	£276.60 £230.50
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
531820	AK531820 Available to backorder	Circlip	£1.61 £1.34
544515	AK544515 Available to backorder	Clip	£0.84 £0.70
692795	AK692795 Available to backorder	Nut	£1.42 £1.18
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700200	AK700200 Available to backorder	Washer	£0.82 £0.68
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
701083	AK701083 Available to backorder	Washer	£0.82 £0.68
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
701985	AK703550 Available to backorder	Wheel Bolt	£1.03 £0.86
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704128	AK704128 Available to backorder	Screw	£3.24 £2.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705260	AK705260 Available to backorder	Clip	£0.82 £0.68
705360	AK705360 In stock	Screw M10 Fine x 35	£2.69 £2.24
705968	AK705968 Available to backorder	Screw M6x15	£0.83 £0.69
706018	AK706018 Available to backorder	Nut	£0.84 £0.70
706161	AK706161 Available to backorder	Nut	£0.84 £0.70
46110730	AK46110730 Available to backorder	Link	£7.56 £6.30
46110830	AK46110830 Available to backorder	Lever	£7.32 £6.10
46826330	AK468263 Available to backorder	Use Ak468263	£13.80 £11.50
46870530	AK46870530 Available to backorder	Connection	£3.36 £2.80
47311530	AK473115 Available to backorder	Use Ak473115	£2.75 £2.29
47311630	AK47311630 Available to backorder	Rod	£19.56 £16.30
47312030	AK458130 In stock	Gear	£35.30 £29.42
47317310	AK47317330 Available to backorder	Disc	£8.04 £6.70
47327930	AK47327930 Available to backorder	Part	£17.52 £14.60
47339530	AK47339530 Available to backorder	Bolt	£7.32 £6.10
47349730	AK47349730 Available to backorder	Bonnet Hinge	£10.68 £8.90
47353601	AK47353601 Available to backorder	Chassis	£319.98 £266.65
47630501	AK47630501 Available to backorder	Bumper Tube 30mm	£30.72 £25.60
47630601	AK47630630 Available to backorder	Retaining Plate	£14.40 £12.00
47687130	AK47687130 Available to backorder	Shaft	£35.40 £29.50
51461810	AK51461810 Available to backorder	Gasket	£2.58 £2.15
52172130	AK52172130 Available to backorder	Pin	£7.20 £6.00
