AL-KO Premium Bio 48 - 118051 - Handle And Collector: 1.2000 - 5.2000

Name: AL-KO Premium Bio 48 - 118051 - Handle And Collector: 1.2000 - 5.2000
SKU: AK118051_2_1_2000_5_2000-group
Price: 0.66 GBP
Availability: InStock

Part No. AK118051_2_1_2000_5_2000-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium Bio 48 - 118051 - Handle And Collector: 1.2000 - 5.2000

Description

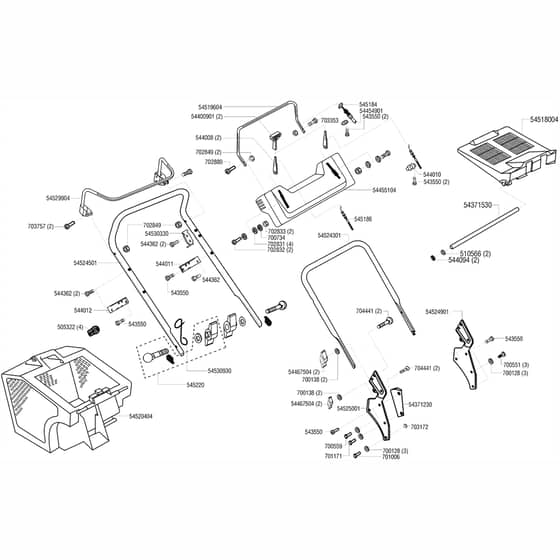

AL-KO Premium Bio 48 - 118051 - Handle And Collector - Parts Diagram

1.2000 - 5.2000

	Part No.	Details
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
544008	AK544008 Available to backorder	Lever	£2.22 £1.85
544010	AK544010 Available to backorder	Terminal	£1.73 £1.44
544012	AK544012 Available to backorder	Cover Plate Rh	£2.18 £1.82
544094	AK544094 Available to backorder	Terminal Cap	£1.42 £1.18
544362	AK544362 Available to backorder	Screw	£1.15 £0.96
545184	AK545184 Available to backorder	Nla - Opc Cable	£20.04 £16.70
545220	AK527748 Available to backorder	Use Ak527748	£6.12 £5.10
700128	AK700128 Available to backorder	Washer	£1.01 £0.84
700138	AK704538 In stock	Washer M8	£1.09 £0.91
700551	AK703891 Available to backorder	Use Ak500071	£4.08 £3.40
700559	AK704545 In stock	Use Ak704545	£1.03 £0.86
700734	AK700734 Available to backorder	Washer	£1.25 £1.04
701006	AK704546 Available to backorder	Use Ak704546	£0.79 £0.66
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
702833	AK704537 In stock	Use Ak704537	£1.15 £0.96
702849	AK704536 Out of stock	Nut M6	£1.13 £0.94
702880	AK700866 Available to backorder	Use Ak700866	£0.89 £0.74
703172	AK500073 In stock	Use Ak500073	£1.48 £1.23
703353	AK701170 Available to backorder	Use Ak704734	£1.01 £0.84
703757	AK703757 Available to backorder	Screw	£0.84 £0.70
704441	AK704441 Available to backorder	Screw	£1.01 £0.84
54400901	AK54400901 Available to backorder	Lever	£6.96 £5.80
54454901	AK54454901 Available to backorder	Clamping Piece	£3.96 £3.30
54467504	AK544675 Available to backorder	Use Ak544675	£3.04 £2.53
54518004	AK45027801 Available to backorder	Use Ak45027801	£43.56 £36.30
54519604	AK54519604 Available to backorder	Opc Handle	£39.84 £33.20
54524501	AK54524501 Available to backorder	Upper Handle	£59.28 £49.40
54530330	AK54530330 Available to backorder	Bearing	£2.22 £1.85
