AL-KO Premium Bio 48 - 118051 - Deck - Drive: before 12.1999

Name: AL-KO Premium Bio 48 - 118051 - Deck - Drive: before 12.1999
SKU: AK118051_1_before_12_1999-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium Bio 48 - 118051 - Deck - Drive: before 12.1999

Description

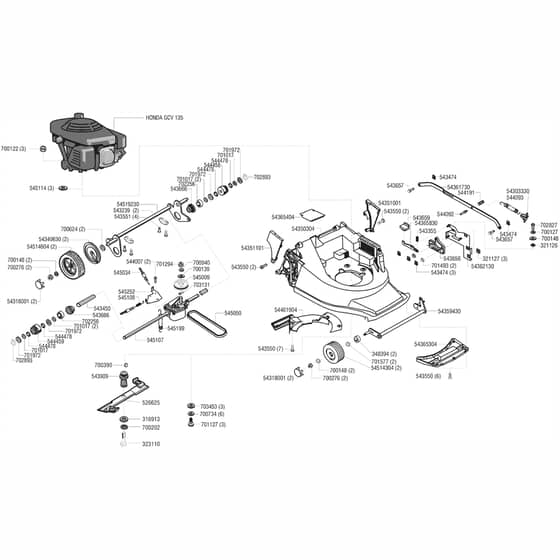

AL-KO Premium Bio 48 - 118051 - Deck - Drive - Parts Diagram

before 12.1999

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
323110	AK457347 Available to backorder	Use Ak457347	£2.94 £2.45
526625	AK545317 Available to backorder	Use Ak545317	£36.50 £30.42
543355	AK543355 Available to backorder	Compression Spring	£0.74 £0.62
543474	AK543474 In stock	Circlip	£0.78 £0.65
543550	AK543550 Available to backorder	Screw	£1.18 £0.98
543656	AK543656 Available to backorder	Grip	£8.64 £7.20
543657	AK543657 Available to backorder	Bolt	£20.32 £16.93
543659	AK543659 Available to backorder	Button	£1.86 £1.55
543909	AK543909 Available to backorder	Blade Boss	£36.64 £30.53
544007	AK544007 Available to backorder	Screw	£1.56 £1.30
544191	AK54419130 Available to backorder	Use Ak54419130	£11.36 £9.47
544458	AK544458 Available to backorder	Obsolete	£36.28 £30.23
544478	AK544478 Available to backorder	Spacer	£8.72 £7.27
545107	AK545107 Available to backorder	Gearbox	£261.72 £218.10
545108	AK545108 Available to backorder	Drive Cable	£26.08 £21.73
545114	AK545114 Available to backorder	Spacer	£2.36 £1.97
700122	AK703813 Available to backorder	Use Ak703813	£0.68 £0.57
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700139	AK704539 Available to backorder	Washer M10	£0.70 £0.58
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700624	AK700624 Available to backorder	Washer 15mm	£0.68 £0.57
700734	AK700734 Available to backorder	Washer	£1.04 £0.87
700940	AK700940 Available to backorder	Washer	£0.70 £0.58
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701127	AK704744 Available to backorder	Use Ak704744	£1.36 £1.13
701294	AK701294 Available to backorder	Mu B10 439-04 Vz	£0.72 £0.60
701493	AK701493 In stock	Washer M8	£0.78 £0.65
701577	AK705116 Available to backorder	Use Ak705116	£0.68 £0.57
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702256	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
702827	AK700701 Available to backorder	Use Ak703574	£0.70 £0.58
702893	AK702893 Available to backorder	Clip	£0.84 £0.70
703131	AK703131 Available to backorder	Pin	£0.70 £0.58
703453	AK700150 In stock	Use Ak700150	£0.84 £0.70
54340630	AK54340630 Available to backorder	Plate	£8.64 £7.20
54350304	AK54350302 Available to backorder	Use Ak54350302	£188.62 £157.18
54351001	AK54351001 Available to backorder	Side Piece L/H	£6.76 £5.63
54351101	AK54351101 Available to backorder	Side Piece R/H	£6.12 £5.10
54365304	AK54365301 Available to backorder	Use Ak54365301	£14.08 £11.73
54365404	AK54365401 Available to backorder	Use Ak54365401	£6.76 £5.63
54514304	AK457711 Available to backorder	Use Ak54514320	£22.27 £18.56
54514604	AK54514620 Available to backorder	Use Ak54514620	£53.16 £44.30
