AL-KO Premium Bio 48 - 118050 - Main Assembly: from 5.2000

Name: AL-KO Premium Bio 48 - 118050 - Main Assembly: from 5.2000
SKU: AK118050_1_from_5_2000-group
Price: 0.64 GBP
Availability: InStock

Part No. AK118050_1_from_5_2000-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium Bio 48 - 118050 - Main Assembly: from 5.2000

Description

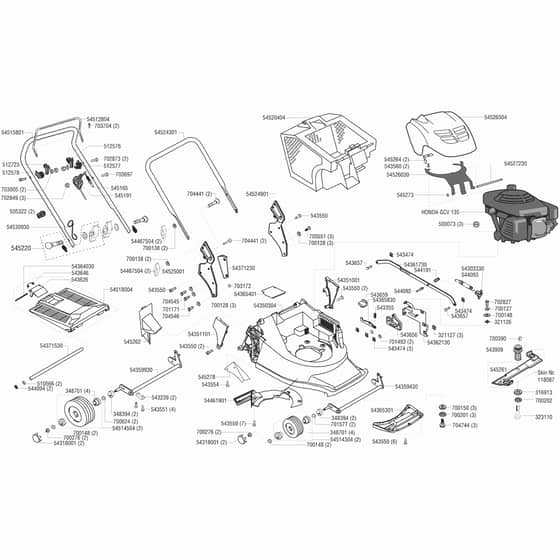

AL-KO Premium Bio 48 - 118050 - Main Assembly - Parts Diagram

from 5.2000

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
323110	AK457347 Available to backorder	Use Ak457347	£3.20 £2.67
348701	AK348701 Available to backorder	Bearing	£7.92 £6.60
500073	AK500073 In stock	Nut	£1.48 £1.23
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
512576	AK512576 Available to backorder	Bracket	£2.03 £1.69
512577	AK512577 Available to backorder	Bracket	£2.62 £2.18
512723	AK512723 Available to backorder	Bracket	£1.66 £1.38
543355	AK543355 Available to backorder	Compression Spring	£0.89 £0.74
543474	AK543474 In stock	Circlip	£0.88 £0.73
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
543554	AK543554 Available to backorder	Screw 22mm	£1.42 £1.18
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
543646	AK543646 Available to backorder	Spring	£3.48 £2.90
543656	AK543656 Available to backorder	Grip	£8.88 £7.40
543657	AK543657 Available to backorder	Bolt	£21.00 £17.50
543659	AK543659 Available to backorder	Button	£2.03 £1.69
543909	AK543909 Available to backorder	Blade Boss	£37.92 £31.60
544094	AK544094 Available to backorder	Terminal Cap	£1.42 £1.18
544191	AK54419130 Available to backorder	Use Ak54419130	£11.76 £9.80
545165	AK545165 Available to backorder	Nla -Opc Cable	£16.44 £13.70
545191	AK529466 Available to backorder	Use Ak529466	£39.84 £33.20
545220	AK527748 Available to backorder	Use Ak527748	£6.12 £5.10
545261	AK545261 Available to backorder	Blade - Mulch	£38.64 £32.20
545264	AK545264 Available to backorder	Plate	£2.99 £2.49
545273	AK545273 Available to backorder	Nut	£0.84 £0.70
545278	AK545278 Available to backorder	Plate	£4.56 £3.80
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700128	AK700128 Available to backorder	Washer	£1.01 £0.84
700138	AK704538 In stock	Washer M8	£1.09 £0.91
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700201	AK700201 Available to backorder	Grip Washer M8	£0.88 £0.73
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700551	AK703891 Available to backorder	Use Ak500071	£4.08 £3.40
700624	AK700624 Available to backorder	Washer 15mm	£0.82 £0.68
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701493	AK701493 In stock	Washer M8	£0.89 £0.74
701577	AK705116 Available to backorder	Use Ak705116	£0.82 £0.68
702827	AK700701 Available to backorder	Use Ak703574	£0.77 £0.64
702873	AK702873 Available to backorder	Bolt	£0.84 £0.70
703697	AK703697 Available to backorder	Screw M6x55	£1.15 £0.96
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.82 £0.68
704441	AK704441 Available to backorder	Screw	£1.01 £0.84
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
704744	AK704744 Available to backorder	Screw	£1.63 £1.36
54350304	AK54350302 Available to backorder	Use Ak54350302	£181.08 £150.90
54351001	AK54351001 Available to backorder	Side Piece L/H	£6.96 £5.80
54351101	AK54351101 Available to backorder	Side Piece R/H	£6.36 £5.30
54365301	AK54365301 Available to backorder	Hood - Lower. Front	£14.52 £12.10
54365401	AK54365401 Available to backorder	Gearbox Cover	£6.96 £5.80
54467504	AK544675 Available to backorder	Use Ak544675	£3.04 £2.53
54514304	AK457711 In stock	Use Ak54514320	£21.12 £17.60
54514504	AK54514520 Available to backorder	Use Ak54514520	£32.88 £27.40
54518004	AK45027801 Available to backorder	Use Ak45027801	£43.56 £36.30
54526504	AK54526504 Available to backorder	Hood	£28.92 £24.10
