AL-KO Premium Bio 48 - 118050 - Main Assembly: before 1.2000

Name: AL-KO Premium Bio 48 - 118050 - Main Assembly: before 1.2000
SKU: AK118050_1_before_1_2000-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium Bio 48 - 118050 - Main Assembly: before 1.2000

Description

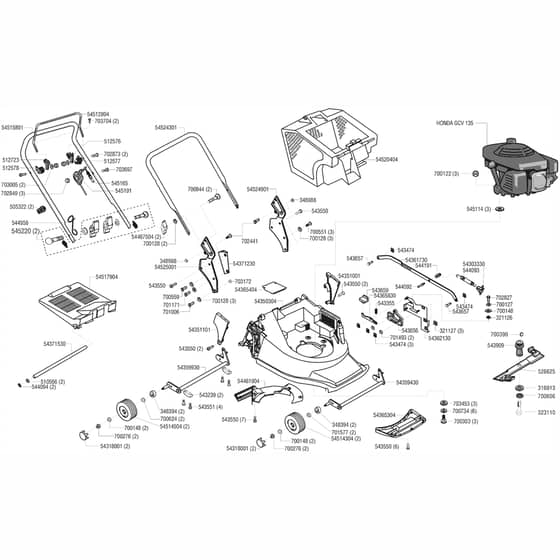

AL-KO Premium Bio 48 - 118050 - Main Assembly - Parts Diagram

before 1.2000

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
323110	AK457347 Available to backorder	Use Ak457347	£2.94 £2.45
348988	AK692795 Available to backorder	Nut	£1.18 £0.98
510566	AK510566 Available to backorder	Fastener 8mm	£1.18 £0.98
512576	AK512576 Available to backorder	Bracket	£1.86 £1.55
512577	AK512577 Available to backorder	Bracket	£2.40 £2.00
512723	AK512723 Available to backorder	Bracket	£1.52 £1.27
526625	AK545317 Available to backorder	Use Ak545317	£36.50 £30.42
543355	AK543355 Available to backorder	Compression Spring	£0.74 £0.62
543474	AK543474 In stock	Circlip	£0.78 £0.65
543550	AK543550 Available to backorder	Screw	£1.18 £0.98
543656	AK543656 Available to backorder	Grip	£8.64 £7.20
543657	AK543657 Available to backorder	Bolt	£20.32 £16.93
543659	AK543659 Available to backorder	Button	£1.86 £1.55
543909	AK543909 Available to backorder	Blade Boss	£36.64 £30.53
544094	AK544094 Available to backorder	Terminal Cap	£1.18 £0.98
544191	AK54419130 Available to backorder	Use Ak54419130	£11.36 £9.47
544958	AK544958 Available to backorder	Rope Guide	£4.08 £3.40
545114	AK545114 Available to backorder	Spacer	£2.36 £1.97
545165	AK545165 Available to backorder	Nla -Opc Cable	£15.92 £13.27
545191	AK529466 Available to backorder	Use Ak529466	£38.52 £32.10
545220	AK527748 Available to backorder	Use Ak527748	£5.94 £4.95
700122	AK703813 Available to backorder	Use Ak703813	£0.68 £0.57
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700128	AK700128 Available to backorder	Washer	£0.84 £0.70
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700303	AK703926 Available to backorder	Ak700303	£1.62 £1.35
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700551	AK703891 Available to backorder	Use Ak500071	£3.90 £3.25
700559	AK704545 In stock	Use Ak704545	£0.86 £0.72
700624	AK700624 Available to backorder	Washer 15mm	£0.68 £0.57
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
700734	AK700734 Available to backorder	Washer	£1.04 £0.87
700844	AK704128 Available to backorder	Use Ak704128	£3.16 £2.63
701006	AK704546 Available to backorder	Use Ak704546	£0.72 £0.60
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701493	AK701493 In stock	Washer M8	£0.78 £0.65
701577	AK705116 Available to backorder	Use Ak705116	£0.68 £0.57
702827	AK700701 Available to backorder	Use Ak703574	£0.70 £0.58
702873	AK702873 Available to backorder	Bolt	£0.70 £0.58
703172	AK500073 In stock	Use Ak500073	£1.28 £1.07
703453	AK700150 In stock	Use Ak700150	£0.84 £0.70
703697	AK703697 Available to backorder	Screw M6x55	£0.96 £0.80
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
54350304	AK54350302 Available to backorder	Use Ak54350302	£188.62 £157.18
54351001	AK54351001 Available to backorder	Side Piece L/H	£6.76 £5.63
54351101	AK54351101 Available to backorder	Side Piece R/H	£6.12 £5.10
54365304	AK54365301 Available to backorder	Use Ak54365301	£14.08 £11.73
54365404	AK54365401 Available to backorder	Use Ak54365401	£6.76 £5.63
54467504	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
54514304	AK457711 Available to backorder	Use Ak54514320	£22.27 £18.56
54514504	AK54514520 Available to backorder	Use Ak54514520	£31.74 £26.45
