AL-KO Premium Bio 42 BR - 118049 - Deck: before 1.2000

Name: AL-KO Premium Bio 42 BR - 118049 - Deck: before 1.2000
SKU: AK118049_1_before_1_2000-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium Bio 42 BR - 118049 - Deck: before 1.2000

Description

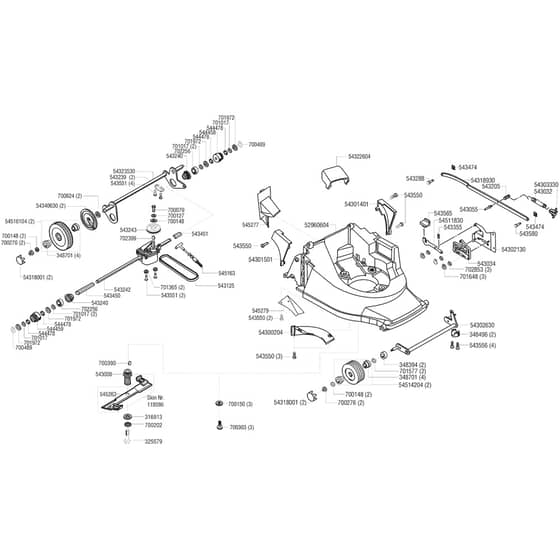

AL-KO Premium Bio 42 BR - 118049 - Deck - Parts Diagram

before 1.2000

Be the first to review this product

0 product questions

	Part No.	Details
118086	AK545263 Available to backorder	Use Ak545263	£37.72 £31.43
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
325579	AK457346 Available to backorder	Use Ak457346	£2.26 £1.88
348496	AK348496 Available to backorder	Axle Mount	£2.56 £2.13
348701	AK348701 Available to backorder	Bearing	£7.64 £6.37
543008	AK543008 Available to backorder	Blade Boss 22mm	£22.06 £18.38
543032	AK543032 Available to backorder	Spring	£6.76 £5.63
543034	AK543034 Available to backorder	Handle - Adjustable	£12.16 £10.13
543242	AK543242 Available to backorder	Gearbox	£176.66 £147.22
543243	AK543243 Available to backorder	Pulley	£8.48 £7.07
543288	AK527537 In stock	Use Ak527537	£2.94 £2.45
543355	AK543355 Available to backorder	Compression Spring	£0.74 £0.62
543474	AK543474 In stock	Circlip	£0.78 £0.65
543550	AK543550 Available to backorder	Screw	£1.18 £0.98
543556	AK543556 Available to backorder	Screw	£1.04 £0.87
543565	AK543565 Available to backorder	Bracket	£2.56 £2.13
543580	AK543580 Available to backorder	Bolt	£2.28 £1.90
544458	AK544458 Available to backorder	Obsolete	£36.28 £30.23
544478	AK544478 Available to backorder	Spacer	£8.72 £7.27
700079	AK700483 Available to backorder	Use Ak700483	£0.68 £0.57
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700303	AK703926 Available to backorder	Ak700303	£1.62 £1.35
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700489	AK700489 In stock	Circlip	£0.78 £0.65
700624	AK700624 Available to backorder	Washer 15mm	£0.68 £0.57
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701365	AK701365 Available to backorder	Washer	£0.48 £0.40
701577	AK705116 Available to backorder	Use Ak705116	£0.68 £0.57
701648	AK701648 Available to backorder	Circlip	£1.18 £0.98
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702256	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
702399	AK702399 Available to backorder	Key	£0.70 £0.58
702853	AK702853 Available to backorder	Washer M8	£0.70 £0.58
54300204	AK54300201 Available to backorder	Use Ak54300201	£11.56 £9.63
54322604	AK54322601 Available to backorder	Use Ak54322601	£16.28 £13.57
54340630	AK54340630 Available to backorder	Plate	£8.64 £7.20
