AL-KO Premium 530 - 119180 - Main Assembly: from 2.2010

Name: AL-KO Premium 530 - 119180 - Main Assembly: from 2.2010
SKU: AK119180_1_from_2_2010-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 530 - 119180 - Main Assembly: from 2.2010

Description

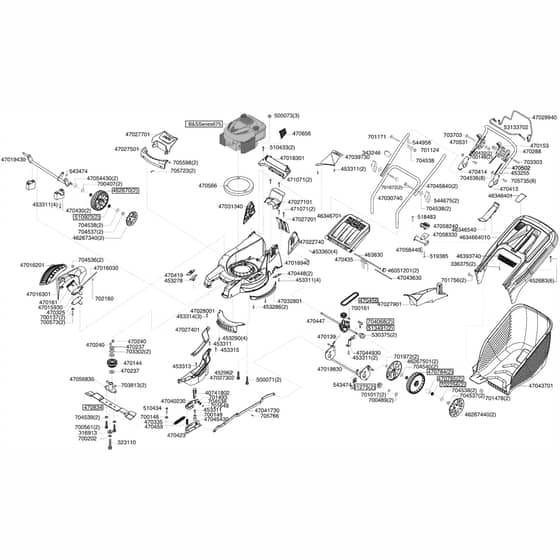

AL-KO Premium 530 - 119180 - Main Assembly - Parts Diagram

from 2.2010

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323110	AK457347 Available to backorder	Use Ak457347	£2.94 £2.45
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
453255	AK453255 Available to backorder	Upper Handle	£29.68 £24.73
453278	AK453278 Available to backorder	Cover	£14.02 £11.68
453286	AK453286 Available to backorder	Screw	£0.70 £0.58
453290	AK453290 Available to backorder	Screw M5x10	£0.84 £0.70
453311	AK453311 Available to backorder	Bolt	£0.96 £0.80
453313	AK49411802 Available to backorder	No Longer Available	£41.16 £34.30
453314	AK453314 Available to backorder	Screw	£0.91 £0.76
453315	AK453315 Available to backorder	Bolt	£2.04 £1.70
453360	AK453360 Available to backorder	Screw	£3.42 £2.85
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£31.20 £26.00
470153	AK470153 Available to backorder	Cable	£25.94 £21.62
470161	AK470161 Available to backorder	Spring - Side Door	£5.28 £4.40
470237	AK470237 Available to backorder	Spacer 22mm	£0.98 £0.82
470240	AK470240 Available to backorder	Key	£3.84 £3.20
470288	AK470288 Available to backorder	Spacer	£4.42 £3.68
470325	AK470325 Available to backorder	Distance Plate	£1.86 £1.55
470335	AK470335 Available to backorder	Spring	£5.08 £4.23
470413	AK470413 Available to backorder	Knuckle Joint L/H	£20.68 £17.23
470414	AK470414 Available to backorder	Knuckle Joint R/H	£14.60 £12.17
470419	AK470419 Available to backorder	Hv Lens / Cover	£5.02 £4.18
470423	AK470423 Available to backorder	Bearing Plate	£10.10 £8.42
470430	AK470430 Available to backorder	Front Axle Clamp	£1.52 £1.27
470435	AK470435 Available to backorder	Grass Flap Spring	£3.86 £3.22
470447	AK470447 Available to backorder	Transmission	£119.70 £99.75
470456	AK470456 Available to backorder	Belt	£18.24 £15.20
470459	AK470459 Available to backorder	Spring	£1.36 £1.13
470502	AK470502 Available to backorder	Bowden Cable	£21.41 £17.84
470531	AK531828 Available to backorder	Cable	£26.21 £21.84
470566	AK470566 Available to backorder	Cover	£5.60 £4.67
470656	AK470656 Available to backorder	Exhaust Cover Wire Protection	£2.74 £2.28
470784	AK474783 Available to backorder	Use Ak474783	£24.32 £20.27
470785	AK470785 Available to backorder	Wheel Spacer	£2.96 £2.47
470834	AK470834 Available to backorder	Blade	£46.58 £38.82
471071	AK471071 Available to backorder	Screw M6x25	£0.84 £0.70
500071	AK456208 Available to backorder	Ak500071	£1.02 £0.85
500073	AK500073 In stock	Nut	£1.28 £1.07
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.66 £1.38
510434	AK525779 Available to backorder	Use Ak525779	£1.18 £0.98
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
518483	AK518483 Available to backorder	Screw St4 x 35mm	£0.84 £0.70
519385	AK519385 Available to backorder	Screw	£1.18 £0.98
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
544958	AK544958 Available to backorder	Rope Guide	£4.08 £3.40
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701124	AK701124 Available to backorder	Dome Nut M8	£0.66 £0.55
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701493	AK701493 In stock	Washer M8	£0.78 £0.65
701648	AK701648 Available to backorder	Circlip	£1.18 £0.98
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
702256	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
703302	AK703302 Available to backorder	Spacer 22mm	£4.58 £3.82
703303	AK703303 Available to backorder	Screw	£1.10 £0.92
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704539	AK704539 Available to backorder	Washer	£0.70 £0.58
704540	AK704540 Available to backorder	Washer M12	£0.68 £0.57
705598	AK705598VA Available to backorder	Nut	£0.91 £0.76
705723	AK705723 Available to backorder	Screw M6x10	£0.91 £0.76
705735	AK705735 Available to backorder	Screw	£0.98 £0.82
705766	AK705766 Available to backorder	Screw M6x18 - Pin	£1.36 £1.13
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46267501	AK46267501 Available to backorder	Back Plate	£4.28 £3.57
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346540	AK46346540 Available to backorder	Box Cover	£4.94 £4.12
46393740	AK46393740 Available to backorder	Cover	£2.74 £2.28
47015930	AK47015930 Available to backorder	Side Flap Bracket	£6.42 £5.35
47016030	AK47016030 Available to backorder	Bearing Rod Side Door	£5.42 £4.52
47016201	AK47016201 Available to backorder	Mulch Cover	£11.36 £9.47
47016301	AK47016301 Available to backorder	Side Discharge Chute	£14.74 £12.28
47018301	AK47018301 In stock	Cover - Black	£16.88 £14.07
47019430	AK47019430 Available to backorder	Front Axle	£33.08 £27.57
47019830	AK47019830 Available to backorder	Rear Axle	£47.34 £39.45
47027101	AK47027101 Available to backorder	Transmission Cover	£12.58 £10.48
47027201	AK47027201 Available to backorder	Panel	£7.40 £6.17
47027302	AK47027302 Available to backorder	Grasp	£20.36 £16.97
47027401	AK47027401 Available to backorder	Cover	£8.58 £7.15
47027501	AK47027501 Available to backorder	Front Grasp	£6.58 £5.48
47027701	AK457709 Available to backorder	Use Ak45333746	£13.28 £11.07
47027901	AK47027901 Available to backorder	Mulch Cover	£15.44 £12.87
47028001	AK47028001 Available to backorder	Bumper	£19.50 £16.25
47029940	AK47029940 Available to backorder	Handle Vario F Grey	£16.12 £13.43
47030740	AK47030740 Available to backorder	Lower Handle	£22.38 £18.65
47032801	AK47032801 Available to backorder	L/H Bumper	£7.46 £6.22
47040230	AK4704023010 Available to backorder	Use Ak4704023010	£10.46 £8.72
47041730	AK47041730 Available to backorder	Connecting Rod	£34.28 £28.57
47041802	AK47041802 Available to backorder	Lever - Red Button	£1.60 £1.33
47043630	AK47043630 Available to backorder	Bar	£2.04 £1.70
47043701	AK453625 Available to backorder	Use Ak453625	£44.96 £37.47
47044930	AK47044930 Available to backorder	Bracket	£8.64 £7.20
47045430	AK47045430 In stock	Sleeve	£3.08 £2.57
47045840	AK47045840 Available to backorder	Part	£15.80 £13.17
47054430	AK47054430 Available to backorder	Spacer Ring	£4.26 £3.55
47056830	AK47056830 Available to backorder	Blade Boss 22mm	£61.46 £51.22
47058240	AK47058202 Available to backorder	Use Ak47058202	£5.20 £4.33
47058330	AK47058330 Available to backorder	Plate	£13.50 £11.25
47058440	AK47058440 Available to backorder	Spacer	£45.88 £38.23
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
2147483647	AK46346640 Available to backorder	Use Ak46346640	£25.90 £21.58
