AL-KO Premium 530 - 119180 - Main Assembly: 8.2009 - 2.2010

Name: AL-KO Premium 530 - 119180 - Main Assembly: 8.2009 - 2.2010
SKU: AK119180_1_8_2009_2_2010-group
Price: 0.34 GBP
Availability: InStock

Part No. AK119180_1_8_2009_2_2010-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 530 - 119180 - Main Assembly: 8.2009 - 2.2010

Description

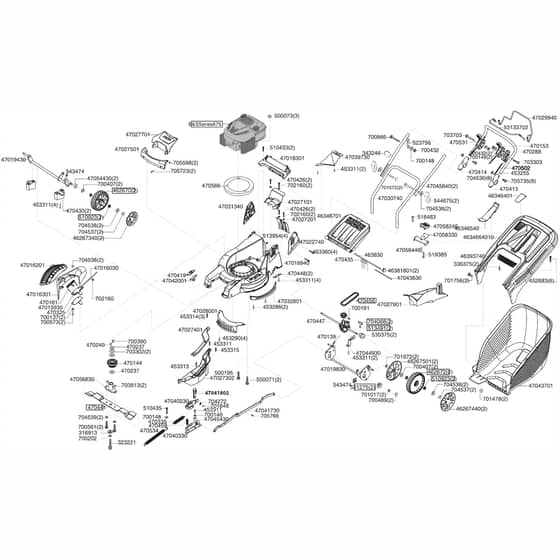

AL-KO Premium 530 - 119180 - Main Assembly - Parts Diagram

8.2009 - 2.2010

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
336375	AK336375 Available to backorder	Screw 14mm	£0.82 £0.68
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
452683	AK336003 Available to backorder	Screw	£1.04 £0.87
453255	AK453255 Available to backorder	Upper Handle	£30.72 £25.60
453286	AK453286 Available to backorder	Screw	£0.84 £0.70
453290	AK453290 Available to backorder	Screw M5x10	£1.01 £0.84
453311	AK453311 Available to backorder	Bolt	£1.15 £0.96
453313	AK49411802 Available to backorder	No Longer Available	£42.60 £35.50
453314	AK453314 Available to backorder	Screw	£0.86 £0.72
453315	AK453315 Available to backorder	Bolt	£2.22 £1.85
453360	AK453360 Available to backorder	Screw	£3.48 £2.90
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
462672	AK474783 Available to backorder	Use Ak470784	£23.16 £19.30
463830	AK463830 Available to backorder	Bar	£2.03 £1.69
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£29.64 £24.70
470153	AK470153 Available to backorder	Cable	£26.88 £22.40
470161	AK470161 Available to backorder	Spring - Side Door	£5.52 £4.60
470237	AK470237 Available to backorder	Spacer 22mm	£1.18 £0.98
470240	AK470240 Available to backorder	Key	£1.08 £0.90
470288	AK470288 Available to backorder	Spacer	£4.56 £3.80
470325	AK470325 Available to backorder	Distance Plate	£2.03 £1.69
470335	AK470335 Available to backorder	Spring	£5.28 £4.40
470413	AK470413 Available to backorder	Knuckle Joint L/H	£21.36 £17.80
470414	AK470414 Available to backorder	Knuckle Joint R/H	£15.12 £12.60
470419	AK470419 Available to backorder	Hv Lens / Cover	£5.22 £4.35
470426	AK470426 Available to backorder	Screw	£8.04 £6.70
470430	AK470430 Available to backorder	Front Axle Clamp	£1.66 £1.38
470435	AK470435 Available to backorder	Grass Flap Spring	£3.96 £3.30
470441	AK470834 Available to backorder	Use Ak470834	£44.16 £36.80
470447	AK470447 Available to backorder	Transmission	£122.04 £101.70
470456	AK470456 Available to backorder	Belt	£19.80 £16.50
470459	AK470459 Available to backorder	Spring	£1.63 £1.36
470502	AK470502 Available to backorder	Bowden Cable	£20.28 £16.90
470531	AK531828 Available to backorder	Cable	£24.12 £20.10
470566	AK470566 Available to backorder	Cover	£5.76 £4.80
500071	AK456208 Available to backorder	Ak500071	£1.22 £1.02
500073	AK500073 In stock	Nut	£1.48 £1.23
500195	AK500195 Available to backorder	Screw	£2.42 £2.02
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
510435	AK543572 Available to backorder	Use Ak543572	£1.86 £1.55
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
513954	AK513954 Available to backorder	Nut M6	£0.84 £0.70
518483	AK518483 Available to backorder	Screw St4 x 35mm	£1.01 £0.84
519385	AK519385 Available to backorder	Screw	£1.42 £1.18
523756	AK523756 In stock	Guide	£2.57 £2.14
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
544675	AK544675 Available to backorder	Wingnut M8 - Black	£3.04 £2.53
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700489	AK700489 In stock	Circlip	£0.89 £0.74
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
700573	AK706086 Available to backorder	Use Ak706086	£0.84 £0.70
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701648	AK701648 Available to backorder	Circlip	£1.42 £1.18
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702160	AK702160 Available to backorder	E-Clip	£1.22 £1.02
703302	AK703302 Available to backorder	Spacer 22mm	£4.68 £3.90
703303	AK703303 Available to backorder	Screw	£1.32 £1.10
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704068	AK704068 In stock	Pawl	£0.88 £0.73
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704539	AK704539 Available to backorder	Washer	£0.78 £0.65
705598	AK705598VA Available to backorder	Nut	£0.86 £0.72
705723	AK705723 Available to backorder	Screw M6x10	£0.86 £0.72
705735	AK705735 Available to backorder	Screw	£1.18 £0.98
705766	AK705766 Available to backorder	Screw M6x18 - Pin	£1.63 £1.36
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.24 £2.70
46267440	AK46267440 Available to backorder	Wheel Cap	£7.08 £5.90
46267501	AK46267501 Available to backorder	Back Plate	£4.44 £3.70
46346401	AK46346401 Available to backorder	Cover	£1.32 £1.10
46346540	AK46346540 Available to backorder	Box Cover	£5.40 £4.50
46346701	AK46346701 In stock	Flap	£15.00 £12.50
46381801	AK46051201 Available to backorder	Use Ak46051201	£1.50 £1.25
46393740	AK46393740 Available to backorder	Cover	£2.99 £2.49
47015930	AK47015930 Available to backorder	Side Flap Bracket	£6.60 £5.50
47016030	AK47016030 Available to backorder	Bearing Rod Side Door	£5.64 £4.70
47016201	AK47016201 Available to backorder	Mulch Cover	£11.76 £9.80
47016301	AK47016301 Available to backorder	Side Discharge Chute	£15.24 £12.70
47018301	AK47018301 In stock	Cover - Black	£16.28 £13.57
47019430	AK47019430 Available to backorder	Front Axle	£34.20 £28.50
47019830	AK47019830 Available to backorder	Rear Axle	£48.96 £40.80
47027101	AK47027101 Available to backorder	Transmission Cover	£12.96 £10.80
47027201	AK47027201 Available to backorder	Panel	£7.68 £6.40
47027302	AK47027302 Available to backorder	Grasp	£21.12 £17.60
47027401	AK47027401 Available to backorder	Cover	£8.88 £7.40
47027501	AK47027501 Available to backorder	Front Grasp	£6.84 £5.70
47027701	AK457709 Available to backorder	Use Ak45333746	£13.68 £11.40
47027901	AK47027901 Available to backorder	Mulch Cover	£15.96 £13.30
47028001	AK47028001 Available to backorder	Bumper	£20.16 £16.80
47029940	AK47029940 Available to backorder	Handle Vario F Grey	£16.68 £13.90
47030740	AK47030740 Available to backorder	Lower Handle	£23.16 £19.30
47032801	AK47032801 Available to backorder	L/H Bumper	£7.68 £6.40
47040230	AK4704023010 Available to backorder	Use Ak4704023010	£10.80 £9.00
47040330	AK470423 Available to backorder	Use Ak470423	£10.44 £8.70
47041730	AK47041730 Available to backorder	Connecting Rod	£35.52 £29.60
47041802	AK47041802 Available to backorder	Lever - Red Button	£1.74 £1.45
47042001	AK453278 Available to backorder	Use Ak453278	£15.72 £13.10
47043630	AK47043630 Available to backorder	Bar	£2.22 £1.85
47043701	AK453625 Available to backorder	Use Ak453625	£46.56 £38.80
47044930	AK47044930 Available to backorder	Bracket	£8.88 £7.40
47045430	AK47045430 In stock	Sleeve	Was £3.08 £2.57 Special Price £2.22 £1.85
47045840	AK47045840 Available to backorder	Part	£16.32 £13.60
47054430	AK47054430 Available to backorder	Spacer Ring	£4.44 £3.70
47056830	AK47056830 Available to backorder	Blade Boss 22mm	£63.60 £53.00
47058240	AK47058202 Available to backorder	Use Ak47058202	£5.40 £4.50
47058330	AK47058330 Available to backorder	Plate	£13.92 £11.60
47058440	AK47058440 Available to backorder	Spacer	£47.52 £39.60
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
2147483647	AK46346640 Available to backorder	Use Ak46346640	£28.08 £23.40
