AL-KO Premium 520 - 119948 - Main Assembly: from 9.2021

Description

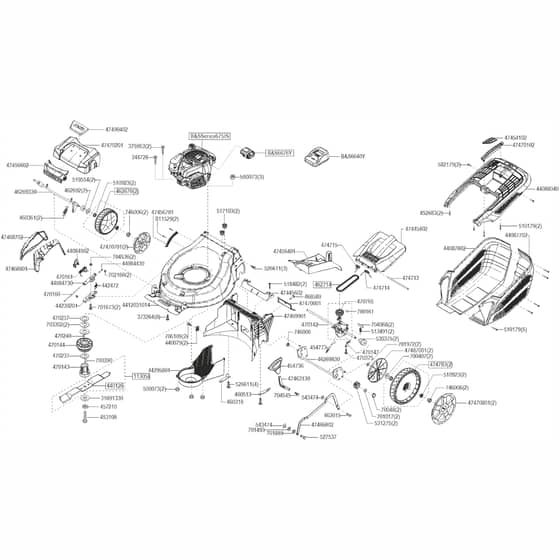

AL-KO Premium 520 - 119948 - Main Assembly - Parts Diagram

from 9.2021

	Part No.	Details
11529	AKB11529 Available to backorder	Screw 20mm	£5.64 £4.70
113058	AK440126 In stock	Blade Pre-Pack	£44.50 £37.08
344728	AK344728 Available to backorder	Screw	£1.92 £1.60
373264	AK373264 Available to backorder	Screw 16mm	£0.89 £0.74
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
440079	AK440079 Available to backorder	Nut	£1.44 £1.20
442472	AK442472 Available to backorder	Spring	£3.96 £3.30
452683	AK336003 Available to backorder	Screw	£1.04 £0.87
453108	AK453108 Available to backorder	Screw 3/8 Unf - 50 (Wnu)	£3.48 £2.90
454736	AK454736 Available to backorder	Height Adjustment	£6.84 £5.70
454773	AK454773 In stock	Drive Cable	£21.72 £18.10
457210	AK457210 Available to backorder	Nla - Washer	£1.01 £0.84
460318	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
460361	AK460361 In stock	Spring	£2.04 £1.70
460513	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
462692	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
462714	AK462714 In stock	Belt	£18.53 £15.44
463015	AK463015 Available to backorder	Pin 18.6mm x 7.9mm	£1.79 £1.49
468589	AK468589 Available to backorder	Screw	£0.82 £0.68
470142	AK470142 Available to backorder	Gear Box	£116.64 £97.20
470143	AK470143 Available to backorder	Blade Boss 22mm	£16.80 £14.00
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£29.64 £24.70
470147	AK470147 Available to backorder	Bracket	£2.03 £1.69
470160	AK470160 Available to backorder	Support Rod Side Flap Rsm 53	£3.24 £2.70
470161	AK470161 Available to backorder	Spring - Side Door	£5.52 £4.60
470237	AK470237 Available to backorder	Spacer 22mm	£1.18 £0.98
470240	AK470240 Available to backorder	Key	£1.08 £0.90
470375	AK470375 Available to backorder	Screw 20mm	£0.86 £0.72
470765	AK470765 Available to backorder	Pulley	£25.44 £21.20
474713	AK474713 Available to backorder	Bar	£1.98 £1.65
474714	AK455308 In stock	Spring	£6.35 £5.29
474783	AK474783 Available to backorder	Rear Wheel	£23.16 £19.30
500073	AK500073 In stock	Nut	£1.48 £1.23
510179	AK518483 Available to backorder	Screw	£1.01 £0.84
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
519554	AK519554 In stock	Spacer	£1.55 £1.29
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
527537	AK527537 In stock	Pin 16.7mm x 7.9mm	£2.95 £2.46
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
582179	AK582179 Available to backorder	Screw 10mm	£2.53 £2.11
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700489	AK700489 In stock	Circlip	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701493	AK701493 In stock	Washer M8	£0.89 £0.74
701673	AK701673 Available to backorder	Screw M6x25	£1.03 £0.86
701889	AK701889 In stock	Washer 8mm	£1.38 £1.15
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702160	AK702160 Available to backorder	E-Clip	£1.22 £1.02
703302	AK703302 Available to backorder	Spacer 22mm	£4.68 £3.90
704068	AK704068 In stock	Pawl	£0.88 £0.73
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
706109	AK706577 Available to backorder	Screw 12mm	£0.84 £0.70
31691330	AK31691330 Available to backorder	Washer	£2.96 £2.47
44084430	AK440844 Available to backorder	Pin	£1.76 £1.47
44084502	AK44084502 Available to backorder	Release Latch Red	£3.72 £3.10
44084730	AK44084730 Available to backorder	Pivot Bracket	£9.96 £8.30
44087702	AK455636 Available to backorder	Box Bottom L/H	£21.84 £18.20
44087802	AK455635 Available to backorder	Box Bottom R/H	£21.60 £18.00
44088040	AK4408801014 Available to backorder	Grassbox Top	£23.40 £19.50
44239201	AK44239201 Available to backorder	Distance Plate	£4.44 £3.70
44295801	AK44295801 In stock	Belt Guard	£12.43 £10.36
46269330	AK46269330 Available to backorder	Front Axle	£39.36 £32.80
46269830	AK46269830 Available to backorder	Rear Axle	£38.88 £32.40
47445402	AK47445402 Available to backorder	Grass Flap - Red	£14.52 £12.10
47454102	AK47454102 In stock	Cover	£1.86 £1.55
47456401	AK47456401 In stock	Mulch Plug	£16.20 £13.50
47456602	AK47456602 Available to backorder	Bumper	£12.00 £10.00
47456701	AK47456701 Available to backorder	Hoc Bracket	£4.80 £4.00
47463130	AK47463130 In stock	Hoc Lever	£6.84 £5.70
47466802	AK47466802 Available to backorder	Connecting Rod	£22.08 £18.40
47468702	AK47468702 Available to backorder	Side Chute	£9.72 £8.10
47468801	AK47468801 In stock	Side Chute	£13.43 £11.19
47469901	AK47469901 Available to backorder	Rear Frame	£36.48 £30.40
47470001	AK47470001 Available to backorder	Flap	£3.72 £3.10
47470102	AK47470102 Available to backorder	Handle	£5.04 £4.20
47470201	AK47470201 In stock	Housing	£15.42 £12.85
47470701	AK47470701 Available to backorder	Hubcap Black	£2.64 £2.20
47470801	AK47470801 Available to backorder	Hubcap Black	£8.04 £6.70
47487001	AK47487001 Available to backorder	Cover	£3.60 £3.00
47490402	AK47490402 Available to backorder	Decal	£6.12 £5.10
2147483647	AK4412031014 Available to backorder	Housing	£90.12 £75.10
