AL-KO Premium 470 - 119947 - Main Assembly: from 2.2020

Name: AL-KO Premium 470 - 119947 - Main Assembly: from 2.2020
SKU: AK119947_1_from_2_2020-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 470 - 119947 - Main Assembly: from 2.2020

Description

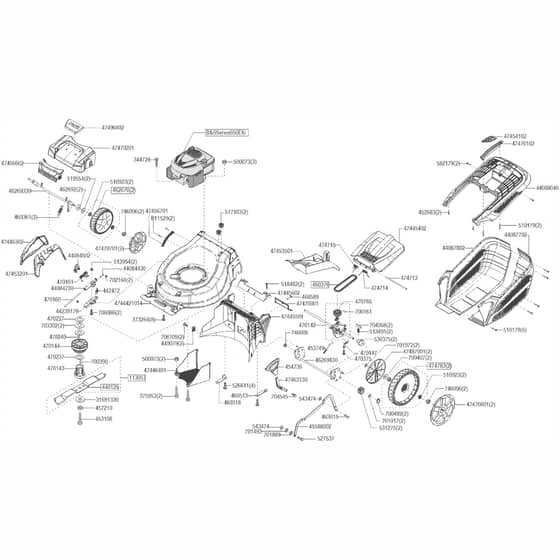

AL-KO Premium 470 - 119947 - Main Assembly - Parts Diagram

from 2.2020

Be the first to review this product

0 product questions

	Part No.	Details
11529	AKB11529 Available to backorder	Screw 20mm	£5.42 £4.52
113057	AK440125 In stock	Blade	£39.98 £33.32
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
373264	AK373264 Available to backorder	Screw 16mm	£0.70 £0.58
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
440079	AK440079 Available to backorder	Nut	£1.20 £1.00
442472	AK442472 Available to backorder	Spring	£3.84 £3.20
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
453108	AK453108 Available to backorder	Screw 3/8 Unf - 50 (Wnu)	£3.42 £2.85
453749	AK453749 In stock	Bowden Cable Drive 1250mm Nhc	£23.92 £19.93
454736	AK454736 Available to backorder	Height Adjustment	£6.88 £5.73
457210	AK457210 Available to backorder	Washer	£0.84 £0.70
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460376	AK460376 In stock	Belt	£17.82 £14.85
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462692	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
468589	AK468589 Available to backorder	Screw	£0.68 £0.57
470142	AK470142 Available to backorder	Gear Box	£116.38 £96.98
470143	AK470143 Available to backorder	Blade Boss 22mm	£16.28 £13.57
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£31.20 £26.00
470147	AK470147 Available to backorder	Bracket	£1.74 £1.45
470160	AK470160 Available to backorder	Support Rod Side Flap Rsm 53	£3.16 £2.63
470161	AK470161 Available to backorder	Spring - Side Door	£5.28 £4.40
470237	AK470237 Available to backorder	Spacer 22mm	£0.98 £0.82
470240	AK470240 Available to backorder	Key	£3.84 £3.20
470375	AK470375 Available to backorder	Screw 20mm	£0.70 £0.58
470765	AK470765 Available to backorder	Pulley	£24.58 £20.48
474713	AK474713 Available to backorder	Bar	£1.86 £1.55
474714	AK455308 Available to backorder	Spring	£5.60 £4.67
474783	AK474783 Available to backorder	Rear Wheel	£24.32 £20.27
500073	AK500073 In stock	Nut	£1.28 £1.07
510179	AK518483 Available to backorder	Screw	£0.84 £0.70
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
513954	AK513954 Available to backorder	Nut M6	£0.70 £0.58
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
527537	AK527537 In stock	Pin	£2.94 £2.45
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
582179	AK582179 Available to backorder	Screw 10mm	£2.32 £1.93
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700489	AK700489 In stock	Circlip	£0.78 £0.65
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701493	AK701493 In stock	Washer M8	£0.78 £0.65
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
703302	AK703302 Available to backorder	Spacer 22mm	£4.58 £3.82
704068	AK704068 In stock	Pawl	£0.80 £0.67
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
706086	AK706086 Available to backorder	Screw M6x20	£0.70 £0.58
706109	AK706577 Available to backorder	Screw 12mm	£0.70 £0.58
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
44084430	AK440844 Available to backorder	Pin	£1.62 £1.35
44084502	AK44084502 Available to backorder	Release Latch Red	£3.56 £2.97
44084730	AK44084730 Available to backorder	Pivot Bracket	£9.68 £8.07
44087702	AK455636 Available to backorder	Box Bottom L/H	£21.10 £17.58
44087802	AK455635 Available to backorder	Box Bottom R/H	£20.90 £17.42
44088040	AK4408801014 Available to backorder	Grassbox Top	£22.90 £19.08
44239170	AK44239170 Available to backorder	Distance Plate	£4.04 £3.37
45588002	AK45588002 Available to backorder	Height Adj Rod	£22.90 £19.08
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
47445402	AK47445402 Available to backorder	Grass Flap - Red	£13.68 £11.40
47445501	AK47445501 Available to backorder	Rear Frame	£35.76 £29.80
47445602	AK47445602 Available to backorder	Cover - Red	£4.90 £4.08
47446302	AK47446302 Available to backorder	Flap	£6.96 £5.80
47446401	AK44295401 In stock	Belt Cover	£12.58 £10.48
47453201	AK47453201 Available to backorder	Chute	£7.22 £6.02
47453501	AK47453501 Available to backorder	Mulch Wedge	£19.86 £16.55
47454102	AK47454102 Available to backorder	Cover	£1.62 £1.35
47456602	AK47456602 Available to backorder	Bumper	£11.56 £9.63
47456701	AK47456701 Available to backorder	Hoc Bracket	£4.62 £3.85
47463130	AK47463130 In stock	Hoc Lever	£6.88 £5.73
47470001	AK47470001 Available to backorder	Flap	£3.48 £2.90
47470102	AK47470102 Available to backorder	Handle	£4.92 £4.10
47470201	AK47470201 In stock	Housing	£16.21 £13.51
47470701	AK47470701 Available to backorder	Hubcap Black	£2.64 £2.20
47470801	AK47470801 Available to backorder	Hubcap Black	£6.80 £5.67
47487001	AK47487001 Available to backorder	Cover	£3.48 £2.90
47490402	AK47490402 Available to backorder	Decal	£5.94 £4.95
2147483647	AK4744421014 Available to backorder	Deck Shell	£88.22 £73.52
