AL-KO Premium 470 - 119311 - Main Assembly

Name: AL-KO Premium 470 - 119311 - Main Assembly
SKU: AK119311_1-group
Price: 0.68 GBP
Availability: InStock

Part No. AK119311_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 470 - 119311 - Main Assembly

Description

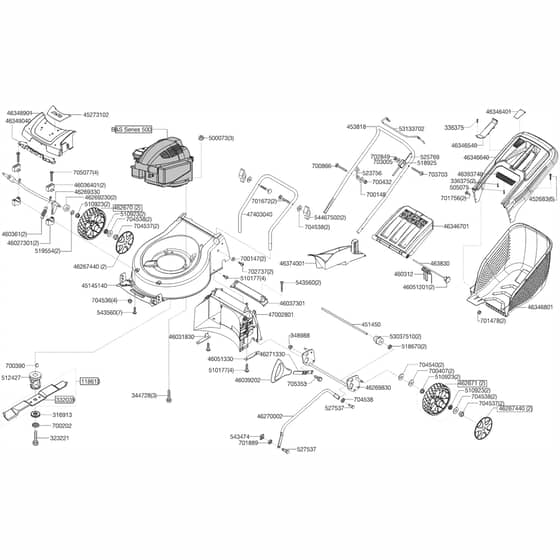

AL-KO Premium 470 - 119311 - Main Assembly - Parts Diagram

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
332039	AK440125 In stock	Blade 18"	£38.66 £32.22
336375	AK336375 Available to backorder	Screw 14mm	£0.82 £0.68
344728	AK344728 Available to backorder	Ak344728	£1.92 £1.60
348988	AK692795 Available to backorder	Nut	£1.42 £1.18
451450	AK451450 Available to backorder	Axle	£5.04 £4.20
452683	AK336003 Available to backorder	Screw	£1.04 £0.87
453818	AK453818 Available to backorder	Handle	£52.08 £43.40
460312	AK460312 In stock	Spring	£6.84 £5.70
460361	AK460361 In stock	Spring	£2.04 £1.70
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
462671	AK462671 Available to backorder	Wheel	£34.80 £29.00
463830	AK463830 Available to backorder	Bar	£2.03 £1.69
500073	AK500073 In stock	Nut	£1.48 £1.23
505075	AK505075 Available to backorder	Screw 15mm	£1.34 £1.12
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
518670	AK518670 Available to backorder	Washer 12mm	£1.67 £1.39
518925	AK474669 In stock	Cable Holder	£4.36 £3.63
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
525769	AK525769 In stock	Opc Cable	£21.64 £18.03
527537	AK527537 In stock	Pin	£2.95 £2.46
543474	AK543474 In stock	Circlip	£0.88 £0.73
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700147	AK703451 In stock	Washer	£1.03 £0.86
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
701889	AK701889 In stock	Washer 8mm	£1.38 £1.15
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
702849	AK704536 Out of stock	Nut M6	£1.13 £0.94
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
705077	AK705077 Available to backorder	Screw M6x60	£1.22 £1.02
705353	AK705353 Available to backorder	Screw	£0.84 £0.70
45145140	AK45145140 Available to backorder	Housing	£80.76 £67.30
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.52 £4.60
46027301	AK46027301 Available to backorder	Bearing	£2.58 £2.15
46031830	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
46036401	AK46036401 Available to backorder	Axle Block	£2.40 £2.00
46037301	AK46037301 Available to backorder	Cover	£2.45 £2.04
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£8.16 £6.80
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46051330	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
46267440	AK46267440 Available to backorder	Wheel Cap	£7.08 £5.90
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£39.36 £32.80
46269830	AK46269830 Available to backorder	Rear Axle	£38.88 £32.40
46270002	AK46270040 Available to backorder	Connecting Rod	£36.48 £30.40
46271330	AK46271330 Available to backorder	Lever	£12.12 £10.10
46346401	AK46346401 Available to backorder	Cover	£1.32 £1.10
46346540	AK46346540 Available to backorder	Box Cover	£5.40 £4.50
46346640	AK46346640 Available to backorder	Upper Grass Box Grey	£28.08 £23.40
46346701	AK46346701 In stock	Flap	£15.00 £12.50
46346801	AK452746 Available to backorder	Lower Box	£31.80 £26.50
46348901	AK46348901 Available to backorder	Cover	£13.20 £11.00
46349040	AK46349040 Available to backorder	Plate	£10.32 £8.60
46374001	AK46374001 Available to backorder	Mulch Wedge - 46cm	£17.64 £14.70
46393740	AK46393740 Available to backorder	Cover	£2.99 £2.49
47002801	AK470028 Available to backorder	Rear Axle Casing	£25.38 £21.15
47403040	AK47403040 Available to backorder	Lower Handle	£24.24 £20.20
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
