AL-KO Premium 430 - 119285 - Main Assembly

Name: AL-KO Premium 430 - 119285 - Main Assembly
SKU: AK119285_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 430 - 119285 - Main Assembly

Description

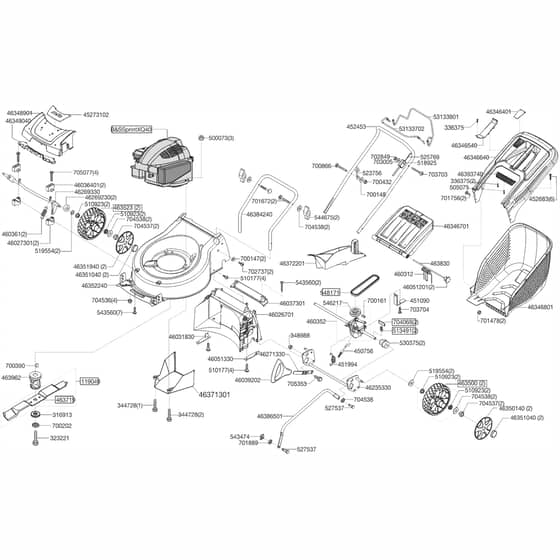

AL-KO Premium 430 - 119285 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
348988	AK692795 Available to backorder	Nut	£1.18 £0.98
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451994	AK451994 In stock	Spring	£2.47 £2.06
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
463500	AK463500 Available to backorder	Rear Drive Wheel	£23.94 £19.95
463523	AK463523 In stock	Front Wheel - 180mm	£18.26 £15.22
463719	AK463719 Available to backorder	Blade 16" / 42cm	£35.29 £29.41
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
463962	AK463962 In stock	Blade Holder - 22mm	£20.78 £17.32
500073	AK500073 In stock	Nut	£1.28 £1.07
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
527537	AK527537 In stock	Pin	£2.94 £2.45
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
548171	AK548171 Available to backorder	Toothed Belt	£21.20 £17.67
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
705353	AK705353 Available to backorder	Screw	£0.70 £0.58
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.28 £4.40
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46031830	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46037301	AK46037301 Available to backorder	Cover	£2.24 £1.87
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46051330	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
46235330	AK46235330 Available to backorder	Axle	£46.46 £38.72
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346540	AK46346540 Available to backorder	Box Cover	£4.94 £4.12
46346640	AK46346640 Available to backorder	Upper Grass Box Grey	£25.90 £21.58
46346801	AK452746 Available to backorder	Lower Box	£30.74 £25.62
46348901	AK46348901 Available to backorder	Cover	£12.72 £10.60
46349040	AK46349040 Available to backorder	Plate	£10.00 £8.33
46350140	AK46350140 Available to backorder	Wheel Cap	£2.82 £2.35
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
46351940	AK46351940 Available to backorder	Wheel Cap - 150mm	£2.32 £1.93
46352240	AK46352240 Available to backorder	Deck Housing	£94.94 £79.12
46371301	AK46371301 In stock	Belt Guard	£10.48 £8.73
46372201	AK46372201 Available to backorder	Mulch Plug	£16.12 £13.43
46384240	AK46384240 Available to backorder	Lower Handle	£23.44 £19.53
46386501	AK46386501 Available to backorder	Connecting Rod	£15.76 £13.13
46393740	AK46393740 Available to backorder	Cover	£2.74 £2.28
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
