AL-KO Premium 42 - 110979 - Deck And Drive: 3.2000 - 9.2000

Name: AL-KO Premium 42 - 110979 - Deck And Drive: 3.2000 - 9.2000
SKU: AK110979_1_3_2000_9_2000-group
Price: 0.4 GBP
Availability: InStock

Part No. AK110979_1_3_2000_9_2000-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium 42 - 110979 - Deck And Drive: 3.2000 - 9.2000

Description

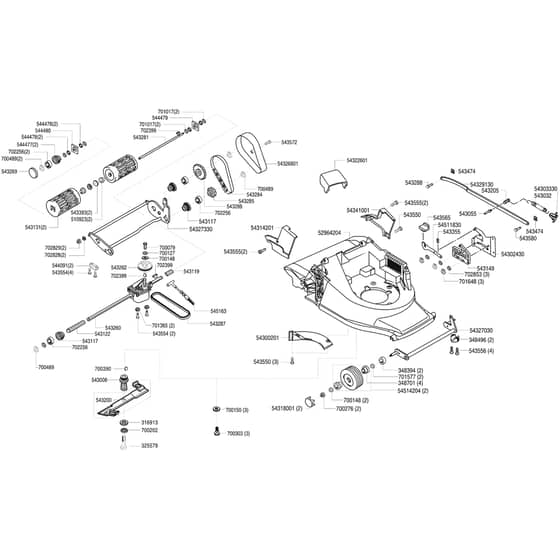

AL-KO Premium 42 - 110979 - Deck And Drive - Parts Diagram

3.2000 - 9.2000

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
325579	AK457346 In stock	Use Ak457346	£2.50 £2.08
348496	AK348496 Available to backorder	Axle Mount	£2.80 £2.33
348701	AK348701 Available to backorder	Bearing	£7.92 £6.60
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
543008	AK543008 Available to backorder	Blade Boss 22mm	£22.80 £19.00
543032	AK543032 Available to backorder	Spring	£6.96 £5.80
543117	AK543117 Available to backorder	Bearing Bush	£17.04 £14.20
543262	AK543262 Available to backorder	Pulley	£25.56 £21.30
543285	AK543285 Available to backorder	Sprocket	£34.56 £28.80
543288	AK527537 In stock	Use Ak527537	£2.95 £2.46
543355	AK543355 Available to backorder	Compression Spring	£0.89 £0.74
543393	AK543393 Available to backorder	Cap	£0.84 £0.70
543474	AK543474 In stock	Circlip	£0.88 £0.73
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
543554	AK543554 Available to backorder	Screw 22mm	£1.42 £1.18
543555	AK543555 Available to backorder	Screw 30mm	£0.82 £0.68
543556	AK543556 Available to backorder	Screw	£1.25 £1.04
543565	AK543565 Available to backorder	Bracket	£2.80 £2.33
543580	AK543580 Available to backorder	Bolt	£2.48 £2.07
544477	AK544477 Available to backorder	Bearing Bush	£18.24 £15.20
544478	AK544478 Available to backorder	Spacer	£9.00 £7.50
700079	AK700483 Available to backorder	Use Ak700483	£0.82 £0.68
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700303	AK703926 Available to backorder	Ak700303	£1.76 £1.47
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700489	AK700489 In stock	Circlip	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701365	AK701365 Available to backorder	Washer	£0.48 £0.40
701577	AK705116 Available to backorder	Use Ak705116	£0.82 £0.68
701648	AK701648 Available to backorder	Circlip	£1.42 £1.18
702256	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
702399	AK702399 Available to backorder	Key	£0.84 £0.70
702828	AK700240 Available to backorder	Use Ak700240	£1.42 £1.18
702829	AK700119 Available to backorder	Use Ak700119	£1.85 £1.54
702853	AK702853 Available to backorder	Washer M8	£0.84 £0.70
52964204	AK52964204 Available to backorder	Housing	£150.00 £125.00
54300201	AK54300201 Available to backorder	Cover	£12.00 £10.00
54322601	AK54322601 Available to backorder	Cover	£16.80 £14.00
54329130	AK54329130 Available to backorder	Height Adjust Bar	£19.32 £16.10
