AL-KO Powerline T18-102 HDS - 118746 - Cutter Deck

AL-KO Powerline T18-102 HDS - 118746 - Cutter Deck
AL-KO Powerline T18-102 HDS - 118746 - Cutter Deck

Description

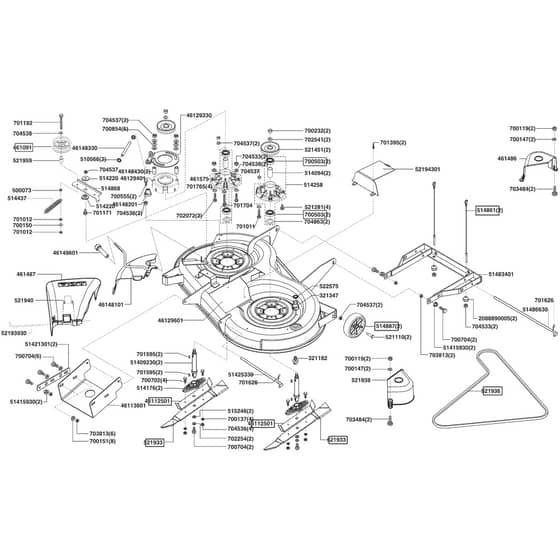

AL-KO Powerline T18-102 HDS - 118746 - Cutter Deck - Parts Diagram

Ref. Img. Part No. Details
  321182 Jet AK321182
Jet
Out of stock
£3.72 £3.10

  321347 Hose Connector AK321347
Hose Connector
Out of stock
£7.97 £6.64

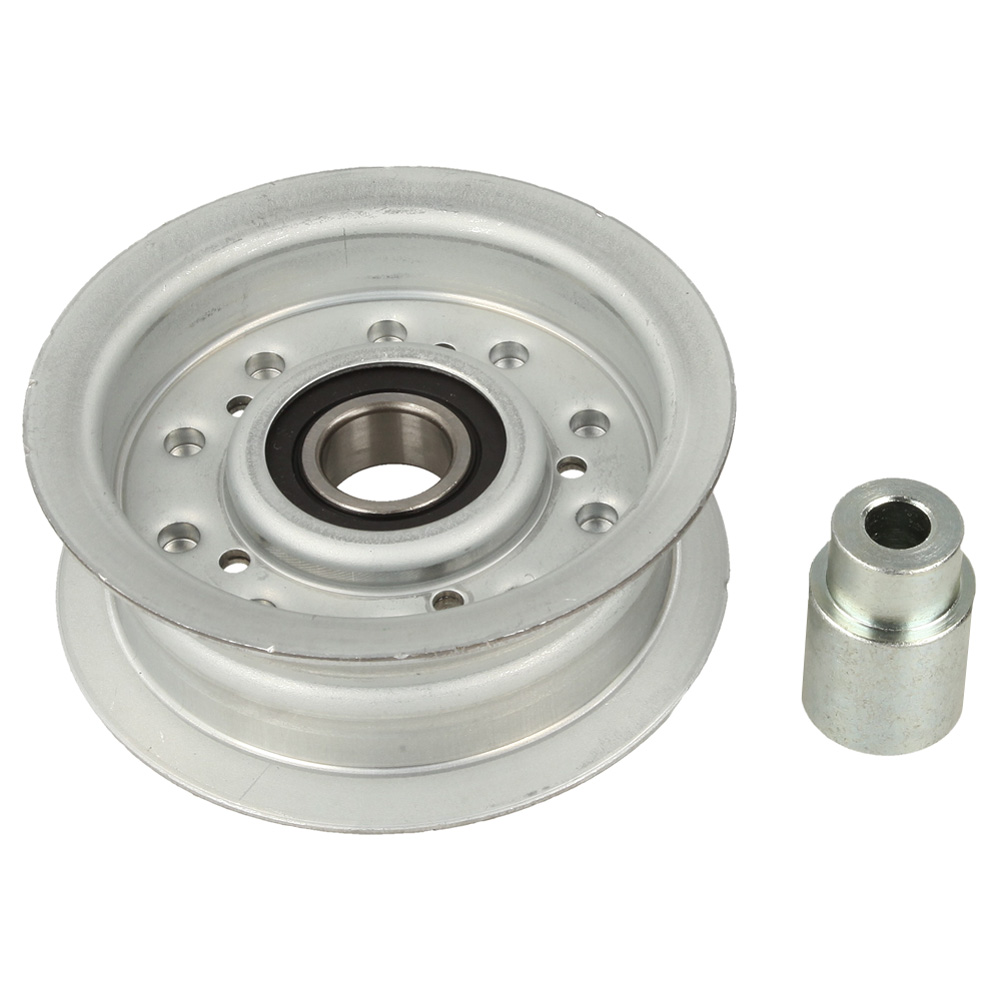

  461091 Pulley AK461091
Pulley
Out of stock
£25.79 £21.49

  461486 Belt Cover AK461486
Belt Cover
Out of stock
£18.08 £15.07

  461487 Deflector AK461487
Deflector
Out of stock
£55.22 £46.02

  461575 Use Ak452585 AK452585
Use Ak452585
Out of stock
£84.83 £70.69

  500073 Nut AK500073
Nut
Out of stock
£1.16 £0.97

  510566 Fastener 8mm AK510566
Fastener 8mm
Out of stock
£1.24 £1.03

  514094 Spacer AK514094
Spacer
Out of stock
£11.20 £9.33

  514176 Blade Boss AK514176
Blade Boss
Out of stock
£23.76 £19.80

  514220 Spacer AK514220
Spacer
Out of stock
£4.74 £3.95

  514861 Lift Cable AK514861
Lift Cable
Out of stock
£8.68 £7.23

  514868 Tensioner AK514868
Tensioner
Out of stock
£7.09 £5.91

  514887 Deck Wheel AK514887
Deck Wheel
Out of stock
£15.68 £13.07

  515246 Use Ak51524630 AK51524630
Use Ak51524630
Out of stock
£1.68 £1.40

  521110 Wheel Bolt AK521110
Wheel Bolt
Out of stock
£7.20 £6.00

  521281 Screw - Self Tapping AK458568
Screw - Self Tapping
Out of stock
£1.94 £1.62

  521451 Pulley AK521451
Pulley
Out of stock
£41.65 £34.71

  521933 Blade AK521933
Blade
Out of stock
£40.13 £33.44

  521936 Drive Belt AK521936
Drive Belt
Out of stock
£51.96 £43.30

  521938 Cover AK521938
Cover
Out of stock
£15.10 £12.58

  521940 Spring AK521940
Spring
Out of stock
£7.16 £5.97

  521959 Case AK521959
Case
Out of stock
£3.17 £2.64

  522575 O-Ring AK522575
O-Ring
Out of stock
£1.46 £1.22

  700119 Nut M5 AK700119
Nut M5
Out of stock
£1.76 £1.47

  700137 Washer M6 AK700137
Washer M6
Out of stock
£0.88 £0.73

  700147 Washer AK703451
Washer
Out of stock
£0.64 £0.53

  700150 Spacer M8 AK700150
Spacer M8
Out of stock
£0.88 £0.73

  700151 Washer M10 AK700151
Washer M10
Out of stock
£0.73 £0.61

  700232 Nut When Nil Use Ak702801 AK702801
Nut When Nil Use Ak702801
Out of stock
£3.36 £2.80

  700503 Use Ak476634 AK476634
Use Ak476634
In stock
£8.94 £7.45

  700555 Bolt AK700555
Bolt
Out of stock
£0.71 £0.59

  700702 Screw M6x25 AK700702
Screw M6x25
Out of stock
£0.88 £0.73

  700704 Screw M10x30 AK700704
Screw M10x30
Out of stock
£1.56 £1.30

  700854 Spring AK700854
Spring
Out of stock
£1.00 £0.83

  701011 Screw M8x50 AK701011
Screw M8x50
In stock
£1.46 £1.22

  701012 Nut AK701012
Nut
Out of stock
£1.15 £0.96

  701171 Screw M8x30 AK701171
Screw M8x30
Out of stock
£0.88 £0.73

  701192 Screw AK701192
Screw
Out of stock
£2.11 £1.76

  701395 Rivet AK701395
Rivet
Out of stock
£0.74 £0.62

  701595 Key AK701595
Key
In stock
£1.37 £1.14

  701626 R Clip AK701626
R Clip
Out of stock
£0.96 £0.80

  701704 Screw M8x60 AK701704
Screw M8x60
Out of stock
£1.33 £1.11

  701765 Washer M8 AK700201
Washer M8
Out of stock
£0.73 £0.61

  702072 Use Ak703926 AK703926
Use Ak703926
Out of stock
£1.69 £1.41

  702254 Washer M10 (Alt Use Ak700202) AK702254
Washer M10 (Alt Use Ak700202)
Out of stock
£1.02 £0.85

  702541 Washer M16 AK702541
Washer M16
Out of stock
£0.71 £0.59

  703484 Screw M5x16 AK703484
Screw M5x16
Out of stock
£0.71 £0.59

  703813 Nut - Check For Unf 10x1 Order Ak706018 AK703813
Nut - Check For Unf 10x1 Order Ak706018
Out of stock
£0.71 £0.59

  704533 Nut AK704533
Nut
Out of stock
£0.71 £0.59

  704536 Nut M6 AK704536
Nut M6
In stock
Was £0.88 £0.73 Special Price £0.62 £0.52

  704537 Lock Nut M8 AK704537
Lock Nut M8
Out of stock
£1.09 £0.91

  704538 Washer M8 AK704538
Washer M8
Out of stock
£0.88 £0.73

  704863 Seal AK704863
Seal
Out of stock
£3.34 £2.78

  46112501 Stiffener AK46112501
Stiffener
Out of stock
£36.52 £30.43

  46113601 Front Height Adjuster AK46113601
Front Height Adjuster
Out of stock
£34.22 £28.52

  46129330 Segment AK46129330
Segment
Out of stock
£39.31 £32.76

  46129401 Ring AK46129401
Ring
Out of stock
£58.10 £48.42

  46129601 Cutter Deck 102 cm - Side Discharge AK46129601
Cutter Deck 102 cm - Side Discharge
Out of stock
£561.55 £467.96

  46148201 Stop AK46148201
Stop
Out of stock
£7.73 £6.44

  46148330 Bolt - Pin AK46148330
Bolt - Pin
Out of stock
£6.18 £5.15

  46148430 Sleeve AK46148430
Sleeve
Out of stock
£3.18 £2.65

  51415930 Spacer AK51415930
Spacer
Out of stock
£2.54 £2.12

  51421301 Height Adjuster AK51421301
Height Adjuster
Out of stock
£12.64 £10.53

  51425330 Bar/Rod AK51425330
Bar/Rod
Out of stock
£16.24 £13.53

  51483401 Suspension Device - Rear Deck AK51483401
Suspension Device - Rear Deck
Out of stock
£54.38 £45.32

  51486630 Rod AK51486630
Rod
Out of stock
£17.92 £14.93

  52193930 Plug AK52193930
Plug
Out of stock
£8.95 £7.46

  2088890005 Use Ak468923 AK468923
Use Ak468923
Out of stock
£5.18 £4.32


Description

AL-KO Powerline T18-102 HDS - 118746 - Cutter Deck - Parts Diagram
