AL-KO Powerline T15-102 S - 118351 - Engine: from 10.2003

Description

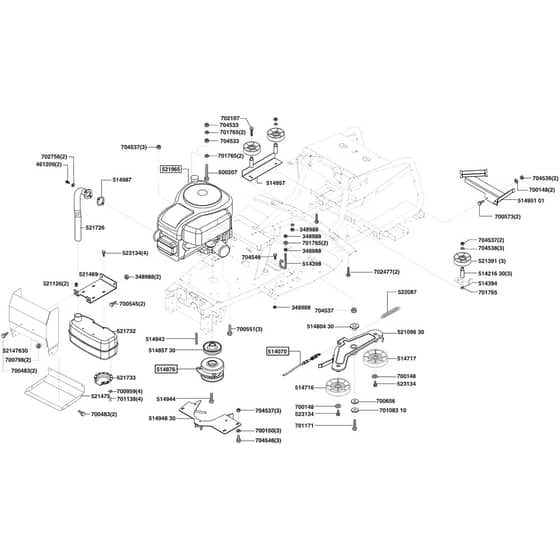

AL-KO Powerline T15-102 S - 118351 - Engine - Parts Diagram

from 10.2003

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
348988	AK692795 Available to backorder	Nut	£1.42 £1.18
461209	AK461209 Available to backorder	Screw	£1.73 £1.44
514070	AK514070 Available to backorder	Tractor Clutch Cable	£28.44 £23.70
514394	AK514394 Available to backorder	Guide	£9.84 £8.20
514398	AK514398 Available to backorder	Guide	£3.72 £3.10
514716	AK464454 In stock	Use Ak464454	£28.84 £24.03
514717	AK464455 Available to backorder	Use Ak464455	£34.68 £28.90
514876	AK464115 Available to backorder	Use Ak464115	£230.28 £191.90
514943	AK514943 Available to backorder	Key	£1.34 £1.12
514944	AK514944 Available to backorder	Bolt 75mm	£9.36 £7.80
514987	AK514987 Available to backorder	Sealing Flange Exhaust B&S	£4.92 £4.10
521391	AK464453 In stock	Use Ak464453	£20.39 £16.99
521469	AK521469 Available to backorder	Plate	£8.88 £7.40
521475	AK521475 Available to backorder	Plate	£12.12 £10.10
521726	AK521726 Available to backorder	Pipe	£32.52 £27.10
521732	AK46444510 Available to backorder	Use Ak46444510	£49.68 £41.40
521733	AK521733 Available to backorder	Deflector	£9.72 £8.10
522087	AK522087 In stock	Spring	£8.21 £6.84
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700483	AK700483 Available to backorder	Screw M6x12 Din933	£0.82 £0.68
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700551	AK703891 Available to backorder	Use Ak500071	£4.08 £3.40
700573	AK706086 Available to backorder	Use Ak706086	£0.84 £0.70
700656	AK705284 In stock	Use Ak705284	£3.88 £3.23
700798	AK700798 Available to backorder	Nut	£0.84 £0.70
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
701138	AK706592 In stock	Use Ak706592	£0.96 £0.80
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
702107	AK702107 Available to backorder	Screw	£1.86 £1.55
702477	AK702477 Available to backorder	Screw	£1.76 £1.47
702756	AK702756 Available to backorder	Tooth Lock Washer	£0.84 £0.70
704533	AK704533 Available to backorder	Nut	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
51421630	AK514216 In stock	Use Ak514216	£2.96 £2.47
51480430	AK51480430 Available to backorder	Spacer	£3.14 £2.62
51485730	AK51485730 Available to backorder	Pulley	£56.16 £46.80
51495101	AK51495101 Available to backorder	Guide	£32.16 £26.80
52109630	AK52109630 Available to backorder	Pulley Arm	£51.24 £42.70
52147630	AK521476 Available to backorder	Use Ak521476	£65.04 £54.20
70108310	AK701083 Available to backorder	Use Ak701083	£0.82 £0.68
