AL-KO Powerline T15-102 HDS - 118352 - Transmission: from 4.2004

Name: AL-KO Powerline T15-102 HDS - 118352 - Transmission: from 4.2004
SKU: AK118352_3_from_4_2004-group
Price: 0.4 GBP
Availability: InStock

Part No. AK118352_3_from_4_2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline T15-102 HDS - 118352 - Transmission: from 4.2004

Description

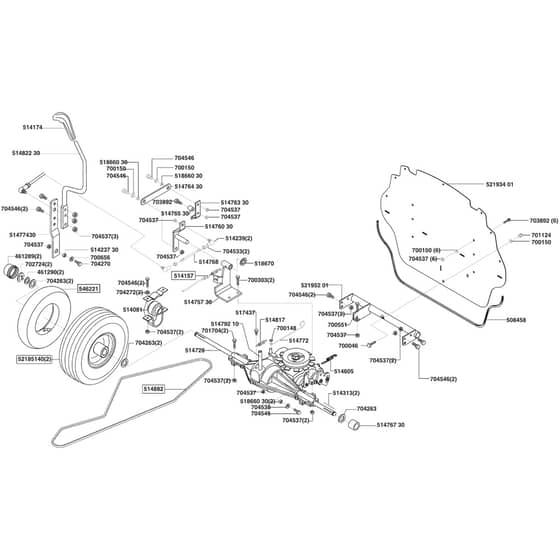

AL-KO Powerline T15-102 HDS - 118352 - Transmission - Parts Diagram

from 4.2004

	Part No.	Details
461289	AK461289 In stock	Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
514081	AK514081 Available to backorder	Bearing Assembly	£33.00 £27.50
514157	AK514157 Available to backorder	Trans Brake Cable	£33.96 £28.30
514174	AK514174 Available to backorder	Knob	£9.12 £7.60
514239	AK514239 In stock	Ball Joint	£9.46 £7.88
514313	AK514313 In stock	Key	£1.54 £1.28
514605	AK514605 Available to backorder	Return Spring	£4.80 £4.00
514768	AK514768 Available to backorder	Rod	£3.12 £2.60
514772	AK514772 Available to backorder	Bypass Bolt	£11.04 £9.20
514817	AK514817 Available to backorder	Spring	£2.59 £2.16
514882	AK514882 Available to backorder	Transmission Drive Belt	£56.64 £47.20
518670	AK518670 Available to backorder	Washer 12mm	£1.67 £1.39
546221	AK468870 Available to backorder	Use Ak546222	£34.20 £28.50
700046	AK700046 Available to backorder	Screw	£1.42 £1.18
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700303	AK703926 Available to backorder	Use Ak703926	£1.76 £1.47
700551	AK703891 Available to backorder	Use Ak500071	£4.08 £3.40
700656	AK705284 In stock	Use Ak705284	£3.88 £3.23
701124	AK701124 Available to backorder	Dome Nut M8	£0.80 £0.67
701704	AK701704 In stock	Screw M8x60	£1.58 £1.32
702724	AK702724 In stock	E-Clip	£0.48 £0.40
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704263	AK705617 Available to backorder	Use Ak705617	£1.07 £0.89
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704533	AK704533 Available to backorder	Nut	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
51423730	AK514237 Available to backorder	Use Ak514237	£1.76 £1.47
51475730	AK51475730 Available to backorder	Bearing Pedestal	£57.24 £47.70
51476030	AK51476030 Available to backorder	Reverse Transfer Lever	£33.72 £28.10
51476330	AK51476330 Available to backorder	Control Arm	£19.32 £16.10
51476430	AK51476430 Available to backorder	Bar	£4.20 £3.50
51476530	AK51476530 Available to backorder	Spacer	£6.24 £5.20
51476730	AK51476730 Available to backorder	Spacer Hydro	£6.96 £5.80
51477430	AK51477430 Available to backorder	Plate	£8.76 £7.30
51482230	AK51482230 Available to backorder	Gear-Shift Lever	£188.16 £156.80
51866030	AK51866030 Available to backorder	Sleeve	£1.63 £1.36
52185140	AK46483340 Available to backorder	Use Ak46483340	£138.48 £115.40
52193401	AK46151201 Available to backorder	Flap	£49.68 £41.40
