AL-KO Powerline T13-102 SP - 118506 - Transmission: 4.2004 - 6.2005

Name: AL-KO Powerline T13-102 SP - 118506 - Transmission: 4.2004 - 6.2005
SKU: AK118506_3_4_2004_6_2005-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline T13-102 SP - 118506 - Transmission: 4.2004 - 6.2005

Description

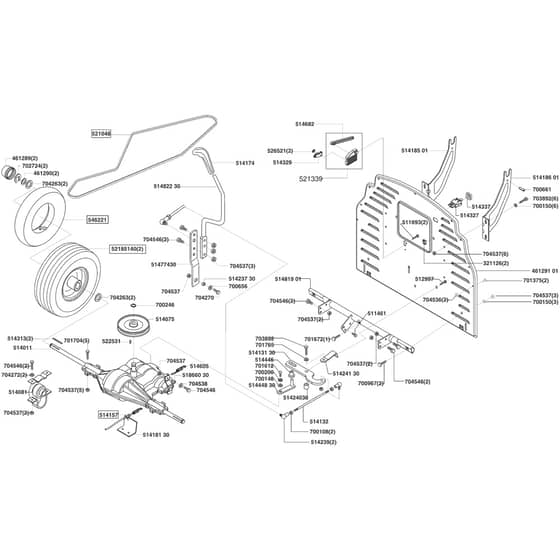

AL-KO Powerline T13-102 SP - 118506 - Transmission - Parts Diagram

4.2004 - 6.2005

Be the first to review this product

0 product questions

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
461289	AK461289 Available to backorder	Cap	£4.60 £3.83
461290	AK461290 Available to backorder	Washer	£2.08 £1.73
511461	AK511461 Available to backorder	Screw	£1.10 £0.92
511693	AK468878 Available to backorder	Use Ak468878	£0.78 £0.65
512997	AK512997 Available to backorder	Screw	£1.94 £1.62
514011	AK514011 Available to backorder	Gearbox	£751.20 £626.00
514075	AK514075 Available to backorder	Pulley	£61.06 £50.88
514081	AK514081 Available to backorder	Bearing Assembly	£31.88 £26.57
514132	AK51413230 Available to backorder	Use Ak51413230	£5.42 £4.52
514157	AK514157 Available to backorder	Trans Brake Cable	£32.28 £26.90
514174	AK514174 Available to backorder	Knob	£8.84 £7.37
514239	AK514239 Available to backorder	Ball Joint	£8.74 £7.28
514313	AK514313 In stock	Key	£1.49 £1.24
514329	AK514329 Available to backorder	Switch	£17.27 £14.39
514337	AK514337 Available to backorder	Cap	£4.60 £3.83
514446	AK51444630 Available to backorder	Use Ak51444630	£3.20 £2.67
514605	AK514605 Available to backorder	Return Spring	£4.24 £3.53
514682	AK493511 Available to backorder	Use Ak493511	£6.20 £5.17
521048	AK521048 Available to backorder	Transmission Belt	£52.70 £43.92
521339	AK521339 Available to backorder	Arm And Case Assy	£15.50 £12.92
522531	AK522531 Available to backorder	Key	£2.36 £1.97
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
546221	AK468870 Available to backorder	Use Ak546222	£33.02 £27.52
700108	AK704533 Available to backorder	Nut - M8	£0.68 £0.57
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700200	AK700200 Available to backorder	Washer	£0.68 £0.57
700246	AK700246 Available to backorder	Circlip	£1.18 £0.98
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
700661	AK700661 Available to backorder	Sleeve	£0.68 £0.57
700967	AK700967 Available to backorder	Screw	£1.18 £0.98
701375	AK701375 Available to backorder	Screw	£0.70 £0.58
701612	AK701612 Available to backorder	Screw	£2.04 £1.70
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701704	AK701704 In stock	Screw M8x60	£1.44 £1.20
701765	AK700201 Available to backorder	Washer M8	£0.77 £0.64
702724	AK702724 In stock	E-Clip	£0.37 £0.31
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
704263	AK705617 Available to backorder	Use Ak705617	£0.86 £0.72
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
46129101	AK46151301 Available to backorder	Use Ak46151301	£69.41 £57.84
51413130	AK51413130 Available to backorder	Lever	£9.16 £7.63
51418130	AK51418130 Available to backorder	Counter Roller	£2.74 £2.28
51418501	AK514185 Available to backorder	Use Ak514185	£25.22 £21.02
51418601	AK514186 Available to backorder	Use Ak514186	£25.22 £21.02
51423730	AK514237 Available to backorder	Use Ak514237	£1.62 £1.35
51424030	AK51424030 Available to backorder	Sleeve	£4.08 £3.40
51424130	AK51424130 Available to backorder	Bracket	£11.30 £9.42
51444830	AK51444830 Available to backorder	Gear Shift Lever	£8.14 £6.78
51477430	AK51477430 Available to backorder	Plate	£8.50 £7.08
51481901	AK51481901 Available to backorder	Stiffening Tube	£40.48 £33.73
51482230	AK51482230 Available to backorder	Gear-Shift Lever	£196.00 £163.33
51866030	AK51866030 Available to backorder	Sleeve	£1.36 £1.13
52185140	AK46483340 Available to backorder	Use Ak46483340	£144.22 £120.18
