AL-KO Powerline Silentec 4000 Safety - 119337 - Main Assembly

Name: AL-KO Powerline Silentec 4000 Safety - 119337 - Main Assembly
SKU: AK119337_1-group
Price: 0.34 GBP
Availability: InStock

Part No. AK119337_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline Silentec 4000 Safety - 119337 - Main Assembly

Description

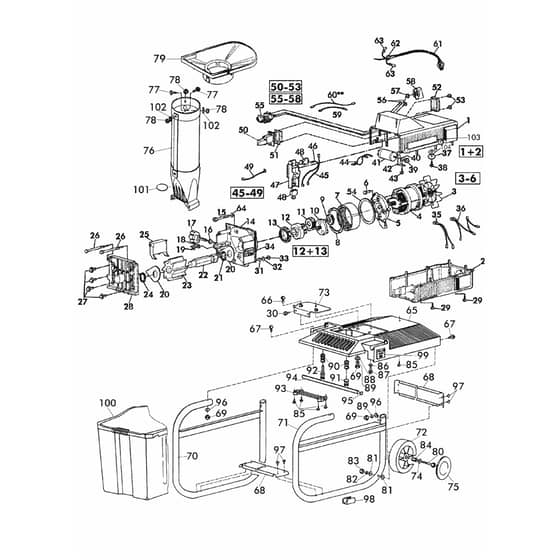

AL-KO Powerline Silentec 4000 Safety - 119337 - Main Assembly - Parts Diagram

	Part No.	Details
2935	AKB02935 Available to backorder	Sleeve Nml	£2.88 £2.40
7499	AKB07499 Available to backorder	Washer	£0.94 £0.78
9094	AKB09094 Available to backorder	Washer	£1.76 £1.47
9834	AKB09834 Available to backorder	Wiring Cable Cpl Brown /	£9.48 £7.90
9836	AKB09836 Available to backorder	Wiring Cable Cpl	£8.88 £7.40
9845	AKB09845 Available to backorder	Safety Switch	£20.52 £17.10
9848	AKB09848 Available to backorder	Wiring Red Line	£4.80 £4.00
9849	AKB09849 Available to backorder	Wiring Red Line	£5.64 £4.70
9850	AKB09850 Available to backorder	White Line Capacitor	£5.76 £4.80
9851	AKB09851 Available to backorder	Screw	£10.92 £9.10
9853	AKB09853 Available to backorder	Part	£1.42 £1.18
9854	AK704831 Available to backorder	Use Ak704831	£0.82 £0.68
9859	AKB09859 Available to backorder	Bracket Delay	£7.56 £6.30
9860	AKB09860 Available to backorder	Wiring Lead White	£5.16 £4.30
9861	AKB09861 Available to backorder	Wiring Yellow Line	£5.76 £4.80
9867	AKB09867 Available to backorder	Part	£0.84 £0.70
9868	AKB09868 Available to backorder	Washer	£0.41 £0.34
9869	AKB09869 Available to backorder	Warning	£2.18 £1.82
9875	AKB09875 Available to backorder	Part	£30.72 £25.60
9876	AKB09876 Available to backorder	Gear	£80.64 £67.20
9884	AKB09884 Available to backorder	Part	£1.66 £1.38
9885	AKB09885 Available to backorder	Compression Spring	£7.92 £6.60
9888	AKB09888 Available to backorder	O-Ring	£2.80 £2.33
9889	AKB09889 Available to backorder	Plate	£10.92 £9.10
9892	AKB09892 Available to backorder	O-Ring	£2.80 £2.33
9893	AKB09893 Available to backorder	Screw	£6.12 £5.10
9894	AKB09894 Available to backorder	Knife Housing	£68.64 £57.20
9895	AKB09895 Available to backorder	Brass Ring	£11.76 £9.80
9896	AKB09896 Available to backorder	Handwheel	£4.44 £3.70
9899	AKB0989940 Available to backorder	Use Akb0989940	£15.24 £12.70
9948	AKB09948 Available to backorder	Part	£23.04 £19.20
9949	AKB09949 Available to backorder	Part	£34.44 £28.70
9950	AKB09950 Available to backorder	Part	£47.04 £39.20
9951	AKB09951 Available to backorder	Part	£87.60 £73.00
9959	AKB09959 Available to backorder	Part	£38.28 £31.90
10042	AKB10042 Available to backorder	Selector	£29.28 £24.40
10084	AK515811 Available to backorder	Use Ak515811	£26.88 £22.40
10173	AKB10173 Available to backorder	Warning	£3.23 £2.69
10188	AKB10188 Available to backorder	Bearing	£3.36 £2.80
10189	AKB10189 Available to backorder	Shredder Box	£70.20 £58.50
10192	AKB10192 Available to backorder	Tube	£3.36 £2.80
10195	AKB10195 Available to backorder	Spring	£2.51 £2.09
10272	AKB10272 Available to backorder	End Cap	£0.41 £0.34
10391	AKB10391 Available to backorder	Chassis	£99.36 £82.80
10392	AKB10392 Available to backorder	Chassis	£102.84 £85.70
10449	AKB10449 Available to backorder	Terminal Cup	£2.80 £2.33
10543	AKB10543 Available to backorder	Angle Bracket Mounted	£28.80 £24.00
10571	AKB10571 Available to backorder	Brill Logo	£5.64 £4.70
10656	AKB10656 Available to backorder	Seal	£6.84 £5.70
10818	AKB10818 Available to backorder	S-Disc	£0.41 £0.34
10820	AK701845 Available to backorder	Use Ak701845	£0.84 £0.70
10863	AKB10863 Available to backorder	Frame Eta	£8.64 £7.20
10864	AKB10864 Available to backorder	Spray Cap	£7.32 £6.10
10865	AKB10865 Available to backorder	On-Off Push Switch	£65.76 £54.80
10865	AKB10865A Available to backorder	Nla - Eta Pressure Switch 12A Cpl.	£93.36 £77.80
11530	AK456677 Available to backorder	Roller Blades	£271.44 £226.20
11657	AKB11657 Available to backorder	Cover	£33.00 £27.50
453581	AK453581 Available to backorder	Cutterblock - Hexagonal	£43.56 £36.30
453940	AK453940 Available to backorder	Hopper Tube	£107.52 £89.60
453956	AK453956 Available to backorder	Sticker	£8.76 £7.30
700128	AK700128 Available to backorder	Washer	£1.01 £0.84
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700573	AK706086 Available to backorder	Use Ak706086	£0.84 £0.70
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
701012	AK701012 Available to backorder	Nut	£1.32 £1.10
701138	AK706592 In stock	Use Ak706592	£0.96 £0.80
701746	AK701746 Available to backorder	Screw	£1.86 £1.55
701759	AK701759 Available to backorder	Screw	£0.84 £0.70
701764	AK701764 Available to backorder	Screw	£1.42 £1.18
701765	AK700201 Available to backorder	Ak701765	£0.88 £0.73
701771	AK701771 Available to backorder	Screw	£1.66 £1.38
702478	AK702478 Available to backorder	Screw	£2.58 £2.15
704441	AK704441 Available to backorder	Screw	£1.01 £0.84
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
705045	AK705045 Available to backorder	Screw	£0.41 £0.34
860122	AKB0860122 Available to backorder	Rear Hub Cap	£1.66 £1.38
984247	AKB0984247 Available to backorder	Funnel Large	£21.96 £18.30
984701	AKB09847 Available to backorder	Use Akb09847	£7.20 £6.00
1018402	AKB1018447 Available to backorder	Use Akb1018447	£47.52 £39.60
1018602	AKB1018602 Available to backorder	Switching Pin	£3.36 £2.80
1018701	AKB1018701 Available to backorder	Tube	£20.40 £17.00
1027102	AKB1027102 Available to backorder	Bearing	£3.24 £2.70
1165322	AKB1165501 Available to backorder	Use Akb1165501	£42.60 £35.50
