AL-KO Powerline RT14-85 HD - 118301 - Cutter Deck

Name: AL-KO Powerline RT14-85 HD - 118301 - Cutter Deck
SKU: AK118301_5-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline RT14-85 HD - 118301 - Cutter Deck

Description

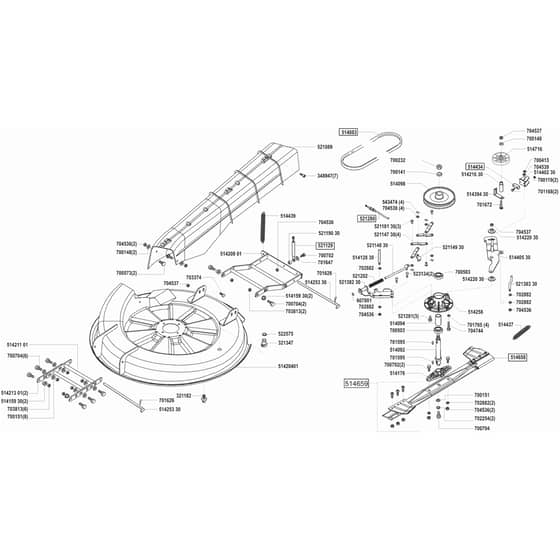

AL-KO Powerline RT14-85 HD - 118301 - Cutter Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Available to backorder	Jet	£3.55 £2.96
321347	AK321347 Available to backorder	Hose Connector	£7.70 £6.42
348947	AK470375 Available to backorder	Screw	£0.70 £0.58
514083	AK514083 Available to backorder	Belt - (Single Blade Deck)	£35.26 £29.38
514092	AK452585 In stock	Use Ak452585	£102.60 £85.50
514094	AK514094 Available to backorder	Spacer	£10.82 £9.02
514098	AK514098 Available to backorder	Pulley	£56.90 £47.42
514176	AK514176 In stock	Blade Boss	£24.16 £20.13
514434	AK514434 Available to backorder	Brake Pad	£38.66 £32.22
514658	AK514658 Available to backorder	82cm Blade	£102.98 £85.82
514659	AK514659 Available to backorder	Blade Tips - Kit (2 x Uplift Wings & Fixings)	£24.88 £20.73
514716	AK464454 Available to backorder	Use Ak464454	£30.43 £25.36
521089	AK521089 Available to backorder	Chute	£62.76 £52.30
521129	AK521129 Available to backorder	Height Adjust Cable	£30.30 £25.25
521202	AK521202 Available to backorder	Spring	£1.86 £1.55
521280	AK521280 In stock	Blade Engage Cable	£32.27 £26.89
521281	AK458568 In stock	Screw - Self Tapping	£2.03 £1.69
522575	AK522575 Available to backorder	O-Ring	£1.46 £1.22
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
543474	AK543474 In stock	Circlip	£0.78 £0.65
607801	AK607801 Available to backorder	Washer	£0.68 £0.57
700119	AK700119 Available to backorder	Nut M5	£1.86 £1.55
700141	AK702541 Available to backorder	Use Ak702541	£0.68 £0.57
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700151	AK700151 Available to backorder	Washer M10	£0.70 £0.58
700232	AK702801 Available to backorder	Nut When Nil Use Ak702801	£3.24 £2.70
700413	AK700413 Available to backorder	Circlip	£1.44 £1.20
700503	AK476634 Available to backorder	Use Ak476634	£9.89 £8.24
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
700702	AK700702 In stock	Screw M6x25	£0.91 £0.76
700704	AK700704 Available to backorder	Screw M10x30	£1.50 £1.25
701168	AK701745 Available to backorder	Screw	£1.36 £1.13
701595	AK701595 In stock	Key	£1.28 £1.07
701626	AK701626 Available to backorder	R Clip	£1.04 £0.87
701647	AK701647 Available to backorder	Washer	£0.68 £0.57
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701765	AK700201 Available to backorder	Washer M8	£0.77 £0.64
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£0.98 £0.82
702882	AK700137 In stock	Use Ak700137	£0.97 £0.81
703374	AK700963 Available to backorder	Use Ak700963	£1.10 £0.92
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704539	AK704539 Available to backorder	Washer	£0.70 £0.58
704744	AK704744 Available to backorder	Screw	£1.36 £1.13
51412830	AK51412830 Available to backorder	Bar	£7.24 £6.03
51415930	AK51415930 Available to backorder	Spacer	£2.46 £2.05
51420401	AK51420401 Available to backorder	Cutter Deck 82cm	£382.80 £319.00
51420801	AK51420801 Available to backorder	Rear Height Adjuster	£44.12 £36.77
51421101	AK46113601 Available to backorder	Use Ak46113601	£33.08 £27.57
51421301	AK51421301 Available to backorder	Height Adjuster	£12.20 £10.17
51421630	AK514216 Available to backorder	Use Ak514216	£2.72 £2.27
51422030	AK514220 Available to backorder	Use Ak514220	£4.58 £3.82
51425330	AK51425330 Available to backorder	Bar/Rod	£16.18 £13.48
51439430	AK514394 Available to backorder	Use Ak514394	£9.50 £7.92
51440230	AK51440230 Available to backorder	Bracket	£7.12 £5.93
51440530	AK51440530 Available to backorder	Bracket	£39.86 £33.22
52114730	AK521147 Available to backorder	Use Ak521147	£2.56 £2.13
52114930	AK52114930 Available to backorder	Bracket	£4.08 £3.40
52118130	AK52118130 Available to backorder	Pin	£5.06 £4.22
52119030	AK52119030 Available to backorder	Case	£17.60 £14.67
52138230	AK52138230 Available to backorder	Plate	£61.28 £51.07
52138330	AK52138330 Available to backorder	Belt Guide	£45.50 £37.92
