AL-KO Powerline RT14-85 HD - 117997 - Grass Box: 2.2001 - 8.2001

Name: AL-KO Powerline RT14-85 HD - 117997 - Grass Box: 2.2001 - 8.2001
SKU: AK117997_7_2_2001_8_2001-group
Price: 0.68 GBP
Availability: InStock

Part No. AK117997_7_2_2001_8_2001-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline RT14-85 HD - 117997 - Grass Box: 2.2001 - 8.2001

Description

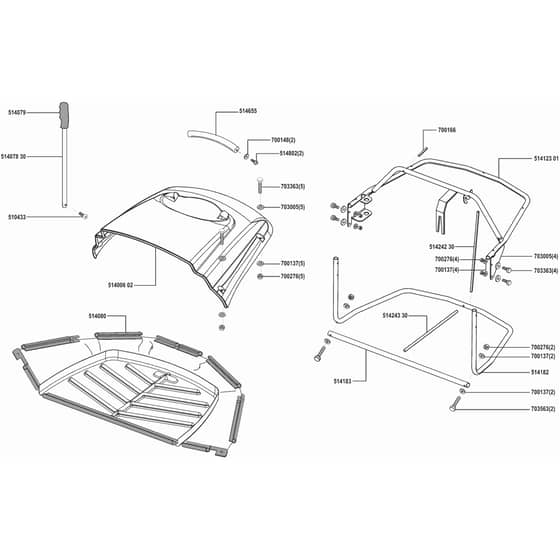

AL-KO Powerline RT14-85 HD - 117997 - Grass Box - Parts Diagram

2.2001 - 8.2001

	Part No.	Details
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
514079	AK514079 Available to backorder	Grip	£8.64 £7.20
514080	AK514080 Available to backorder	Grassbox Bottom	£88.68 £73.90
514182	AK514182 Available to backorder	Rear Frame	£27.60 £23.00
514183	AK514183 In stock	Bar	£14.16 £11.80
514655	AK514655 Available to backorder	Handle	£8.64 £7.20
514802	AK470375 Available to backorder	Bolt	£0.86 £0.72
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700166	AK700166 Available to backorder	Pin	£1.46 £1.22
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
51400602	AK51400602 Available to backorder	Red Box Cover	£87.60 £73.00
51407830	AK51407830 Available to backorder	Lever	£14.28 £11.90
51412301	AK51412301 Available to backorder	Upper Box Pipe	£84.24 £70.20
51424330	AK51424330 Available to backorder	Bar	£7.56 £6.30
