AL-KO Powerline RT14-85 - 118424 - Transmission

Name: AL-KO Powerline RT14-85 - 118424 - Transmission
SKU: AK118424_3-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline RT14-85 - 118424 - Transmission

Description

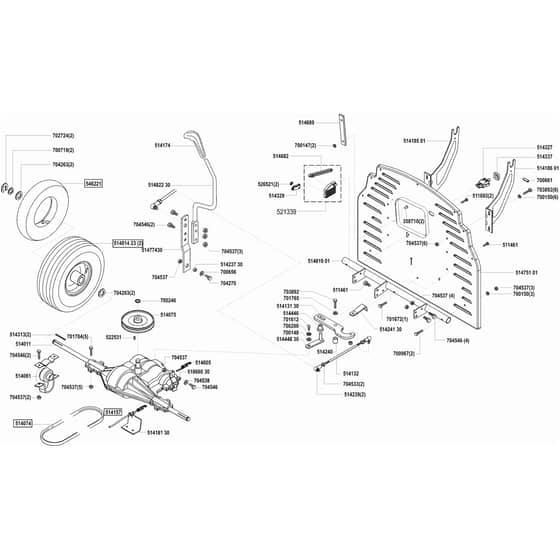

AL-KO Powerline RT14-85 - 118424 - Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
358710	AK358710	Rivet	Out of stock	£0.83 £0.69
511461	AK511461	Screw	Out of stock	£1.14 £0.95
511693	AK468878	Use Ak468878	Out of stock	£0.71 £0.59
514011	AK514011	Gearbox	Out of stock	£971.98 £809.98
514074	AK514074	Transmission Belt (A108)	Out of stock	£47.84 £39.87
514075	AK514075	Pulley	Out of stock	£63.17 £52.64
514081	AK514081	Bearing Assembly	Out of stock	£32.99 £27.49
514132	AK51413230	Use Ak51413230	Out of stock	£5.60 £4.67
514157	AK514157	Trans Brake Cable	Out of stock	£33.40 £27.83
514174	AK514174	Knob	Out of stock	£9.14 £7.62
514239	AK514239	Ball Joint	In stock	£9.00 £7.50
514240	AK51424030	Use Ak51424030	Out of stock	£4.24 £3.53
514313	AK514313	Key	Out of stock	£1.22 £1.02
514327	AK514327	Pressure Switch - (Grey Type)	Out of stock	£21.82 £18.18
514329	AK514329	Switch	Out of stock	£15.67 £13.06
514337	AK514337	Cap	Out of stock	£4.76 £3.97
514446	AK51444630	Use Ak51444630	Out of stock	£3.32 £2.77
514605	AK514605	Return Spring	Out of stock	£4.39 £3.66
514682	AK493511	Use Ak493511	Out of stock	£6.52 £5.43
514689	AK514689	Flap	Out of stock	£2.98 £2.48
521339	AK521339	Arm And Case Assy	Out of stock	£15.23 £12.69
522531	AK522531	Key	Out of stock	£2.45 £2.04
526521	AK526521	Push Fix 2.5mm	Out of stock	£0.73 £0.61
546221	AK468870	Use Ak546222	Out of stock	£34.16 £28.47
700147	AK703451	Washer	Out of stock	£0.64 £0.53
700150	AK700150	Spacer M8	Out of stock	£0.88 £0.73
700200	AK700200	Washer	Out of stock	£0.71 £0.59
700246	AK700246	Circlip	Out of stock	£1.24 £1.03
700656	AK705284	Use Ak705284	Out of stock	£34.26 £28.55
700661	AK700661	Sleeve	Out of stock	£0.71 £0.59
700719	AK700719	Washer 22mm	Out of stock	£1.58 £1.32
700967	AK700967	Screw	Out of stock	£1.24 £1.03
701612	AK701612	Screw	Out of stock	£2.11 £1.76
701672	AK701672	Screw M8x45	Out of stock	£1.39 £1.16
701704	AK701704	Screw M8x60	Out of stock	£1.33 £1.11
701765	AK700201	Washer M8	Out of stock	£0.73 £0.61
702724	AK702724	E-Clip	Out of stock	£0.88 £0.73
703892	AK703892	Screw	Out of stock	£3.06 £2.55
704263	AK705617	Use Ak705617	Out of stock	£0.88 £0.73
704270	AK704270	Screw M8x25	Out of stock	£0.88 £0.73
704533	AK704533	Nut	Out of stock	£0.71 £0.59
704537	AK704537	Lock Nut M8	Out of stock	£1.09 £0.91
704538	AK704538	Washer M8	Out of stock	£0.88 £0.73
704546	AK704546	Screw M8x20	Out of stock	£0.71 £0.59
51401423	AK46483340	Use Ak46483340	Out of stock	£149.20 £124.33
51413130	AK51413130	Lever	Out of stock	£9.49 £7.91
51418130	AK51418130	Counter Roller	Out of stock	£2.83 £2.36
51418501	AK514185	Use Ak514185	Out of stock	£26.09 £21.74
51418601	AK514186	Use Ak514186	Out of stock	£26.09 £21.74
51423730	AK514237	Use Ak514237	Out of stock	£1.68 £1.40
51424130	AK51424130	Bracket	Out of stock	£11.69 £9.74
51444830	AK51444830	Gear Shift Lever	Out of stock	£8.44 £7.03
51475101	AK46150901	Use Ak46150901	Out of stock	£65.83 £54.86
51477430	AK51477430	Plate	Out of stock	£8.80 £7.33
51481901	AK51481901	Stiffening Tube	Out of stock	£41.87 £34.89
51482230	AK51482230	Gear-Shift Lever	Out of stock	£202.76 £168.97
51866030	AK51866030	Sleeve	Out of stock	£1.40 £1.17
