AL-KO Powerline 9-55 - 118482 - Chassis And Cutterdeck

AL-KO Powerline 9-55 - 118482 - Chassis And Cutterdeck
AL-KO Powerline 9-55 - 118482 - Chassis And Cutterdeck

Description

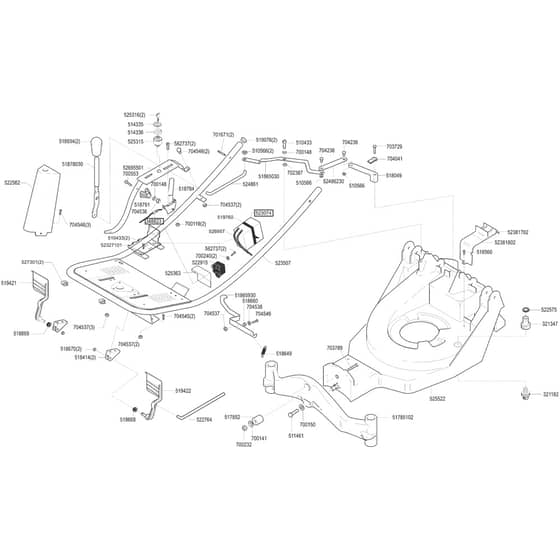

AL-KO Powerline 9-55 - 118482 - Chassis And Cutterdeck - Parts Diagram

Ref. Img. Part No. Details
  321182 Jet
Jet
AK321182 Out of stock
Jet
£3.56 £2.97

  321347 Hose Connector
Hose Connector
AK321347 Out of stock
Hose Connector
£7.97 £6.64

  348823 Throttle Cable
Throttle Cable
AK348823 Out of stock
Throttle Cable
£18.43 £15.36

  510433 Allen Screw 6x12
Allen Screw 6x12
AK510433 Out of stock
Allen Screw 6x12
£1.43 £1.19

  510566 Fastener 8mm
Fastener 8mm
AK510566 Out of stock
Fastener 8mm
£1.24 £1.03

  511461 Screw
Screw
AK511461 Out of stock
Screw
£1.14 £0.95

  514335 Ignition Lock Nut
Ignition Lock Nut
AK514335 Out of stock
Ignition Lock Nut
£2.94 £2.45

  514336 Spacer
Spacer
AK514336 Out of stock
Spacer
£5.24 £4.37

  517852 Use Ak51785230
Use Ak51785230
AK51785230 Out of stock
Use Ak51785230
£2.98 £2.48

  518049 Lever
Lever
AK518049 Out of stock
Lever
£7.92 £6.60

  518414 Mount
Mount
AK518414 Out of stock
Mount
£5.26 £4.38

  518560 Screw M4x16
Screw M4x16
AK518560 Out of stock
Screw M4x16
£0.73 £0.61

  518660 Use Ak51866030
Use Ak51866030
AK51866030 Out of stock
Use Ak51866030
£1.40 £1.17

  518668 Use Ak518669
Use Ak518669
AK518669 Out of stock
Use Ak518669
£3.18 £2.65

  518670 Washer 12mm
Washer 12mm
AK518670 Out of stock
Washer 12mm
£1.56 £1.30

  518784 Lever
Lever
AK518784 Out of stock
Lever
£16.70 £13.92

  519076 Plug - 3.0cm
Plug - 3.0cm
AK519076 Out of stock
Plug - 3.0cm
£1.13 £0.94

  519421 Use Ak51841201
Use Ak51841201
AK51841201 Out of stock
Use Ak51841201
£28.25 £23.54

  522575 O-Ring
O-Ring
AK522575 Out of stock
O-Ring
£1.25 £1.04

  523507 Frame
Frame
AK523507 Out of stock
Frame
£249.00 £207.50

  525315 Ignition Switch
Ignition Switch
AK525315 In stock
Ignition Switch
£30.77 £25.64

  525316 Ignition Key - Delta Type
Ignition Key - Delta Type
AK525316 Out of stock
Ignition Key - Delta Type
£5.04 £4.20

  700119 Nut M5
Nut M5
AK700119 Out of stock
Nut M5
£1.76 £1.47

  700141 Use Ak702541
Use Ak702541
AK702541 Out of stock
Use Ak702541
£0.71 £0.59

  700150 Spacer M8
Spacer M8
AK700150 Out of stock
Spacer M8
£0.88 £0.73

  700232 Nut When Nil Use Ak702801
Nut When Nil Use Ak702801
AK702801 Out of stock
Nut When Nil Use Ak702801
£3.36 £2.80

  700240 Washer M5
Washer M5
AK700240 Out of stock
Washer M5
£1.24 £1.03

  700553 Screw M6x40
Screw M6x40
AK700553 Out of stock
Screw M6x40
£0.71 £0.59

  701671 Pin
Pin
AK701671 Out of stock
Pin
£1.58 £1.32

  702387 Washer M10
Washer M10
AK702387 Out of stock
Washer M10
£0.73 £0.61

  703729 Screw
Screw
AK703729 Out of stock
Screw
£1.76 £1.47

  703789 Screw
Screw
AK703789 Out of stock
Screw
£4.58 £3.82

  704041 Washer
Washer
AK704041 Out of stock
Washer
£0.73 £0.61

  704536 Nut M6
Nut M6
AK704536 In stock
Nut M6
Was £0.88 £0.73 Special Price £0.62 £0.52

  704537 Lock Nut M8
Lock Nut M8
AK704537 Out of stock
Lock Nut M8
£1.09 £0.91

  704538 Washer M8
Washer M8
AK704538 Out of stock
Washer M8
£0.88 £0.73

  704545 Screw M8x25
Screw M8x25
AK704545 Out of stock
Screw M8x25
£0.71 £0.59

  704546 Screw M8x20
Screw M8x20
AK704546 Out of stock
Screw M8x20
£0.71 £0.59

  52381802 Cover
Cover
AK52381802 Out of stock
Cover
£24.31 £20.26


Description

AL-KO Powerline 9-55 - 118482 - Chassis And Cutterdeck - Parts Diagram
